Tractor · 2002Unverified

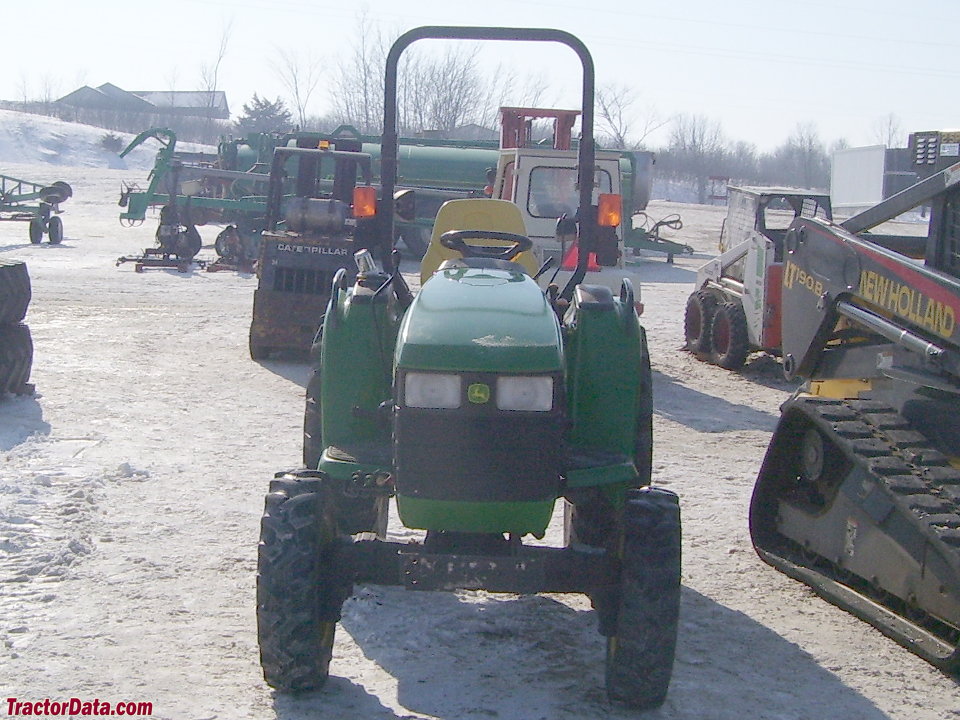

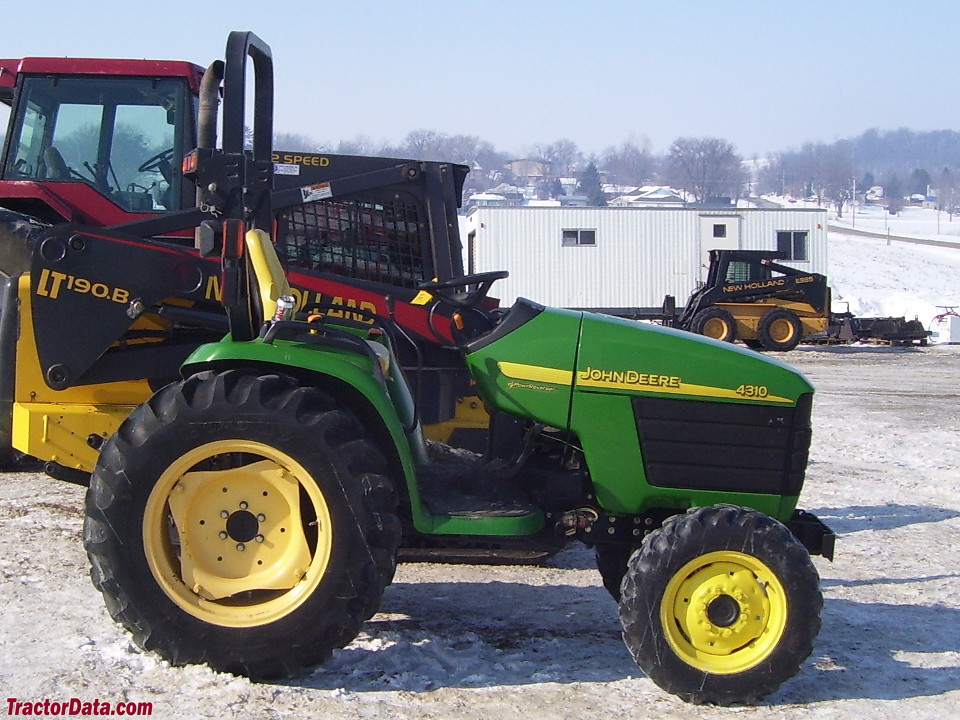

John Deere 4310
John Deere 4310 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2600 to 2900 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Two-post fixed ROPS. Two-post folding ROPS optional.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine (gross)23.3 kWReference
Yanmar 3TNE84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power (gross)23.3 kWReference
Air cleanerdryReference
Compression18.5:1Reference
Rated RPM2600Reference
Idle RPM1000-2810Reference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity4.3 LReference
Coolant capacity5.7 LReference
Transmission
9-speed partially synchronizedReference
hydrostaticReference
12-speed power shuttleReference
TransmissionSyncShiftReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity23.8 LReference
Three gears (1-3) plus reverse in three ranges (A-C). Gears can be shifted on the move using the clutch. Tractor must be stopped to shift ranges.Reference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity25.7 LReference
Three-range hydrostatic transmission with foot pedals and cruise control. Tractor must be stopped to shift ranges. Automotive cruise control option allows set speed to be adjusted with rocker switch. SpeedMatch option allows a maximum speed to be set and full pedal travel used to achive that speed. LoadMatch option prevents the tractor from stalling during heavy loads. The MotionMatch option enables the acceleration rate to be set to fast or slow.Reference
TransmissionePowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (A-C) with reverser lever. Gears are synchronized and may be shifted on the move using the clutch. Tractor must be stopped to shift ranges. Forward/reverse direction changes may be done on the move, without the clutch, by using the reverser lever.Reference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Hydraulic system23.8 LReference
Hydraulic system25.7 LReference
Typeopen centerReference
Capacity23.8 LReference
Capacity25.7 LReference
Pressure172.4 barReference
Valves5Reference
Pump flow32.6 lpmReference
Total flow52.6 lpmReference
Steering flow20.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)997 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Capacities
Fuel37.9 LReference
Front axle4.4 LReference
Dimensions
Wheelbase172 cmReference
Weight2600 to 2900 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Weight688 kgReference
Ag front5.00-15 (2WD)Reference
Ag front7.00-14 (4WD)Reference
Ag rear11.2-24Reference
Length297 cmReference
Width127 cmReference
Ground clearance34 cmReference
2WD1179 kgReference
4WD1315 kgReference
Max Drawbar254 kgReference
Max front axle720 kgReference
Max rear axle2000 kgReference
John Deere 4310 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
4310 Serial Number Location
On right side of tractor frame above the front axle.Reference
4310 Serial Numbers
2002130001Reference
2003230001Reference
2004330001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging amps55 (optional)Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
John Deere 420 loaderReference
John Deere 430 loaderReference
BackhoeReference
John Deere 48 Backhoe
Backhoe typeJohn Deere 48 BackhoeReference
Transport height205 cmReference
2-Foot flat digging depth259 cmReference
Reach from pivot337 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
John Deere 4310 Height
Hood135 cmReference
ROPS209 cmReference
ROPS228 cmReference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
