Tractor · 1985Unverified

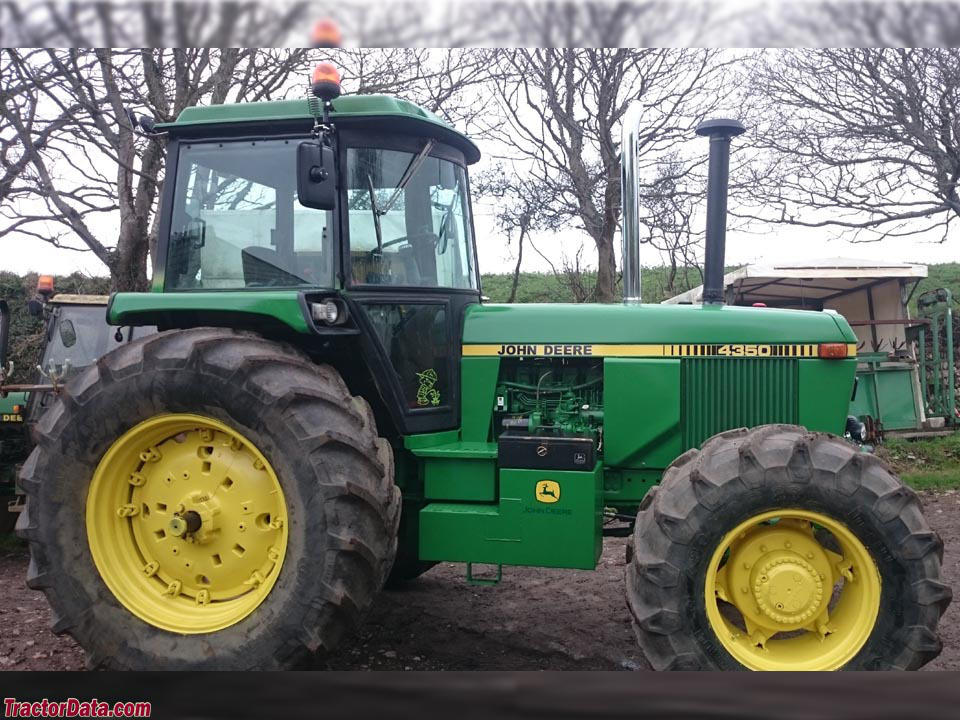

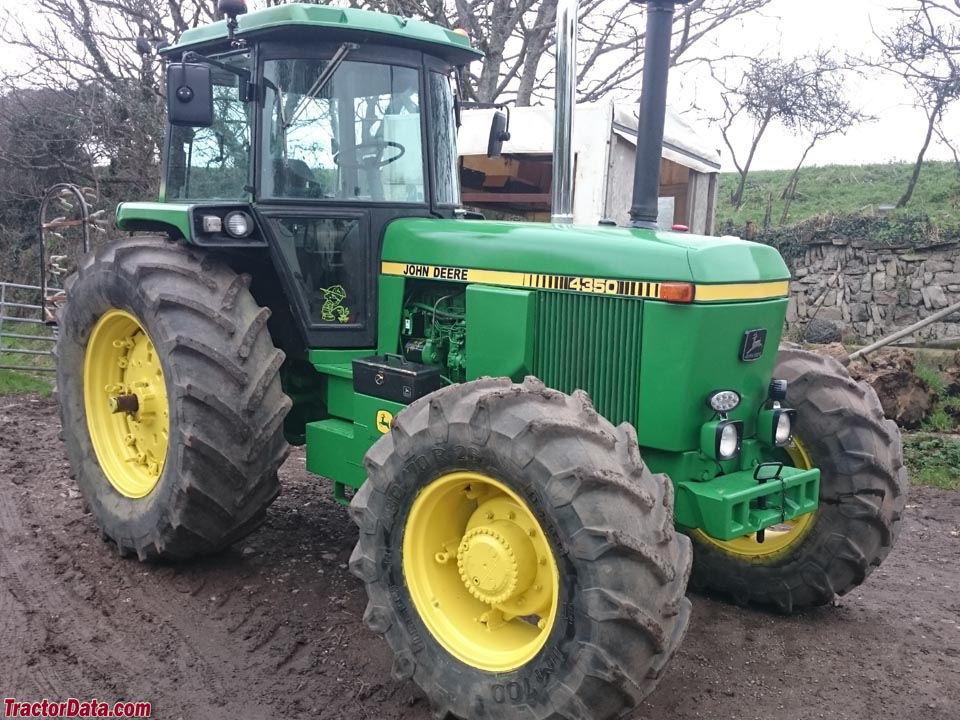

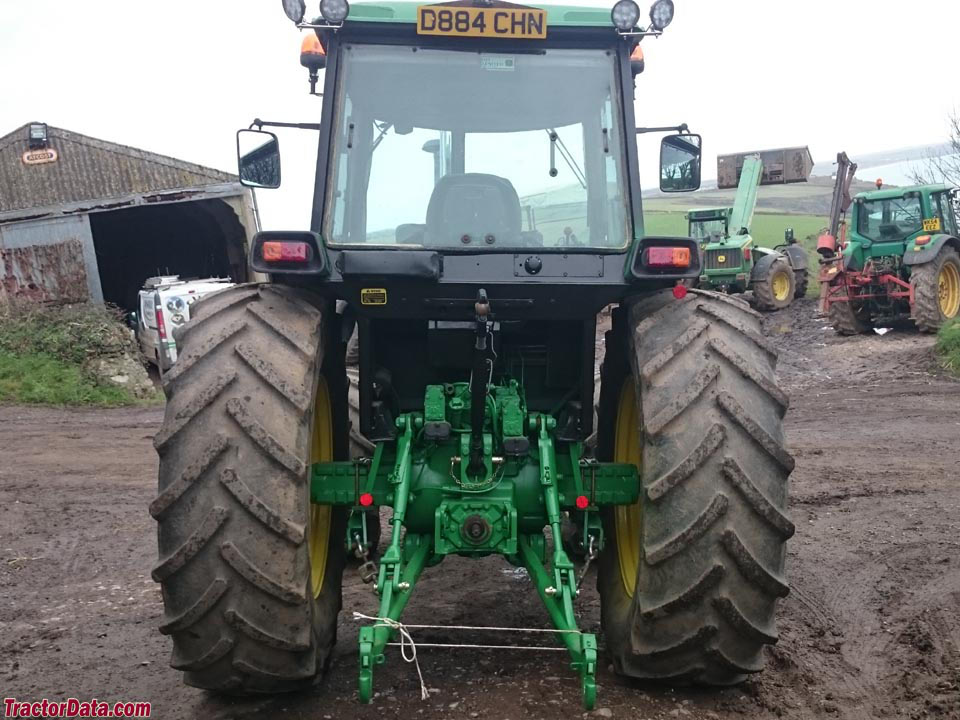

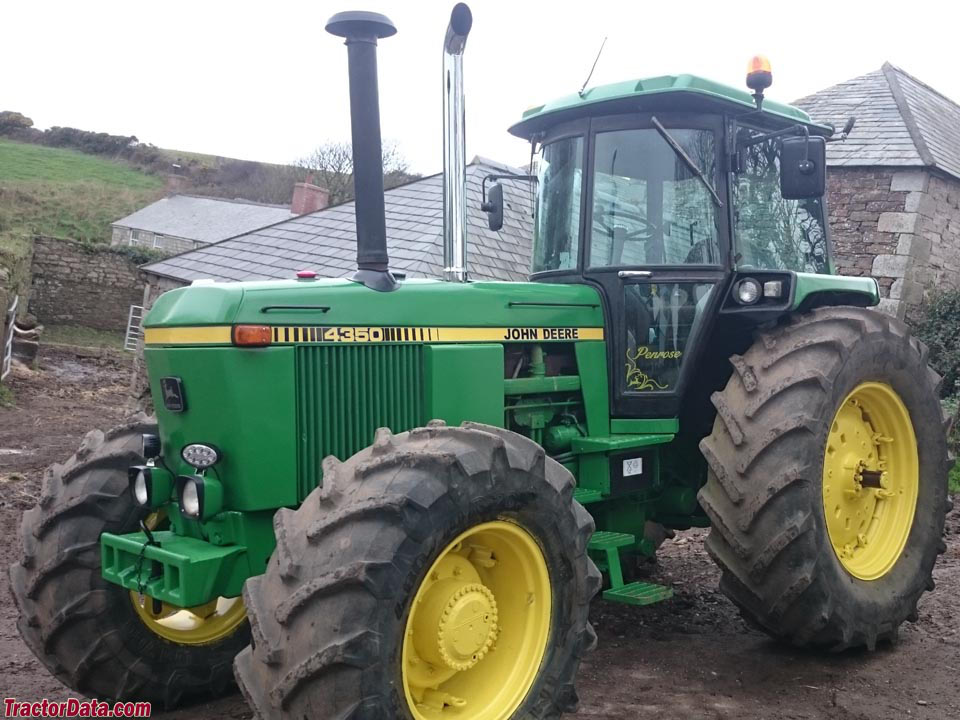

John Deere 4350
John Deere 4350 — Row-Crop tractor · 138 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
138 hp
Weight
6390 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
SG2 Cab standard with air-conditioning.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Engine102.9 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power102.9 kWReference
Compression16.8:1Reference
Rated RPM2200Reference
Torque600.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power4.4 kWReference
Transmission
16-speed partial power shiftReference
TransmissionJohn Deere Quad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
Four gears (1-4) in four ranges (A-D). Power shift between gear pairs 1-2 and 3-4 in each range. Synchronized shift between gears 2 and 3.Reference
PTO & Hydraulics
Typeclosed centerReference
Pressure172.1 barReference
Valves2 or 3Reference
Pump flow96.1 lpmReference
Rear TypeIIIN/IIReference
Controlposition and lower-link draft controlReference
Rear lift6025 kgReference
Rear Armstelecopic lower linksReference
Rear Armsquick hitchReference
Rear PTOindependentReference
Clutchhydraulic discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase267 cmReference
Weight6390 kgReference
Front tire16.9-28Reference
Rear tire20.8-38Reference
Ag front16.9-28Reference
Ag rear20.8-38Reference
Ag front18.4-26Reference
Length466 cmReference
Width243 cmReference
Height (cab)291 cmReference
Height (exhaust)315 cmReference
Shipping weight6390 kgReference
Front tread160 to 214 cmReference
Rear tread159 to 234 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
