Industrial Tractor · 1994Unverified

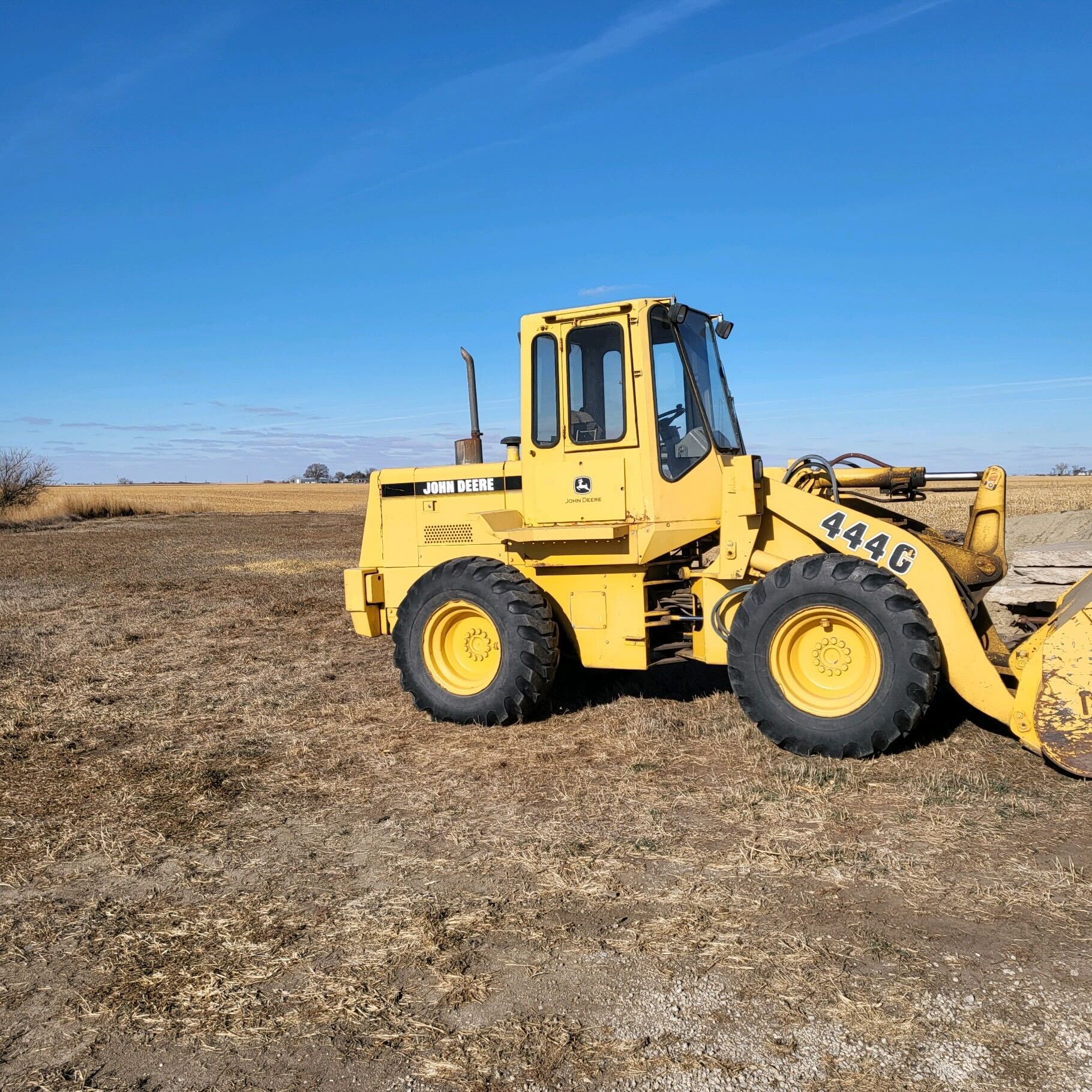

John Deere 444G
John Deere 444G — Wheel Loader · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
9391 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Wheel LoaderReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS canopy. Cab available with optional air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank140.0 LReference
Engine (gross)79.0 kWReference
Engine (net)74.6 kWReference
John Deere 4045TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power (net)74.6 kWReference
Power (gross)79.0 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque374.3 NmReference
Torque RPM1250Reference
StarterelectricReference
Starter volts24Reference
Oil capacity13.2 LReference
Coolant capacity30.3 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Hydrostatic transmission with two-range power shift.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure215.8 barReference
Pump flow136.3 lpmReference
Dimensions
Wheelbase264 cmReference
Weight9391 kgReference
Front tire15.5-25Reference
Rear tire15.5-25Reference
Industrial front15.5-25Reference
Industrial rear15.5-25Reference
Industrial front17.5-25Reference
Industrial rear17.5-25Reference
Length651 cmReference
Width231 cmReference
Height (cab)314 cmReference
Height (exhaust)302 cmReference
Operating weight9391 kgReference
Front tread184 cmReference
Rear tread184 cmReference
John Deere 444G attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
