Tractor · 1988Unverified

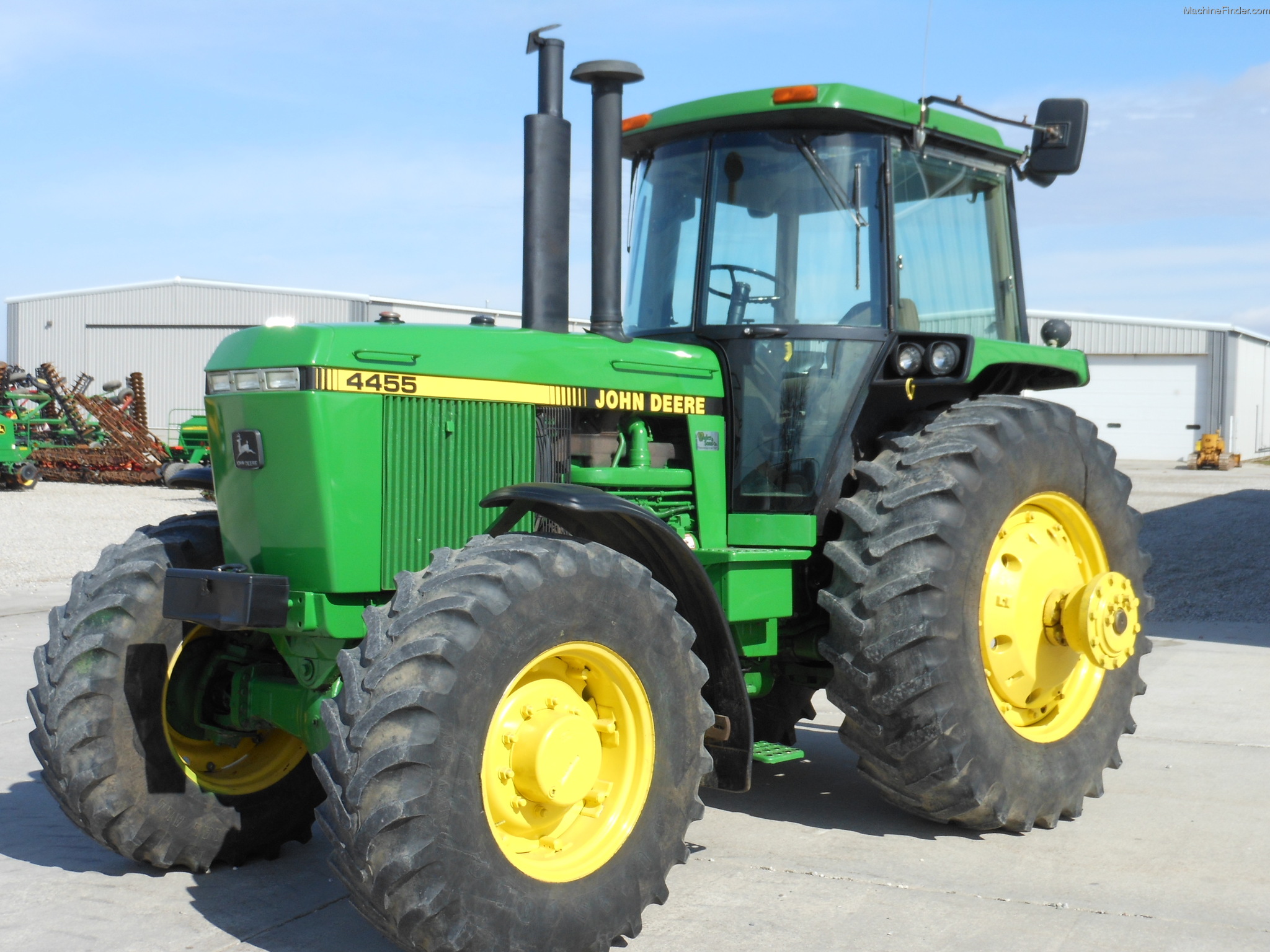

John Deere 4455
John Deere 4455 — Row-Crop tractor · 157 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
157 hp
Max power
109.5 kW
Weight
14145 to 15275 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
FactoriesWaterloo, Iowa, USAReference
FactoriesSaltillo, MexicoReference
Original price was $60,000 in 1992Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Sound Guard cab standard. Four-post ROPS on Mexican-built models.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Engine (net)117.0 kWReference
Drawbar (tested)95.9 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power (net)117.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM800-2400Reference
Operating RPM1500-2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity25.6 LReference
Intake valve clearance0.508 mmReference
Exhaust valve clearance0.508 mmReference
Oil capacity18.0 LReference
Max power109.5 kWReference
Power at rated engine speed105.6 kWReference
Max power91.4 kWReference
Max power110.5 kWReference
Power at rated engine speed106.4 kWReference
Max power95.9 kWReference
Transmission
16-speed partial power shiftReference
15-speed full power shiftReference
TransmissionJohn Deere Quad RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
Clutchhydraulic wet discReference
2WD Oil capacity60.6 LReference
4WD Oil capacity65.1 LReference
Four gears (1-4) in four ranges (A-D) with high-low power shift.Reference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
2WD Oil capacity51.0 LReference
4WD Oil capacity60.0 LReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)110.5 kWReference
Hydraulic system51.1 LReference
Hydraulic system60.2 LReference
Hydraulic system60.6 LReference
Hydraulic system65.1 LReference
Typeclosed centerReference
Capacity51.1 LReference
Capacity60.2 LReference
Capacity60.6 LReference
Capacity65.1 LReference
Pressure174.4 barReference
Valves2 or 3Reference
Pump flow100.3 lpmReference
SCV flow78.0 lpmReference
Rear TypeIIIN/IIReference
Rear lift2496 kgReference
Rear lift3302 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel246.0 LReference
Dimensions
2WD Wheelbase271 cmReference
4WD Wheelbase267 cmReference
Weight14145 to 15275 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 14.9-26. Rear: 18.4-38Reference
Length402 cmReference
Width276 cmReference
Height (steering wheel)235 cmReference
Height (cab)295 cmReference
Shipping weight6416 kgReference
Operating weight6928 kgReference
Rack-and-pinion rear axle92 by 2768 mmReference
Rack-and-pinion rear axle92 by 3022 mmReference
Front tread153 to 223 cmReference
Rear tread157 to 294 cmReference
John Deere 4455 attachments
front-end loaderReference
4455 Serial Number Location
Serial number plate on the rear of the 4455, above the PTO shaft.Reference
4455 Serial Numbers
19891001Reference
19905001Reference
199110001Reference
199220001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Attachment overview
John Deere 158 loaderReference
John Deere 265 loaderReference
John Deere 280 loaderReference
John Deere 840 loaderReference
Test results
OECD 1619: diesel Powershift 4WDReference
OECD 1628: diesel Quad-Range 2WDReference
Diesel Powershift 4WDApril 1, 1989 - May 1, 1979Link: OCED Tractor Test 1619 fileReference
PTO performanceReference
Fuel use30.7 l/hourReference
Fuel use31.8 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Max pull7913 kgReference
Gear 3 used for pull test.Reference
Diesel Quad-Range 2WDSeptember 1 - October 1, 1989Link: OCED Tractor Test 1628 fileReference
Fuel use31.0 l/hourReference
Max pull7784 kgReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
