Tractor · 1998Unverified

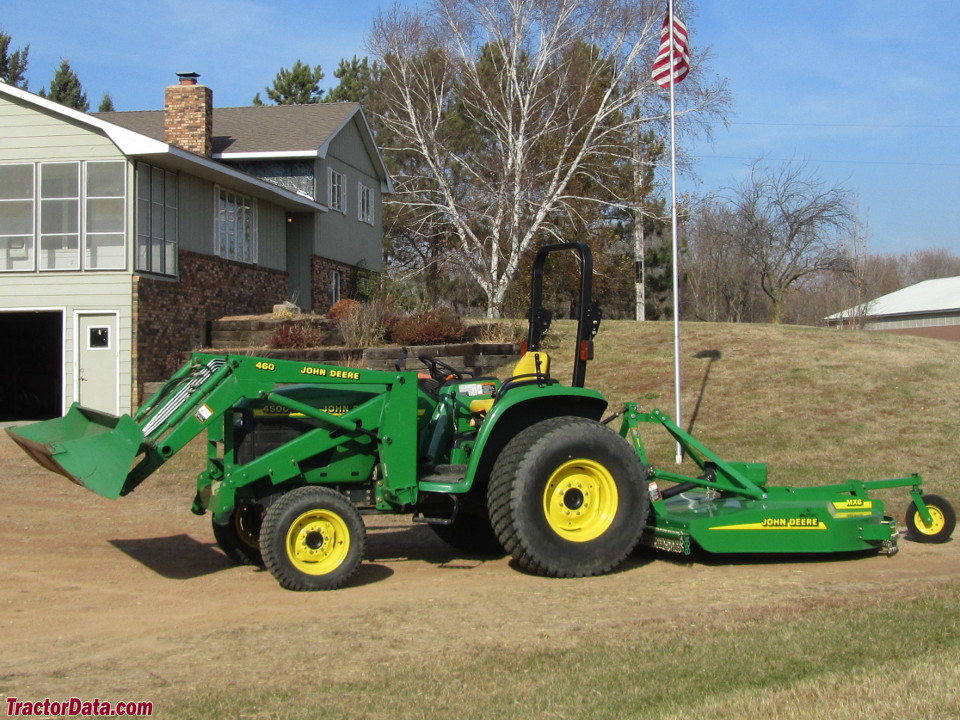

John Deere 4500
John Deere 4500 — Compact Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1564 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $18,000 in 2000Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Folding ROPS optional.Reference
Engine
Yanmar 2.0L 4-cyl dieselReference
Engine (gross)29.1 kWReference
Engine (net)27.6 kWReference
Yanmar 4TNE84Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke84 x 90 mmReference
Power (net)27.6 kWReference
Power (gross)29.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingair heaterReference
Compression18:1Reference
Rated RPM2600Reference
Torque124.8 NmReference
Torque RPM1700Reference
Starter volts12Reference
Starter power2.0 kWReference
Coolant capacity6.8 LReference
Oil capacity4.8 LReference
Transmission
9-speed unsynchronized gearReference
12-speed partially synhcronized power shuttleReference
TransmissionCollar ShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity25.7 LReference
Three speeds (1-3), plus reverse, in three ranges (A-C). Tractor must be stopped, and clutch used, to shift speeds or ranges.Reference
TransmissionPowrReverserReference
Typepartially synhcronized power shuttleReference
Gears12 forward and reverseReference
Clutchwet disc, two clutch packs with three 5-inch discs eachReference
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifted on the move, using the clutch. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
Hydraulic system25.7 LReference
Typeopen centerReference
Capacity25.7 LReference
Pressure172.4 barReference
Valves3Reference
Pump flow37.5 lpmReference
Total flow55.6 lpmReference
Steering flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1134 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@2600Reference
Capacities
Fuel47.3 LReference
Front axle7.9 LReference
Dimensions
Wheelbase181 cmReference
Weight1564 kgReference
Front tire7-16Reference
Rear tire13.6-24Reference
Weight688 kgReference
Standard tires (ag)Front: 7-16. Rear: 13.6-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length342 cmReference
Width157 cmReference
Height (hood)129 cmReference
Height (ROPS)247 cmReference
Max Drawbar258 kgReference
John Deere 4500 attachments
72" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
4500 Serial Number Location
Serial number plate on front-right tractor frame, above front wheel.Reference
4500 Serial Numbers
1998150000Reference
1999250001Reference
2000350001Reference
2001450001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA650Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference
John Deere 48 Backhoe
Backhoe typeJohn Deere 48 BackhoeReference
Transport height205 cmReference
Bucket width30 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth259 cmReference
Reach from pivot337 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
