Tractor · 2002Unverified

John Deere 4510

Name: John Deere 4510
Brand: John Deere

John Deere 4510 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.

The John Deere 4510 is a tractor with a rated power of 38 hp, categorising it as a lighter model within its class. Manufactured from 2002 to 2004, it features a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 9-speed gearbox. Its listed operating weight is 1564 kg, and it is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

1564 kg

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

38 hp

Recorded weight

1564 kg

Transmissions

9-speed partially synchronized

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Platform with ROPS.Reference

Engine

Yanmar 2.0L 4-cyl dieselReference

Engine (gross)28.6 kWReference

Yanmar 4TNE84Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)28.6 kWReference

Air cleanerdry with safety elementReference

Compression18:1Reference

Rated RPM2600Reference

Torque124.8 NmReference

Torque RPM1700Reference

Starter volts12Reference

Starter power2.0 kWReference

Coolant capacity6.1 LReference

Oil capacity4.8 LReference

Transmission

9-speed partially synchronizedReference

12-speed power shuttleReference

TransmissionSyncShiftReference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Oil capacity36.7 LReference

The SyncShift transmission is operated via a gear shift lever and range shift lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts, within a range, may be made on the move using the clutch.Reference

TransmissionPowrReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)24.6 kWReference

Hydraulic system36.7 LReference

Typeopen centerReference

Capacity36.7 LReference

Pressure172.4 barReference

Pump flow40.1 lpmReference

Total flow60.2 lpmReference

Steering flow20.1 lpmReference

Rear TypeIReference

Rear lift1134 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Capacities

Fuel47.3 LReference

Front axle4.9 LReference

Dimensions

Wheelbase181 cmReference

Weight1564 kgReference

Front tire6.00-16Reference

Rear tire13.6-24Reference

Weight150 kgReference

Weight706 kgReference

Ag front6.00-16 (2WD)Reference

Ag front7.00-16 (4WD)Reference

Ag front8.00-16 (4WD)Reference

Ag rear13.6-24Reference

Ag rear14.9-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf front27x12LL-15 (4WD)Reference

Lawn/turf rear44x18.00-20Reference

Lawn/turf rear22.5LL-16.1Reference

Industrial front10.00-16.5 (4WD)Reference

Industrial rear17.5L-24Reference

Length342 cmReference

Width157 cmReference

Shipping weight1564 kgReference

John Deere 4510 attachments

72" mid-mount mower deckReference

bladeReference

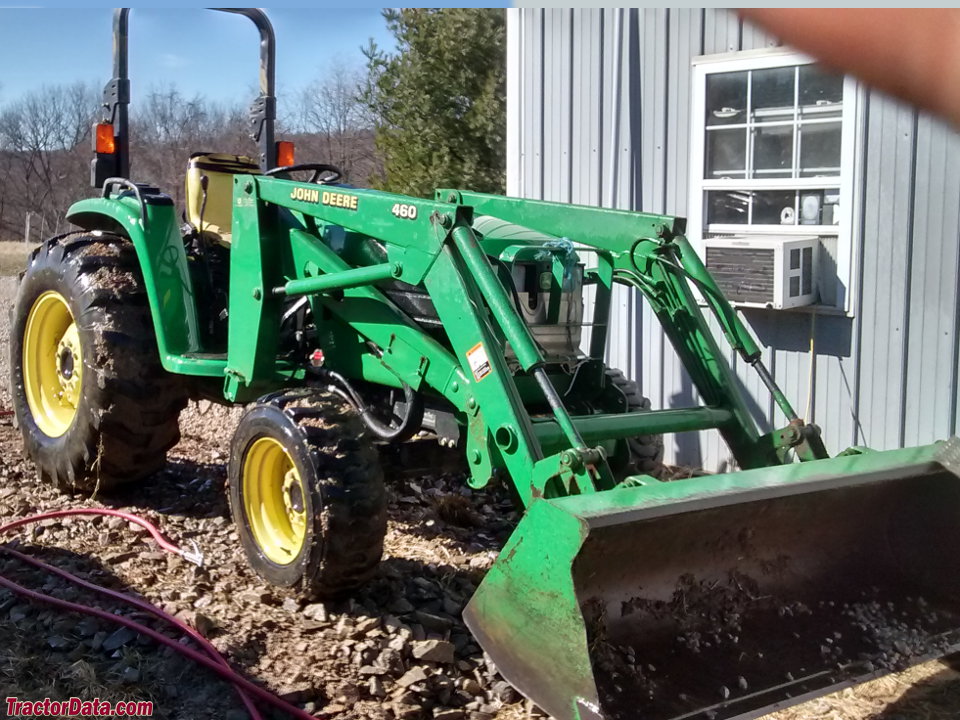

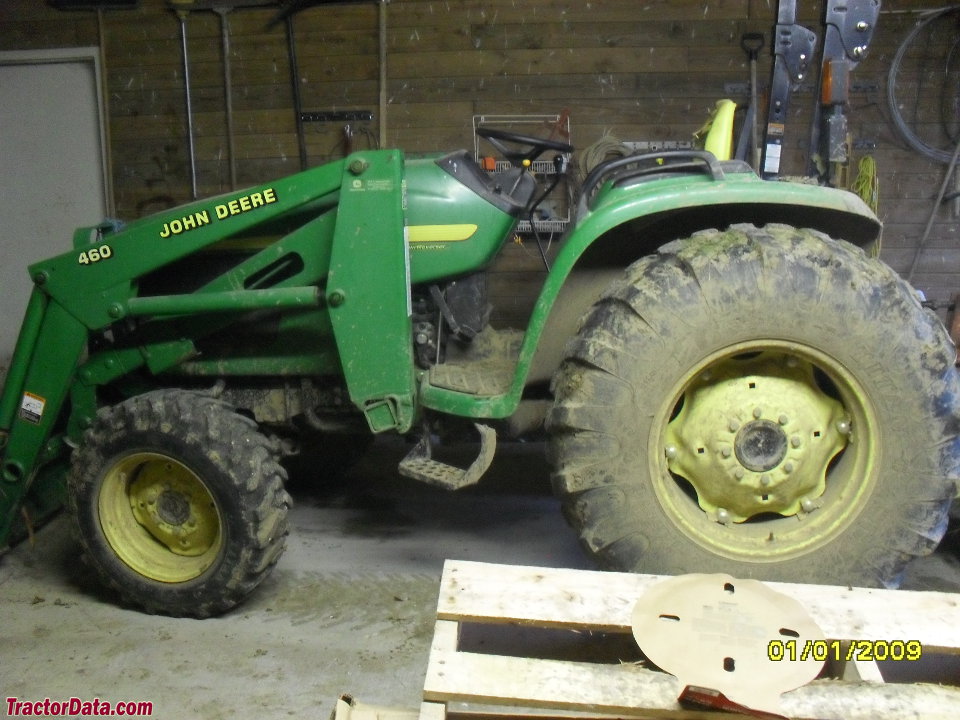

front-end loaderReference

backhoeReference

4510 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

4510 Serial Numbers

2002150001Reference

2003250001Reference

2004350001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA690Reference

Battery volts12Reference

Attachment overview

72" mid-mount mower deckReference

BladeReference

Front-end loaderReference

BackhoeReference

72" Mower deck

Typemid-mount John Deere 72 7-IronReference

Type3-blade with hydraulic liftReference

Cutting width182 cmReference

Overall width215 cmReference

Cut height2 to 15 cmReference

John Deere 448 Backhoe

Backhoe typeJohn Deere 448 BackhoeReference

Transport height228 cmReference

2-Foot flat digging depth266 cmReference

Reach from pivot360 cmReference

Loading height223 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1691 kgReference

Dipperstick force1104 kgReference

John Deere 4510 Height

Hood129 cmReference

ROPS232 cmReference

ROPS247 cmReference

Speeds

With 13.6-24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
