Tractor · 1975Unverified

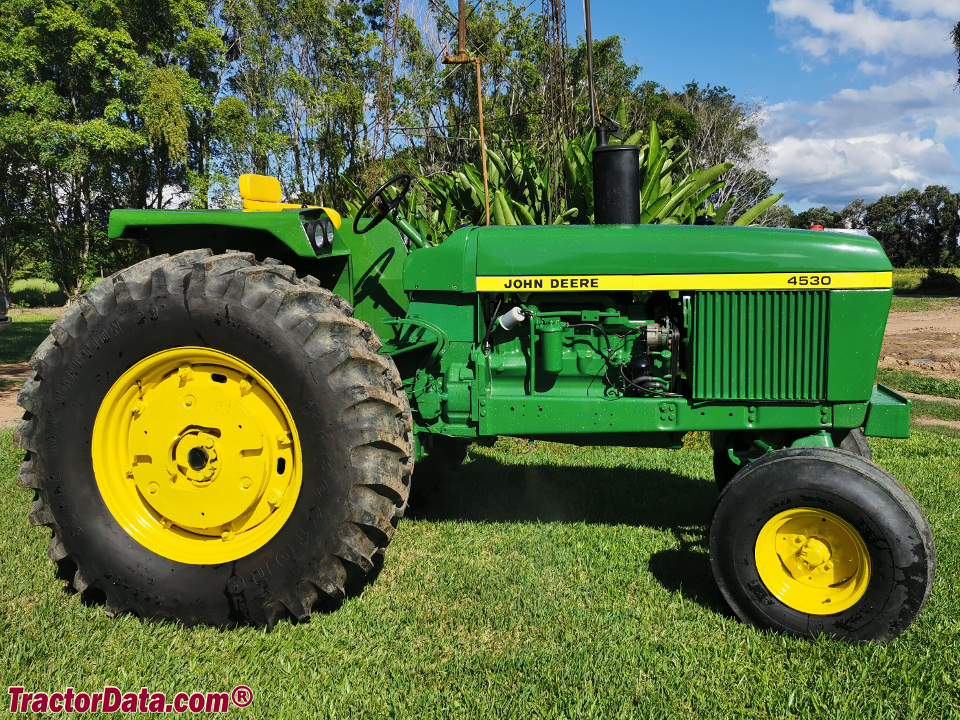

John Deere 4530
John Deere 4530 — Row-Crop tractor · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Weight
6114 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Rosario, ArgentinaReference
Two-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Engine85.0 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke107 x 110 mmReference
Power85.0 kWReference
Compression16.7:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity20.0 LReference
Transmission
8-speedReference
TransmissionSyncro-RangeReference
Gears8 forward and 2 reverseReference
Oil capacity49.0 LReference
PTO & Hydraulics
PTO (claimed)79.4 kWReference
Hydraulic system49.2 LReference
Capacity49.2 LReference
Rear TypeII/IReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Capacities
Fuel145.0 LReference
Dimensions
Wheelbase262 cmReference
Weight6114 kgReference
Front tire7.50x18Reference
Rear tire23.1x30Reference
Ag front7.50x18Reference
Ag front10.00x16Reference
Ag rear23.1x30Reference
Ag rear23.1x26Reference
Ag rear18.4x34Reference
Length411 cmReference
Width228 cmReference
Ground clearance69 cmReference
Steering wheel209 cmReference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Batteries2Reference
Battery volts6Reference
Battery AH140Reference
John Deere 4530 Height
Hood176 cmReference
Exhaust230 cmReference
Speeds
With 23.1x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
