Industrial Tractor · 1985Unverified

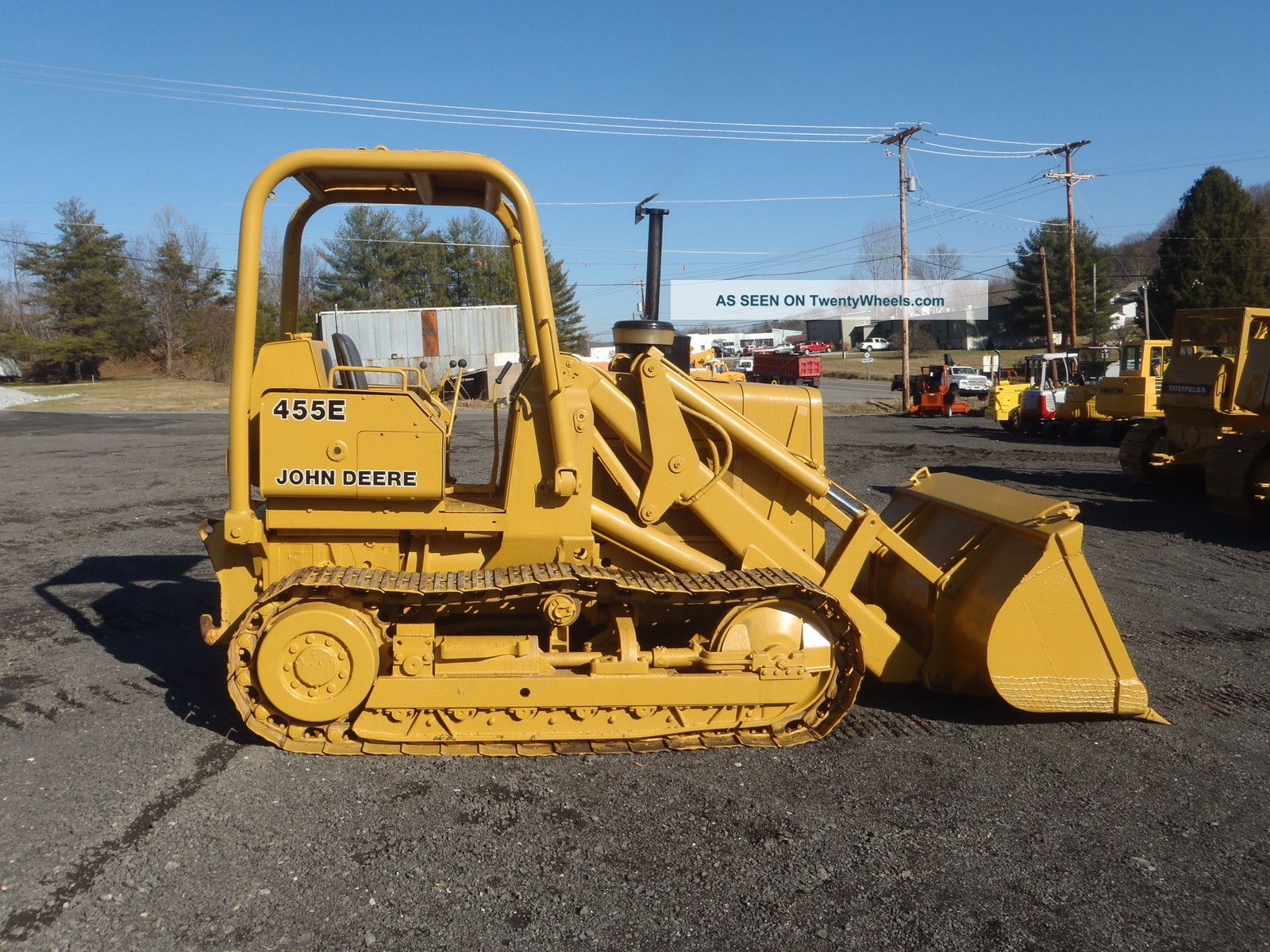

John Deere 455E
John Deere 455E — Crawler Loader · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
7788 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Crawler LoaderReference
DrivecrawlerReference
Four-post ROPS canopy. Cab available.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank117.3 LReference
Engine (gross)54.4 kWReference
Engine (net)52.2 kWReference
John Deere 4-276DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power (net)52.2 kWReference
Power (gross)54.4 kWReference
Air cleanerdryReference
Compression16.8:1Reference
Rated RPM2100Reference
Torque309.2 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.2 LReference
Coolant capacity15.1 LReference
Transmission
8-speed partial power shiftReference
Typepartial power shiftReference
Gears8 forward and 4 reverseReference
Four ranges with low-high-reverse power shift in each range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Pump flow106.0 lpmReference
Dimensions
Weight7788 kgReference
14-inch tracksReference
Length417 cmReference
Height (ROPS)258 cmReference
Operating weight7788 kgReference
Gauge132 cmReference
Gauge152 cmReference
John Deere 455E attachments
front-end loaderReference
John Deere 455E Tracks
Width35 cmReference
Length on ground193 cmReference
Area on ground1.4 m²Reference
Ground pressure0.6 barReference
Wide Track width53 cmReference
Wide Track length on ground193 cmReference
Wide Track area on ground2.1 m²Reference
Wide Track ground pressure0.4 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
