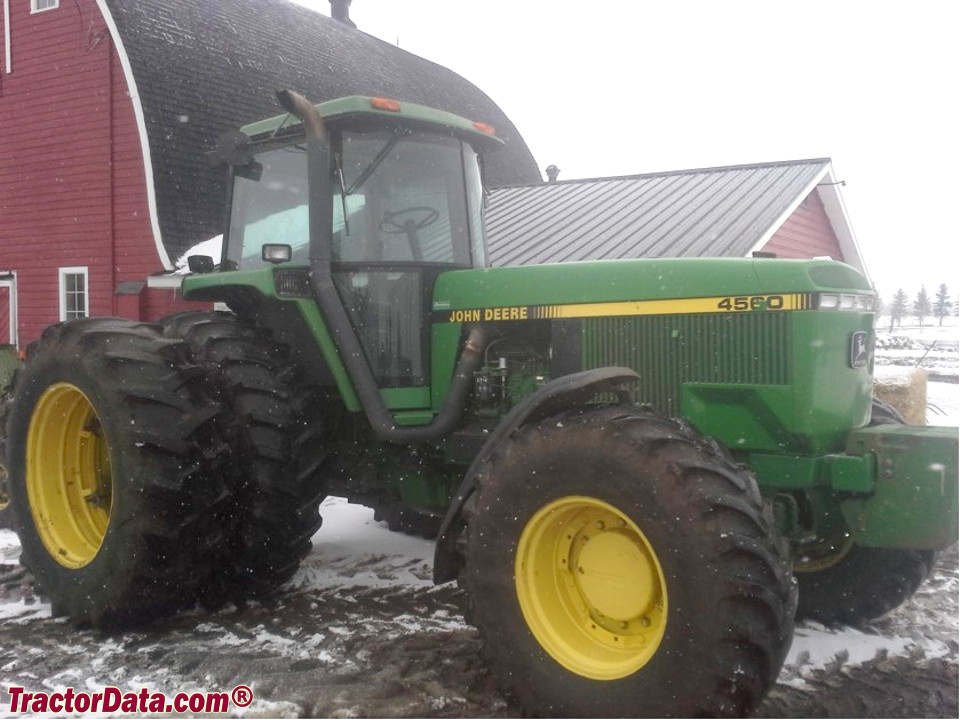

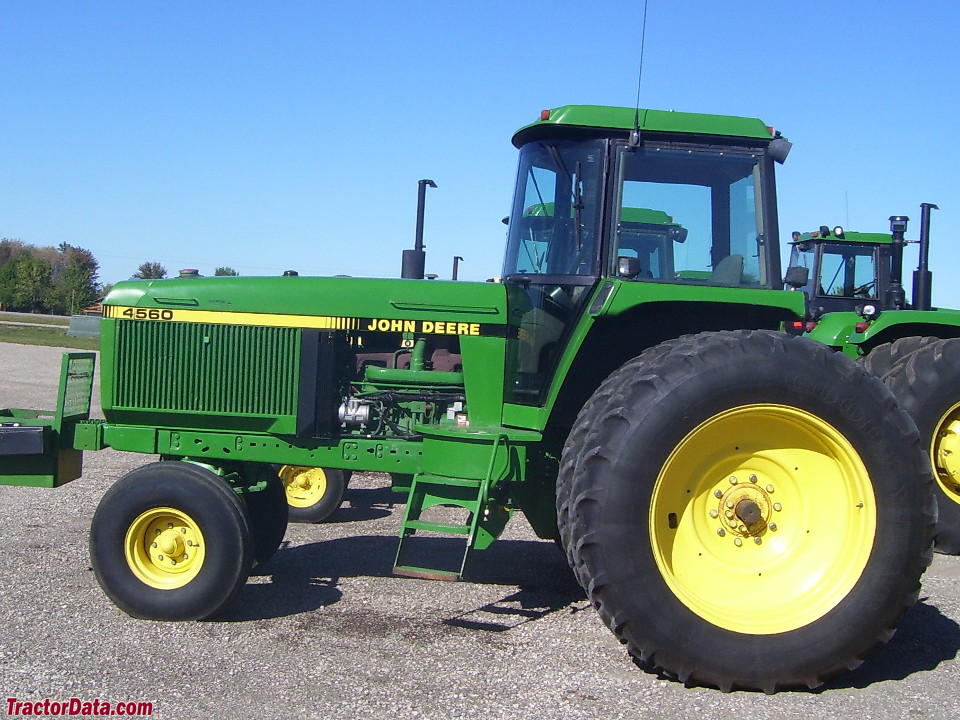

John Deere 4560
John Deere 4560 — Row-Crop tractor · 157 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
157 hp
Max power
121.2 kW
Weight
8438 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $75,000 in 1994Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Sound-Gard cab standard.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Drawbar (tested)104.4 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inline valve-in-headReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Air cleanerdual dry elementReference
Compression15.5:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity30.3 LReference
Max power121.2 kWReference
Power at rated engine speed117.0 kWReference
Max power98.0 kWReference
Max power121.2 kWReference
Power at rated engine speed116.9 kWReference
Max power104.4 kWReference
Transmission
16-speed partial power shiftReference
15-speed full power shiftReference
TransmissionJohn Deere Quad RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
ClutchPerma-Clutch hydraulic wet discReference
Four gears (1-4) in four ranges (A-D) with high-low power shift.Reference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)115.6 kWReference
PTO (tested)121.2 kWReference
Hydraulic system74.9 LReference
Typeclosed centerReference
Capacity74.9 LReference
Pressure174.4 barReference
Rear valves3 or 4Reference
Pump flow133.6 lpmReference
Pump flow124.1 lpmReference
Rear Type3/3NReference
Controlelectrohydraulic draft sensingReference
Rear lift3757 kgReference
Rear lift4554 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel386.1 LReference
Dimensions
2WD Wheelbase300 cmReference
4WD Wheelbase297 cmReference
Weight8438 kgReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Ag front11.00-16Reference
Ag rear20.8-38Reference
Width300 cmReference
Height301 cmReference
Shipping weight8438 kgReference
Front axle2WDReference
Front axleCaster/Action MFWDReference
Rack-and-pinion rear axleReference
Rear tread152 to 340 cmReference
John Deere 4560 attachments
front-end loaderReference
4560 Serial Numbers
Location:Rear of transmissionReference
19921001Reference
19933221Reference
19944501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
OECD 1620: diesel Powershift 4WDReference
OECD 1629: diesel Quad-Range 2WDReference
Diesel Powershift 4WDApril 1 - May 1, 1989Link: OCED Tractor Test 1620 fileReference
PTO performanceReference
Fuel use32.9 l/hourReference
Fuel use33.7 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Max pull9490 kgReference
Gear 3 used for pull test.Reference
Diesel Quad-Range 2WDSeptember 1 - October 1, 1989Link: OCED Tractor Test 1629 fileReference
Fuel use34.1 l/hourReference
Max pull8066 kgReference
