Tractor · 2005Unverified

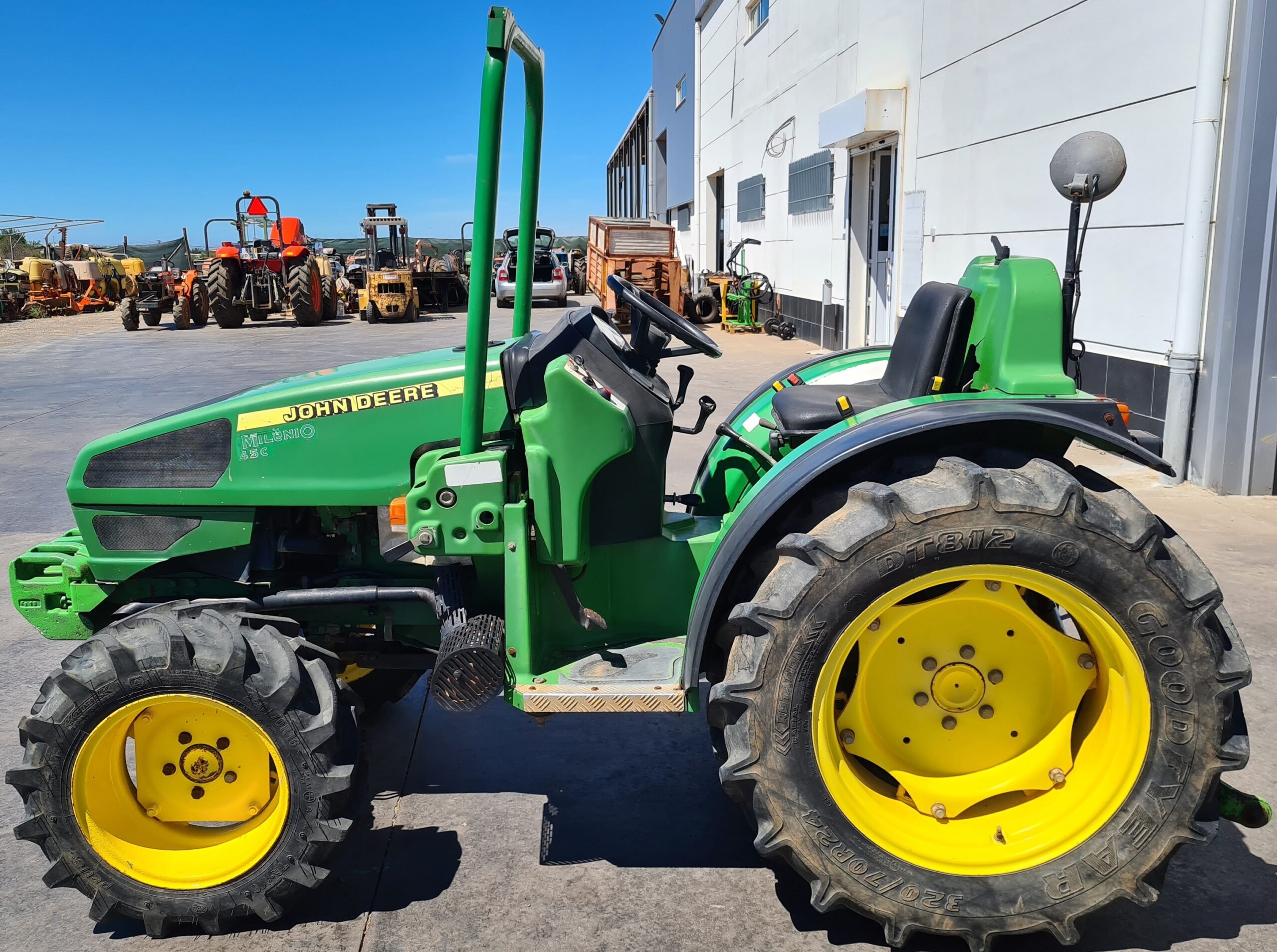

John Deere 45C

Name: John Deere 45C
Brand: John Deere

John Deere 45C — Milenio C Series · 45 hp. Reference specifications; pending source verification.

The John Deere 45C is a tractor rated at 45 hp, positioning it at the lighter end of its class. Manufactured from 2005 to 2015, this model features a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 12-speed gearbox. The tractor's operating weight is listed as 1584 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

1584 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

45 hp

Recorded weight

1584 kg

Transmissions

12-speed synchronized

Production years

2005-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerGoldiniReference

Compact Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount folding ROPS.Reference

Engine

Lombardini 2.2L 4-cyl dieselReference

Fuel tank40.1 LReference

Engine (gross)33.6 kWReference

Lombardini LDW 2204Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

Rated Power (gross)33.6 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Rated RPM2800Reference

Torque130.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.0 LReference

Coolant capacity6.0 LReference

Transmission

12-speed synchronizedReference

TypesynchronizedReference

Gears12 forward and reverseReference

Clutchmechanical dry discReference

Oil capacity24.0 LReference

PTO & Hydraulics

Pressure150.0 barReference

Pump flow32.9 lpmReference

Rear TypeI/INReference

Rear lift (at ends)1399 kgReference

Rear lift (at 24"/610mm)1000 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@2520Reference

Engine RPM1000@2620Reference

Dimensions

Wheelbase168 cmReference

Weight1584 kgReference

Front tire240/40R16Reference

Rear tire320/70R24Reference

Standard tires (ag)Front: 240/40R16. Rear: 320/70R24Reference

Length306 cmReference

Width110 cmReference

Height (ROPS)199 cmReference

Front tread84 to 120 cmReference

Rear tread89 to 126 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
