Tractor · 1983Unverified

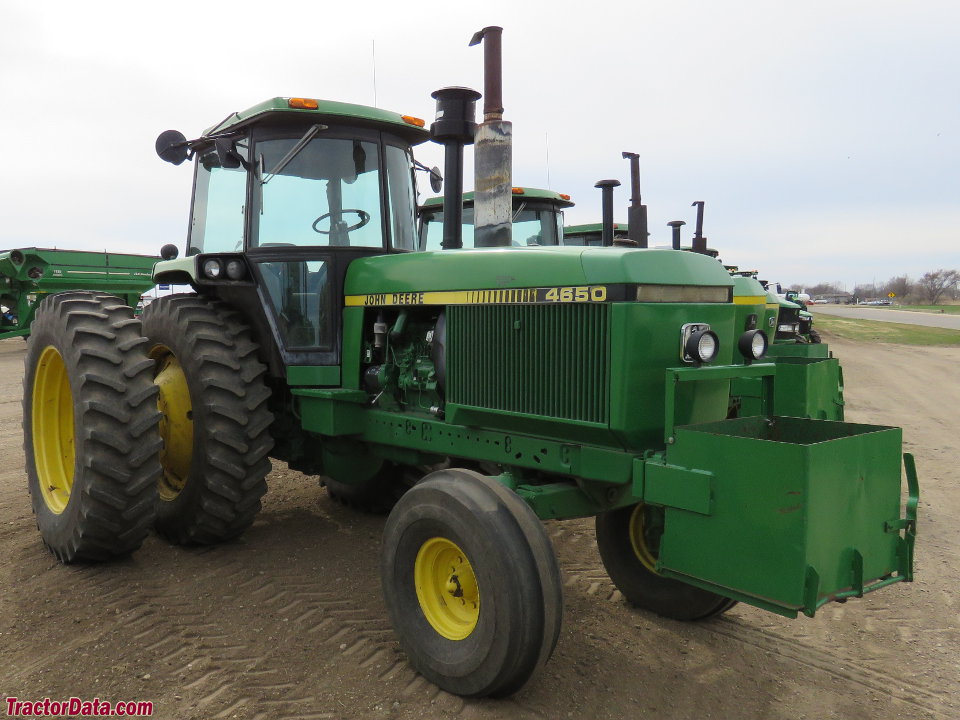

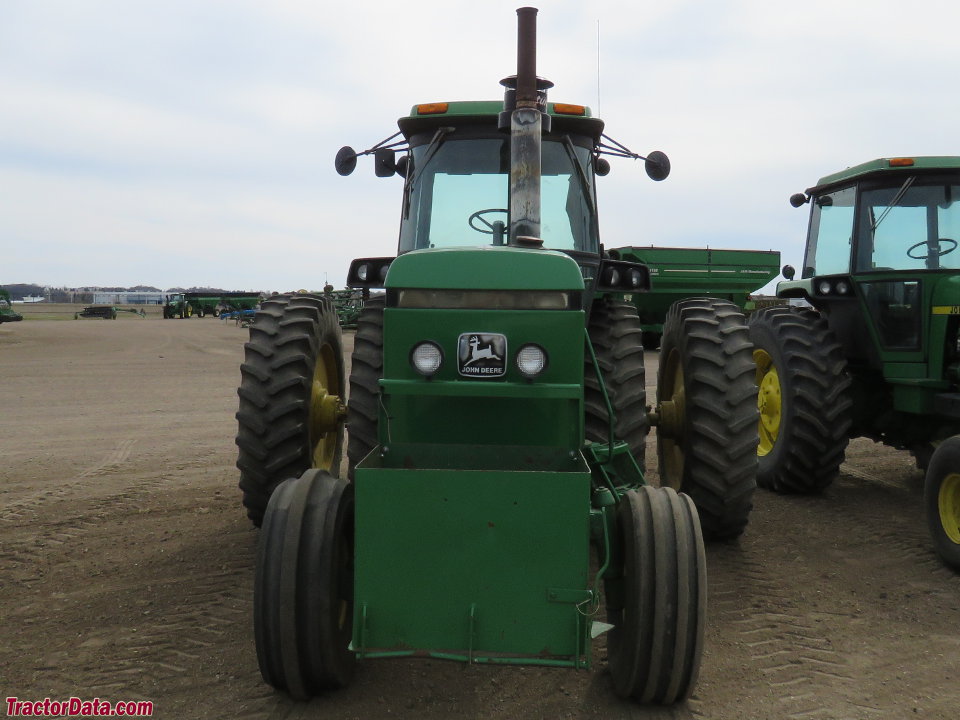

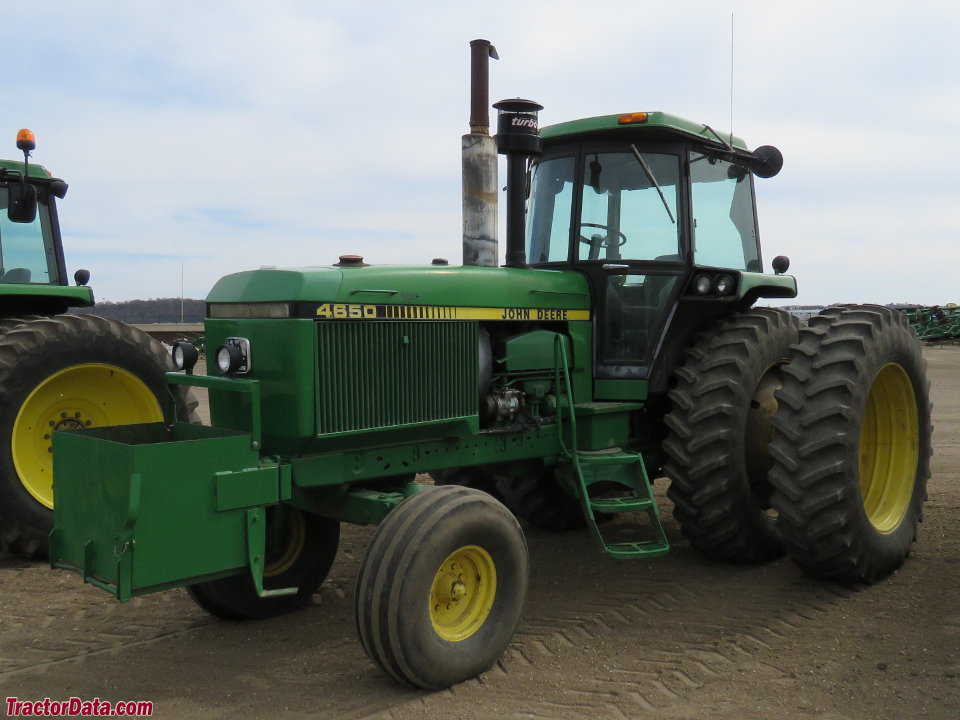

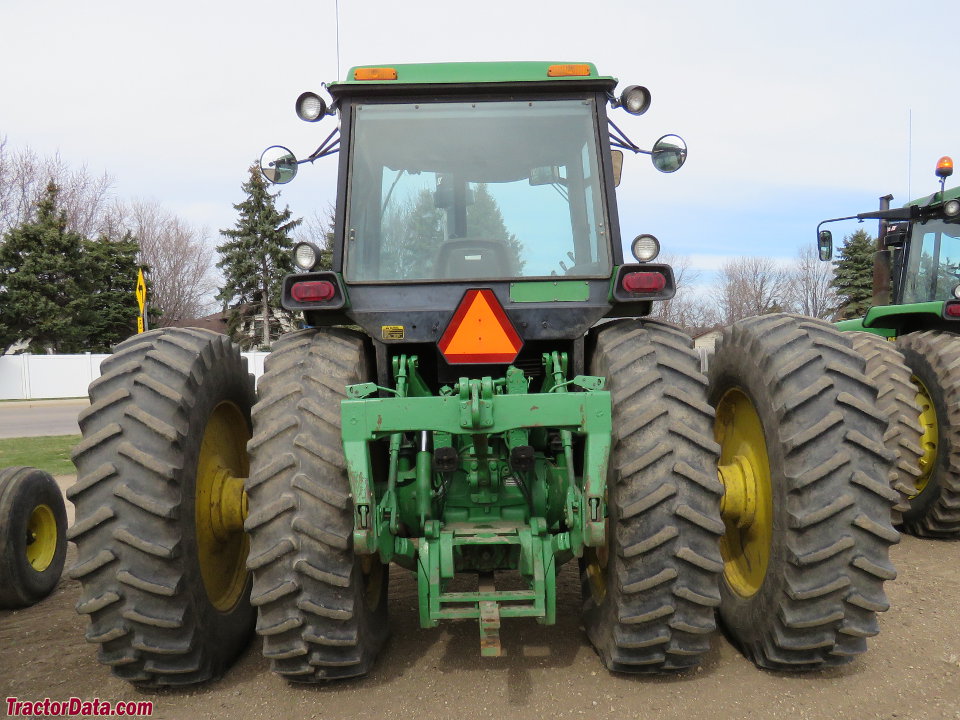

John Deere 4650
John Deere 4650 — 50 Series · 166 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
166 hp
Max power
102.4 kW
Weight
16685 to 18585 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price$54,763 (1983 Quad-Range ROPS 2WD )Reference
Original price$76,006 (1983 Power Shift Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Sound-Gard cab standard. Optional four-post Roll-Gard ROPS.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Engine140.0 kWReference
Drawbar (claimed)102.2 kWReference
Drawbar (tested)106.1 kWReference
John DeereReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power140.0 kWReference
Air cleanerdryReference
Compression15.8:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity19.9 LReference
Coolant capacity30.3 LReference
Power at rated engine speed123.4 kWReference
Max power102.4 kWReference
Power at rated engine speed123.6 kWReference
Max power106.1 kWReference
Transmission
16-speed partial power shiftReference
15-speed full power shiftReference
TransmissionJohn Deere Quad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
ClutchPerma-Clutch wet discReference
Oil capacity101.8 LReference
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.Reference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
Oil capacity70.4 LReference
Oil capacity81.8 LReference
Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)123.0 kWReference
PTO (tested)123.6 kWReference
Hydraulic system70.4 LReference
Hydraulic system81.8 LReference
Hydraulic system101.8 LReference
Typeclosed centerReference
Capacity70.4 LReference
Capacity81.8 LReference
Capacity101.8 LReference
Pressure157.0 barReference
Valves2 or 3Reference
Pump flow111.7 lpmReference
Rear TypeIIIReference
Controllower-link draft sensingReference
Rear lift3844 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000Reference
Engine RPM1000@2200Reference
Capacities
Fuel386.1 LReference
Dimensions
2WD Wheelbase300 cmReference
4WD Wheelbase297 cmReference
Weight16685 to 18585 poundsReference
Front tire11.00-16Reference
2WD Rear tire20.8-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 20.8-38Reference

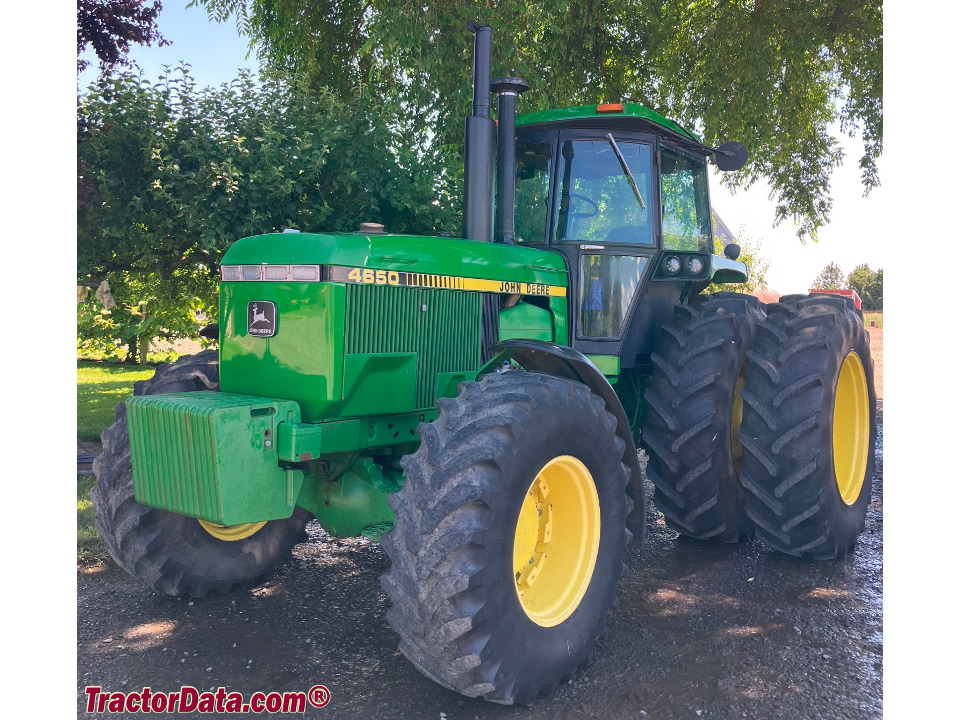

4WD Standard tires (ag)Front: 18.4-26. Rear: 20.8-38Reference
Ag rear16.9-38Reference
Ag rear18.4-38Reference
Ag rear18.4R38Reference
Ag rear20.8R38Reference
Ag rear18.4-42Reference
Ag rear18.4R42Reference
Length456 cmReference
Length469 cmReference
Width299 cmReference
Width243 cmReference
Width274 cmReference
Height299 cmReference
Shipping weight7568 kgReference
Operating weight8430 kgReference
Ground clearance37 cmReference
Rack-and-pinion rear axle100 by 2438 mmReference
Rack-and-pinion rear axle100 by 2743 mmReference
Rack-and-pinion rear axle100 by 2997 mmReference
John Deere 4650 attachments
front-end loaderReference
4650 Serial Number Location
Differential on rear of tractor.Reference
4650 Serial Numbers
19831000Reference
19847001Reference
198510001Reference
198612501Reference
198714001Reference
198815501Reference
198917501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps90 (with Sound-Gard cab)Reference
Batteries2Reference
Battery volts6Reference
Battery volts12Reference
Test results
NTTL 1460: diesel Power Shift 2WDReference
NTTL 1477: diesel Quad-Range 2WDReference
Diesel Power Shift 2WDOctober 9 - 28, 1982Link: Nebraska Tractor Test 1460 fileReference
PTO performanceReference
Fuel use37.1 l/hourReference
Drawbar performanceReference
Fuel use36.3 l/hourReference
Gear 10 used for power test.Reference
Max pull7595 kgReference
Gear 5 used for pull test.Reference
Diesel Quad-Range 2WDApril 7 - 26, 1983Link: Nebraska Tractor Test 1477 fileReference
Fuel use36.0 l/hourReference
Max pull7626 kgReference
Speeds
20.8-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
