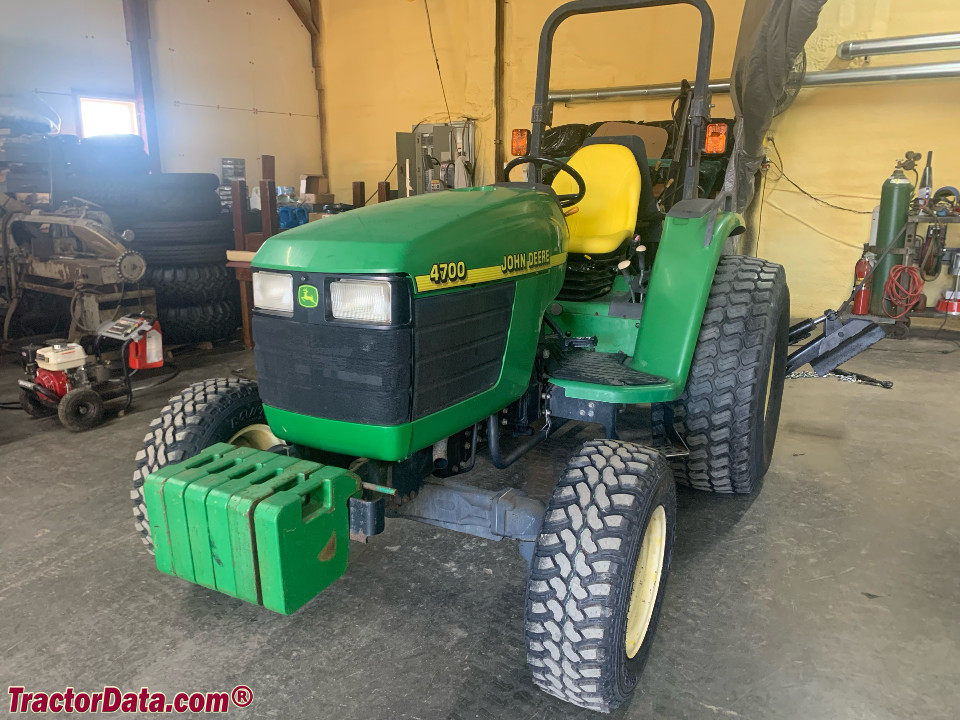

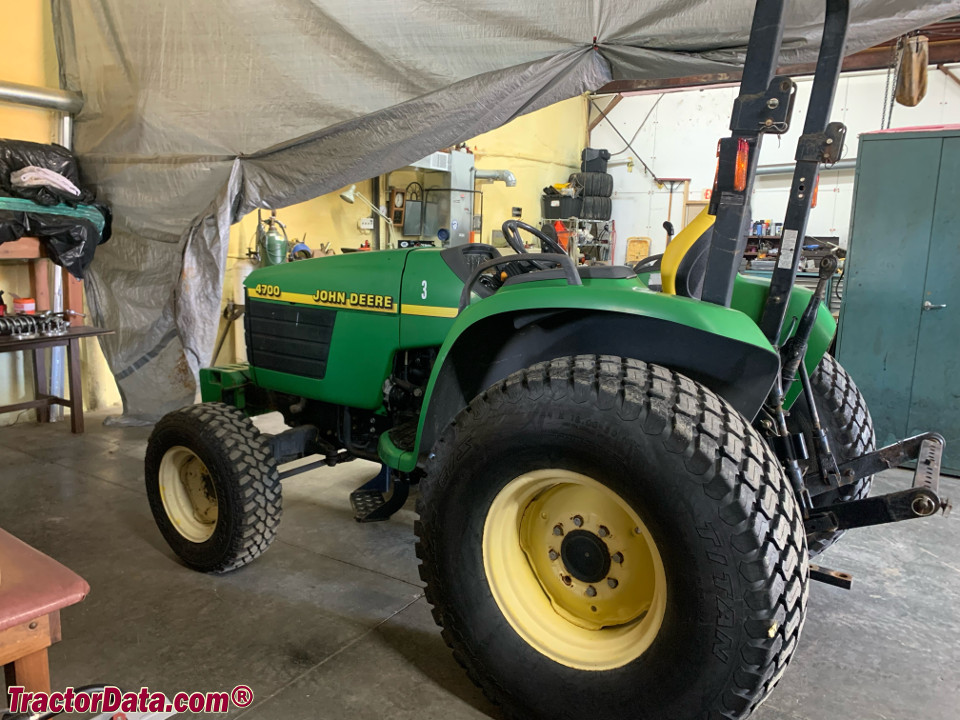

John Deere 4700
John Deere 4700 — Compact Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1632 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $26,500 in 2003Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Folding ROPS optional.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine (gross)35.8 kWReference
Engine (net)33.6 kWReference
Yanmar 4TNE88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power (net)33.6 kWReference
Power (gross)35.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdry typeReference
Pre-heatingair heaterReference
Compression18:1Reference
Rated RPM2600Reference
Torque146.4 NmReference
Torque RPM1700Reference
Starter volts12Reference
Starter power2.0 kWReference
Coolant capacity7.2 LReference
Oil capacity4.8 LReference
Transmission
12-speed partially synhcronized power shuttleReference
hydrostaticReference
24-speed partially synhcronized power shuttleReference
TransmissionPowrReverserReference
Typepartially synhcronized power shuttleReference
Gears12 forward and reverseReference
Clutchwet disc, two clutch packs with three 5-inch discs eachReference
Oil capacity25.7 LReference
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifting on the move, using the clutch. Tractor must be stopped to shift ranges.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (three-range)Reference
Oil capacity33.3 LReference
Hydrostatic transmission operated with two foot pedals. Push-button cruise control on dash. Tractor must be stopped to shift ranges.Reference
TransmissionPowrReverser CreeperReference
Gears24 forward and reverseReference
Add creeper range to the PowrReverser, engaged by separate lever. Tractor must be stopped, and clutch used, to shift in or out of creeper range.Reference
PTO & Hydraulics
Gear PTO (claimed)30.9 kWReference
Hydro PTO (claimed)29.8 kWReference
Hydraulic system25.7 LReference
Hydraulic system33.3 LReference
Typeopen centerReference
Capacity25.7 LReference
Capacity33.3 LReference
Pressure172.4 barReference
Valves3Reference
Pump flow37.5 lpmReference
Total flow55.6 lpmReference
Steering flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1134 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@2600Reference
Capacities
Fuel47.3 LReference
Front axle7.9 LReference
Dimensions
Weight1632 kgReference
Front tire8-16Reference
Rear tire13.6Reference
Weight688 kgReference
Standard tires (ag)Front: 8-16. Rear: 13.6Reference
Optional tires (ag)Front: 8-16. Rear: 16.9-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length342 cmReference
1632 kgReference
Max Drawbar258 kgReference
Max front axle4 kgReference
Max rear axle1000 kgReference
John Deere 4700 attachments
72" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
4700 Serial Number Location
Serial number plate on front-right tractor frame, above front wheel.Reference
4700 Serial Numbers
2000170001Reference
2001470001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA650Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference

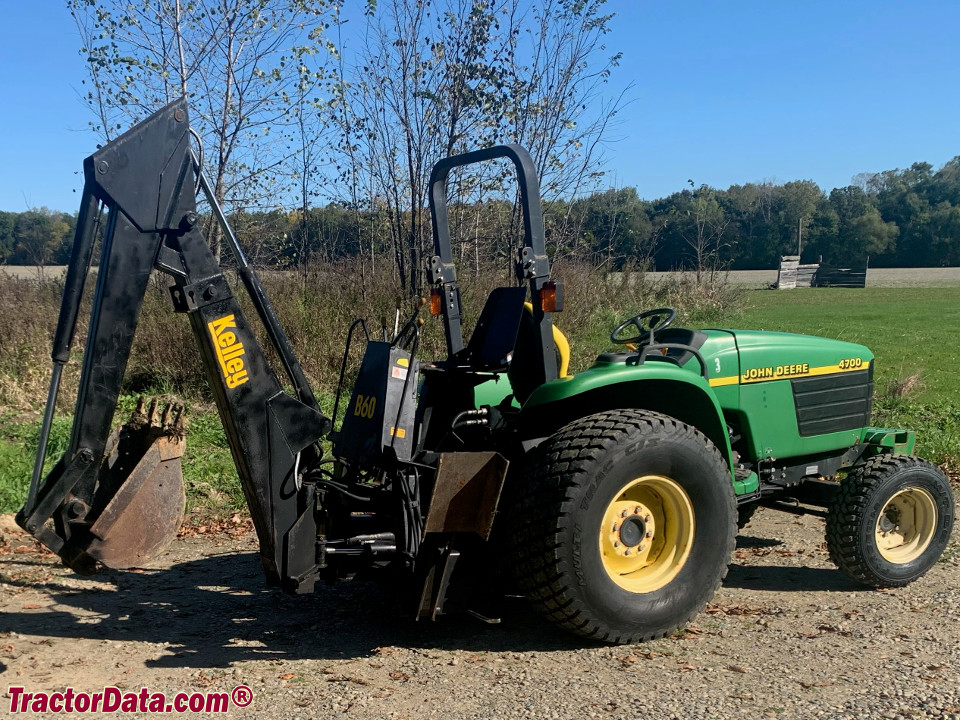

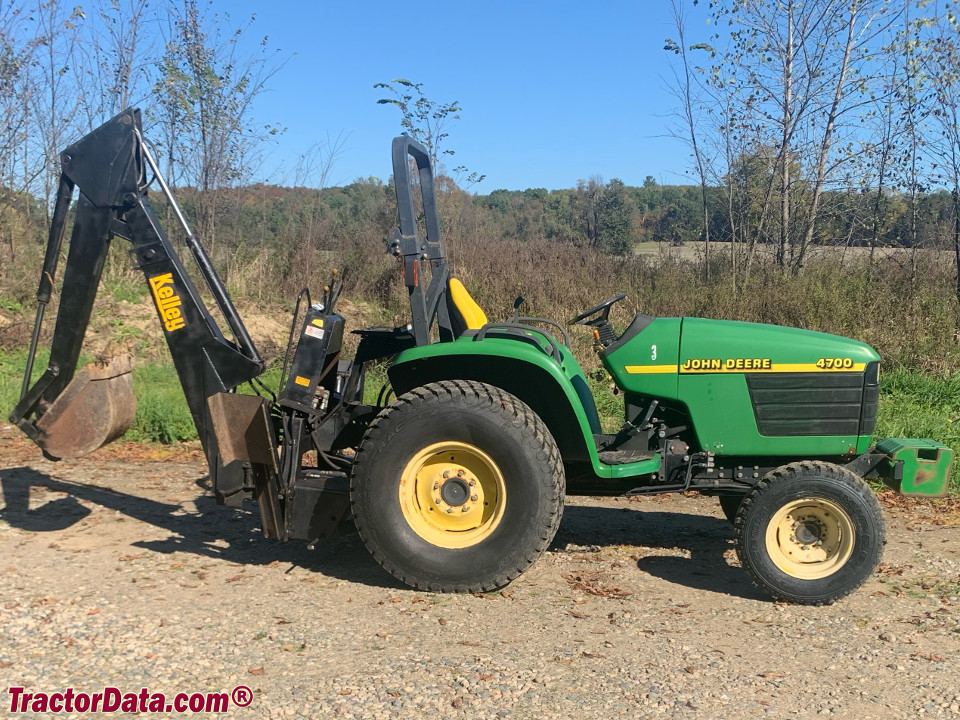

John Deere 48 Backhoe
Backhoe typeJohn Deere 48 BackhoeReference
Transport height205 cmReference
Bucket width30 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth259 cmReference
Reach from pivot337 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
John Deere 4700 Height
Hood124 cmReference
Hood129 cmReference
ROPS224 cmReference
ROPS232 cmReference
ROPS239 cmReference
ROPS247 cmReference
Speeds
With 13.6-28 rear tries.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
