Tractor · 2002Unverified
John Deere 4710
John Deere 4710 — Compact Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
1564 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Platform with two-post folding ROPS.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine (gross)34.5 kWReference
Yanmar 4TNE88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)34.5 kWReference
Air cleanerdry with safety elementReference
Compression18:1Reference
Rated RPM2600Reference
Torque146.4 NmReference
Torque RPM1700Reference
Starter volts12Reference
Starter power2.0 kWReference
Coolant capacity6.4 LReference
Oil capacity4.8 LReference
Transmission
12-speed power shuttleReference
hydrostaticReference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Oil capacity36.7 LReference
The PowrReverser is operated with a range shift lever, gear shift lever, and reverser lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts may be made while in motion using the clutch. A clutchless power shift can be made between forward and reverse using the reverser lever.Reference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity34.8 LReference
The eHydro is operated via a three-position range shift lever plus forward and reverse pedals. The tractor must be stopped to change range.Reference
PTO & Hydraulics
Hydro PTO (claimed)28.7 kWReference
Gear PTO (claimed)29.8 kWReference
Hydraulic system36.7 LReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity36.7 LReference
Capacity34.8 LReference
Pressure172.4 barReference
Pump flow40.1 lpmReference
Total flow60.2 lpmReference
Steering flow20.1 lpmReference
Rear TypeIReference
Rear lift1134 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Capacities
Fuel47.3 LReference
Front axle4.9 LReference
Dimensions
Wheelbase181 cmReference
Weight1564 kgReference
Front tire6.00-16Reference
Rear tire13.6-24Reference
Weight150 kgReference
Weight706 kgReference
Ag front6.00-16 (2WD)Reference
Ag front6.50-16 (2WD)Reference
Ag front7.00-16 (4WD)Reference
Ag front8.00-16 (4WD)Reference
Ag rear13.6-24Reference
Ag rear13.6-28Reference
Ag rear16.9-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf front27x12LL-15 (4WD)Reference
Lawn/turf rear44x18.00-20Reference
Lawn/turf rear22.5LL-16.1Reference
Industrial front10.00-16.5 (4WD)Reference
Industrial rear17.5L-24Reference
Length342 cmReference
Width157 cmReference
Shipping weight1564 kgReference
John Deere 4710 attachments
72" mid-mount mower deckReference
bladeReference

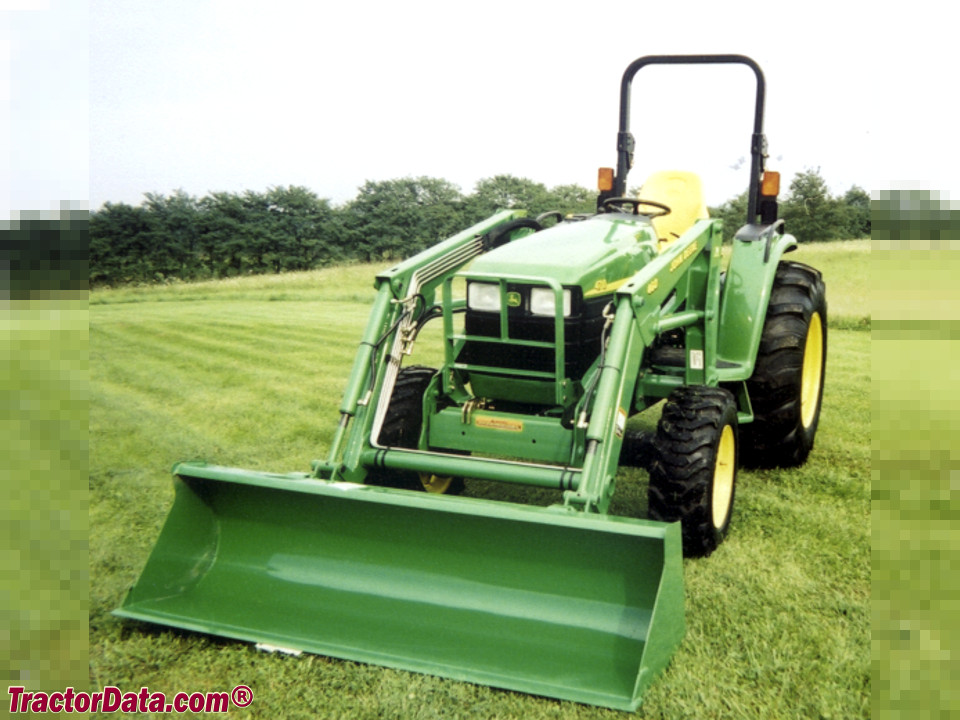

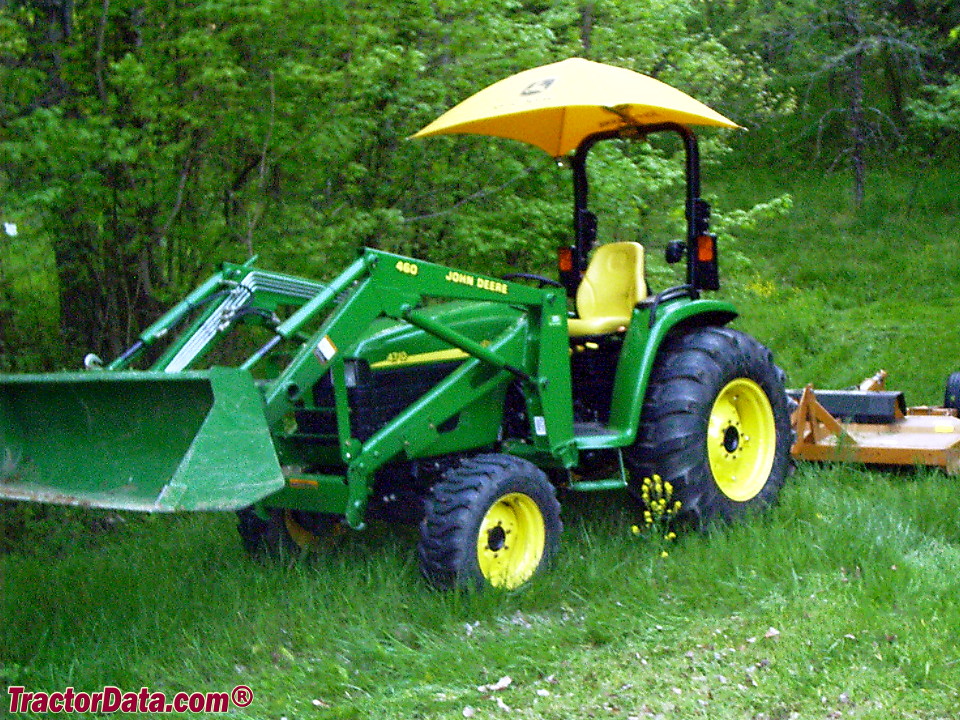

front-end loaderReference
backhoeReference
4710 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
4710 Serial Numbers
2002170001Reference
2003270001Reference
2004370001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA690Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount John Deere 72 7-IronReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference
Cut height2 to 15 cmReference
John Deere 448 Backhoe
Backhoe typeJohn Deere 448 BackhoeReference
Transport height228 cmReference
2-Foot flat digging depth266 cmReference
Reach from pivot360 cmReference
Loading height223 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
John Deere 4710 Height
Hood129 cmReference
ROPS232 cmReference
ROPS247 cmReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
