Tractor · 2005Unverified
John Deere 4720
John Deere 4720 — Model year 2005-20082009-2014 · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1750 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference

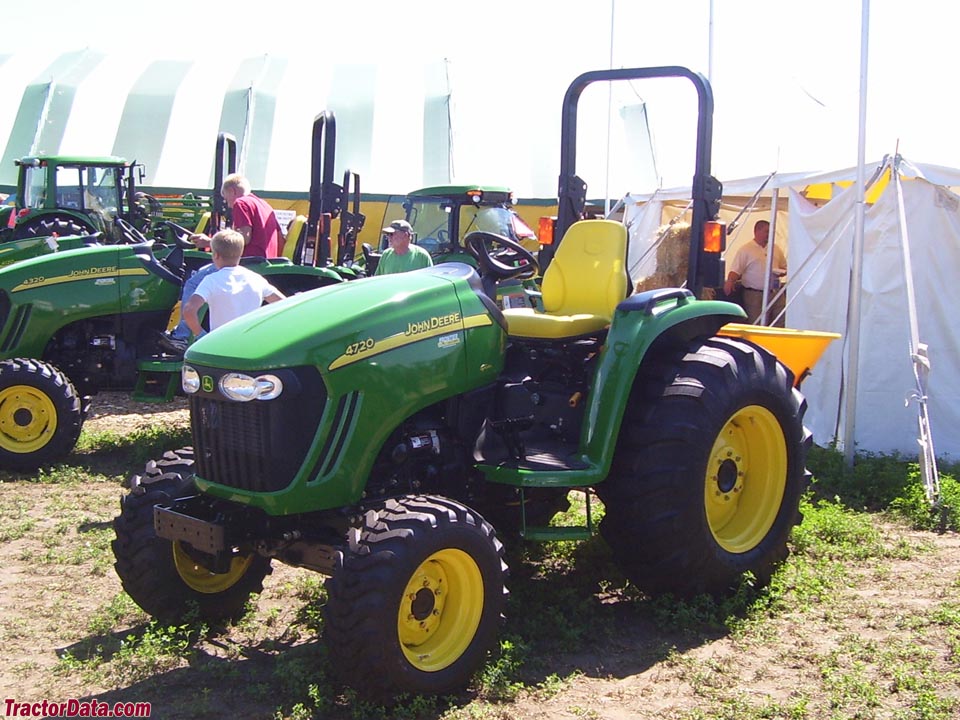

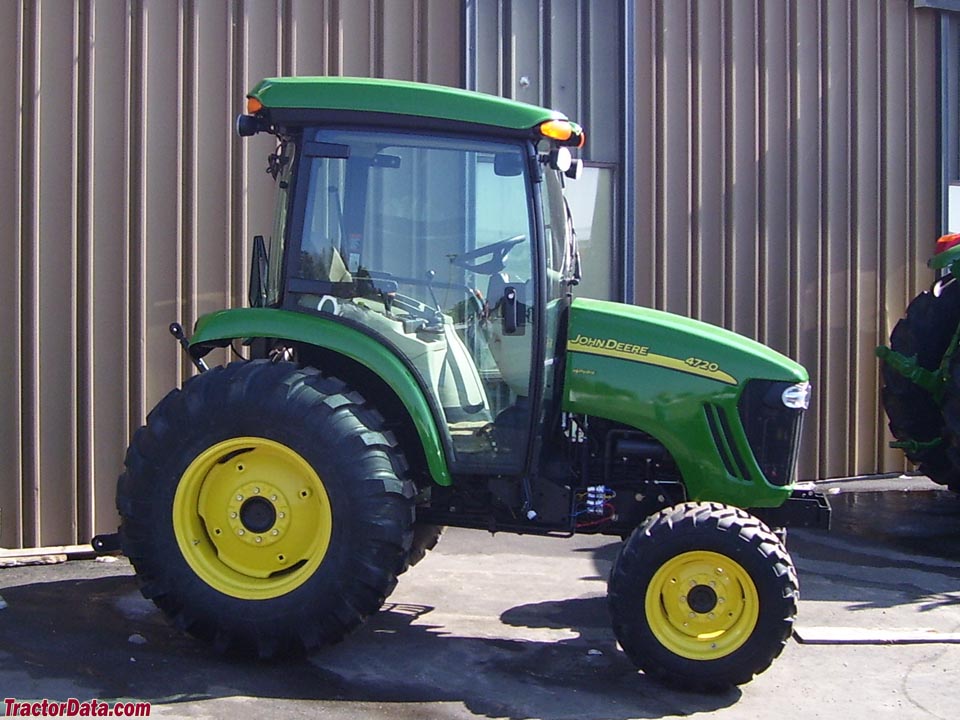

Two-post foldable ROPS. Cab optional with heat and air-conditioning.Reference
Engine
John Deere 2.4L 4-cyl dieselReference
Engine43.3 kWReference
John Deere 4024TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled verticalReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Power43.3 kWReference
Air cleanerpaper and felt elementsReference
Compression20.5:1Reference
Rated RPM2400Reference
Torque210.2 NmReference
Torque RPM1440Reference
Starter volts12Reference
Starter power2.2 kWReference
ROPS Coolant capacity6.1 LReference
Cab Coolant capacity8.3 LReference
Oil capacity7.5 LReference
Power at rated engine speed38.6 kWReference
Transmission
hydrostaticReference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite 3-range forward and reverseReference
Oil capacity36.3 LReference
Oil type[37oC]Reference
0oF [-17oC]↑: Deere HY-GARDReference
100oF [37oC]↓: Low-visc HY-GARDReference
100oF [37oC]↓JDM J20CReference
100oF [37oC]↓J20DReference
The eHydro uses a three-position range lever and two foot pedals, one for forward and one for reverse. The foot pedals must be released, and tractor stopped, to change range. The eThrottle feature allows the tractor to automatically manage engine speed.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
PTO (tested)38.6 kWReference
Hydraulic system36.3 LReference
Typeopen centerReference
Capacity36.3 LReference
Pressure172.4 barReference
Pump flow45.4 lpmReference
Total flow64.7 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1134 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Power at rated PTO speed38.6 kWReference
Capacities
ROPS Fuel54.9 LReference
Cab Fuel52.2 LReference
Max capacity4000 kgReference
Dimensions
Wheelbase181 cmReference
Weight1750 kgReference
Front tire8.00-16Reference
Rear tire13.6-28Reference
Weight203 kgReference
Weight662 kgReference
Ag front8.00-16Reference
Ag rear13.6-28Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf front27x12LL-15Reference
Lawn/turf rear44x18.00-20Reference
Lawn/turf rear22.5LL-16.1Reference
Industrial front10.00-16.5Reference
Industrial rear17.5L-24Reference
Length325 cmReference
Width166 cmReference
Width233 cmReference
Operating1750 kgReference
Max Drawbar500 kgReference
John Deere 4720 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
4720 Serial Number Location
Serial number on the righty side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery CCA770Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference

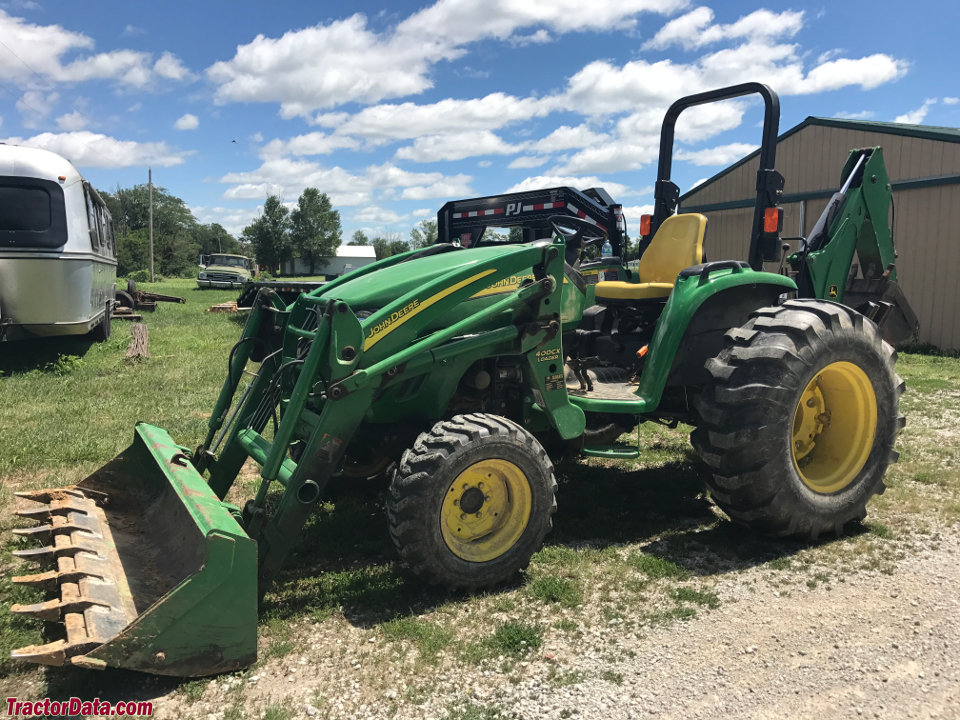

John Deere 400X loaderReference
John Deere 400CX loaderReference
BackhoeReference
72" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference
Cut height2 to 24 cmReference
John Deere 485 Backhoe
Backhoe typeJohn Deere 485 BackhoeReference
Transport height228 cmReference
Digging depth266 cmReference
Reach from pivot360 cmReference
Loading height223 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
John Deere 4720 Height
Hood157 cmReference
ROPS246 cmReference
Cab234 cmReference
Test results
Diesel eHydro 4WDAugust 31 - September 2, 2005Link: Nebraska Tractor Test 1855 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Speeds
With 16.3-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
