Tractor · 1992Unverified

John Deere 4760

Name: John Deere 4760
Brand: John Deere

John Deere 4760 — Row-Crop tractor · 177 hp. Reference specifications; pending source verification.

The John Deere 4760 is a tractor with an engine rating of approximately 177 horsepower, placing it at the higher power end of its class. It was produced from 1992 to 1994. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a mechanical front-wheel drive system and a powershift transmission. Its listed operating weight is 8483 kg, suitable for operations covering 600-1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

177 hp

Max power

133.5 kW

Weight

8483 kg

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

177 hp

Recorded weight

8483 kg

Transmissions

16-speed partial power shift

Production years

1992-1994

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Sound-Gard cab standard.Reference

Engine

John Deere 7.6L 6-cyl dieselReference

Drawbar (tested)117.1 kWReference

John DeereReference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inline valve-in-headReference

Displacement7.6 LReference

Bore/Stroke116 x 121 mmReference

Air cleanerdual dry elementReference

Compression15.5:1Reference

Rated RPM2200Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity30.3 LReference

Max power133.5 kWReference

Power at rated engine speed132.0 kWReference

Max power110.2 kWReference

Max power134.5 kWReference

Power at rated engine speed132.1 kWReference

Max power117.1 kWReference

Transmission

16-speed partial power shiftReference

15-speed full power shiftReference

TransmissionJohn Deere Quad RangeReference

Typepartial power shiftReference

Gears16 forward and 6 reverseReference

ClutchPerma-Clutch hydraulic wet discReference

Four gears (1-4) in four ranges (A-D) with high-low power shift.Reference

TransmissionJohn Deere Power ShiftReference

Typefull power shiftReference

Gears15 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)130.5 kWReference

PTO (tested)134.5 kWReference

Hydraulic system74.9 LReference

Typeclosed centerReference

Capacity74.9 LReference

Pressure174.4 barReference

Rear valves3 or 4Reference

Pump flow133.2 lpmReference

Pump flow119.6 lpmReference

Rear Type3/3NReference

Controlelectrohydraulic draft sensingReference

Rear lift3757 kgReference

Rear lift4554 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel386.1 LReference

Dimensions

2WD Wheelbase300 cmReference

4WD Wheelbase297 cmReference

Weight8483 kgReference

Width300 cmReference

Height301 cmReference

Shipping weight8483 kgReference

Front axle2WDReference

Front axleCaster/Action MFWDReference

Rack-and-pinion rear axleReference

Rear tread152 to 340 cmReference

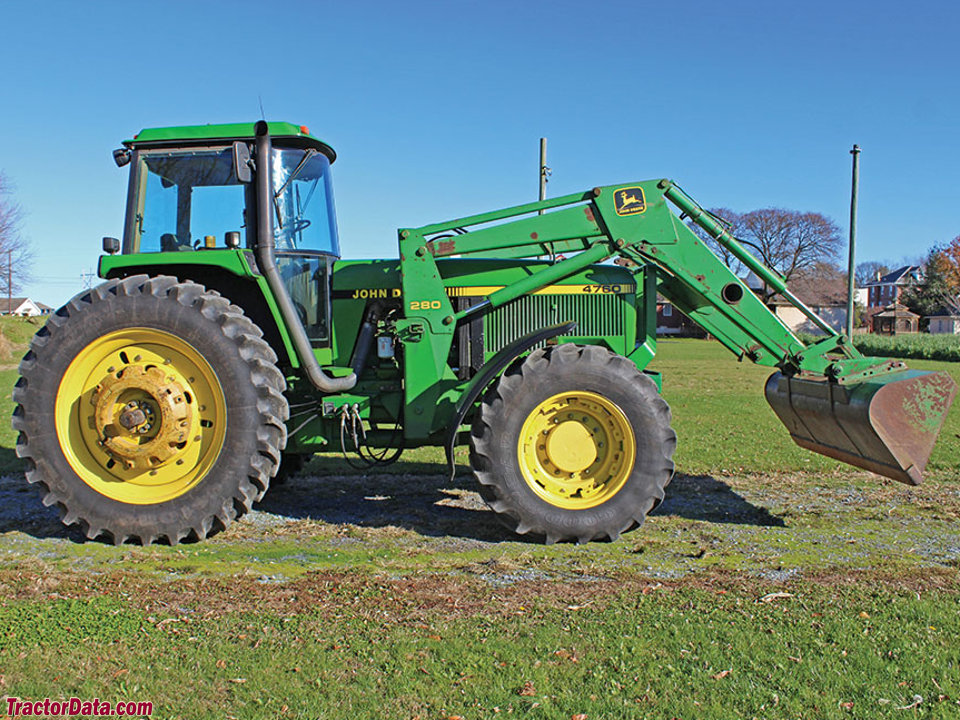

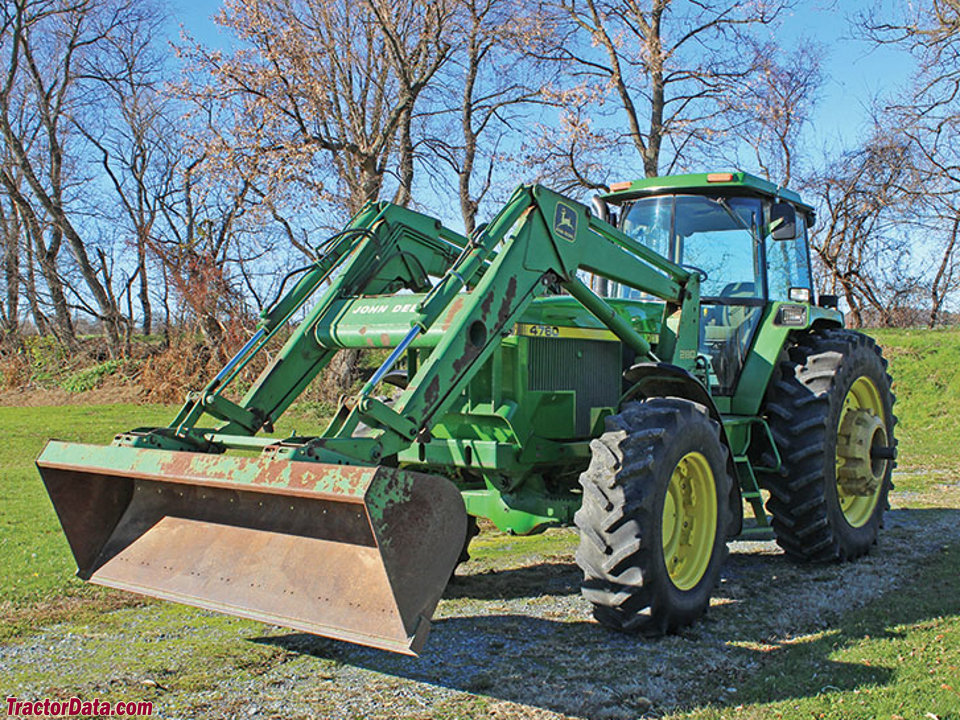

John Deere 4760 attachments

front-end loaderReference

4760 Serial Numbers

Location:Rear of transmissionReference

19921001Reference

19932941Reference

19945701Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Test results

OECD 1621: diesel Powershift 4WDReference

OECD 1630: diesel Quad-Range 2WDReference

Diesel Powershift 4WDApril 1 - May 1, 1989Link: OCED Tractor Test 1621 fileReference

PTO performanceReference

Fuel use36.3 l/hourReference

Fuel use36.7 l/hourReference

Drawbar performanceReference

Gear 12 used for power test.Reference

Max pull9743 kgReference

Gear 3 used for pull test.Reference

Diesel Quad-Range 2WDSeptember 1 - October 1, 1989Link: OCED Tractor Test 1630 fileReference

Max pull9025 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
