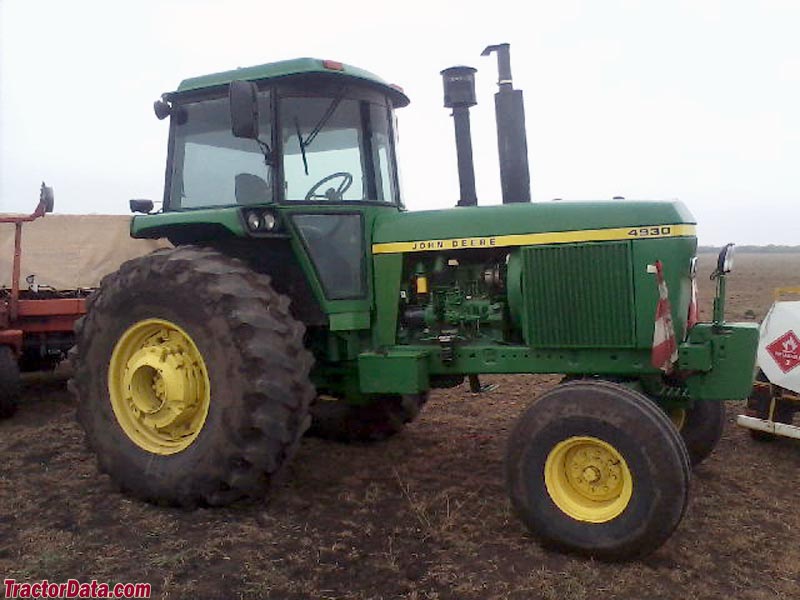

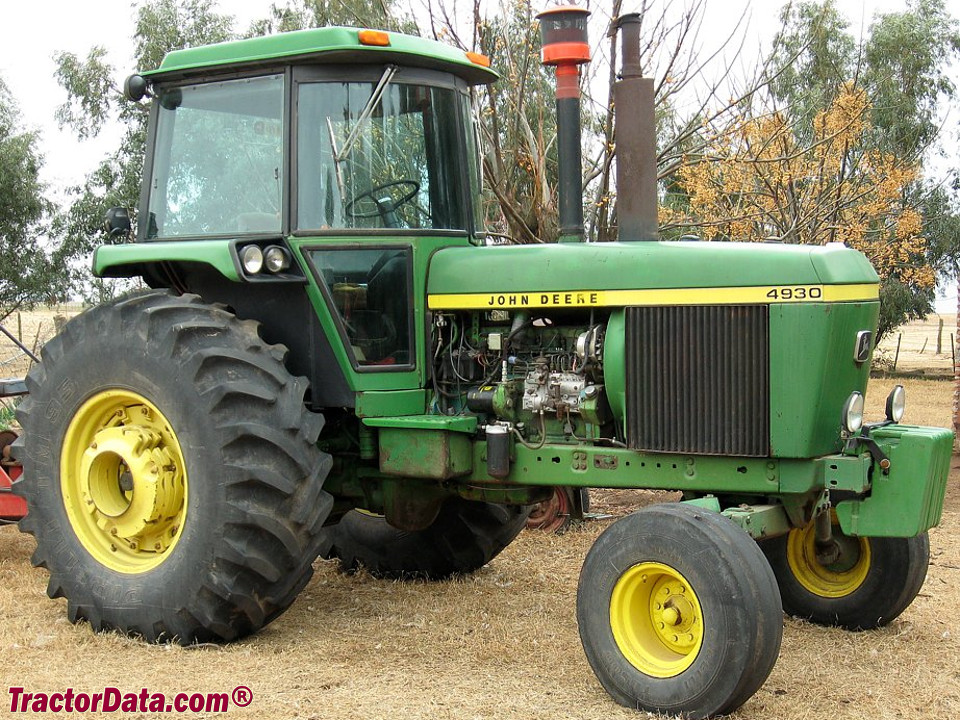

John Deere 4930
John Deere 4930 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
10523 to 11523 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
The John Deere 4930 was the similar to the US model 4440, exported to Argentina from the United States.Reference
Drive4x2 2WDReference
Drive4x4 HFWD 4WDReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Sound Gard cab with air-conditioning optional.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Fuel tank246.0 LReference
Engine119.3 kWReference
John DeereReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power119.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingether injectionReference
Rated RPM2200Reference
Idle RPM800-2400Reference
Operating RPM1500-2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity34.1 LReference
Transmission
16-speed partial power shiftReference
8-speed full power shiftReference
TransmissionQuad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
Clutchhydraulic wet discReference
Four gears (1-4) in four ranges (A-D). Power shift between pairs 1-2 and 3-4 in each range, with synchronized shift between 2-3. Two reverses in ranges A-C. Tractor must be stopped, and clutch used, to shift ranges. Power shift is provided hy a hydraulically-controlled planetary that provides an under-drive to each gear.Reference
TransmissionPower ShiftReference
Typefull power shiftReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Typeclosed centerReference
Pressure155.1 barReference
2WD Pump flow87.1 lpmReference
4WD Pump flow100.3 lpmReference
Rear TypeIII/IIINReference
Controlposition and draft controlReference
Rear PTOindependentReference
Clutchhydraulic wet discsReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Dimensions
Wheelbase271 cmReference
Weight10523 to 11523 poundsReference
Front tire10.00-15Reference
Rear tire23.1x30Reference
Ag front10.00-15Reference
Ag front11.00-16Reference
Ag rear23.1x30Reference
Ag rear24.5x32Reference
Ag rear18.4x36 (duals)Reference
Length402 cmReference
Width228 cmReference
Height297 cmReference
Front tread141 to 232 cmReference
Rear tread172 to 279 cmReference
2WD Shipping4773 kgReference
4WD Shipping5226 kgReference
Ballasted8401 kgReference
4930 Serial Number Location

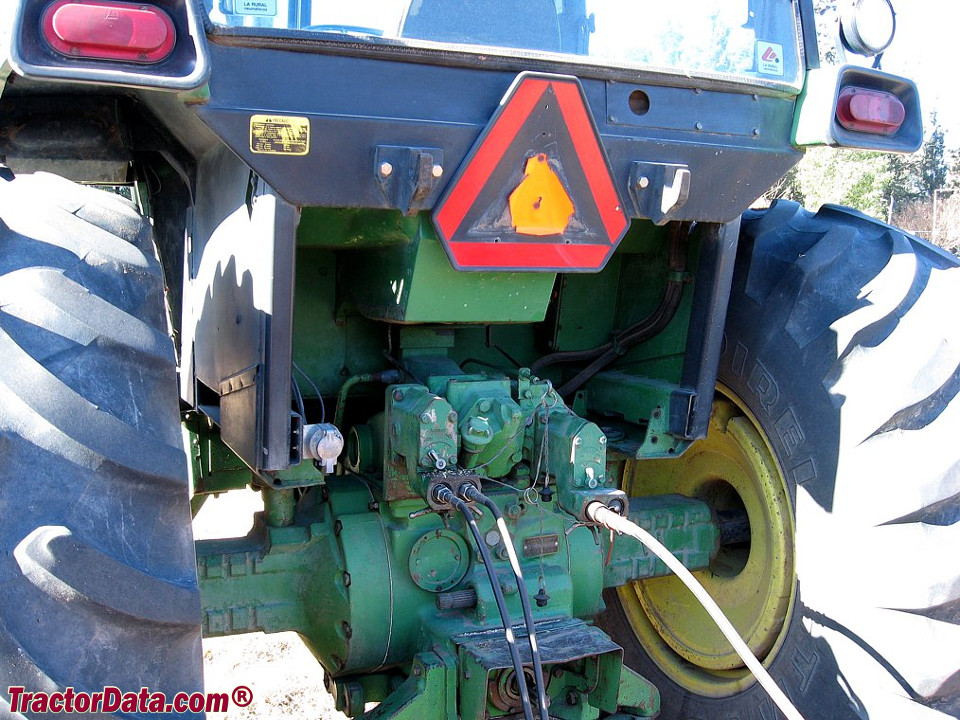

Serial number plate on the rear of the 4930, above the PTO shaft.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps61Reference
Cab Charging amps72Reference
Batteries2Reference
Battery CCA800Reference
Battery volts6Reference
Battery Group5DReference
Speeds
With 24.5x32 rear tires.Reference
