Tractor · 1992Unverified

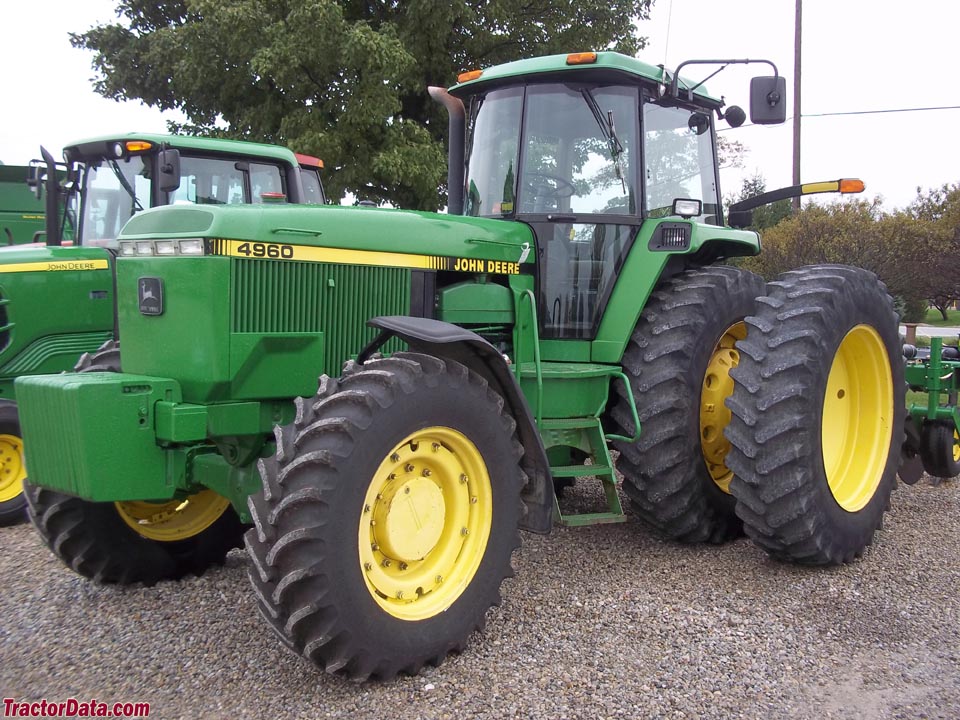

John Deere 4960
John Deere 4960 — Row-Crop tractor · 203 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
203 hp
Max power
156.6 kW
Weight
18978 to 19000 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Sound-Gard cab standard.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Drawbar (tested)131.6 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inline valve-in-headReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Air cleanerdual dry elementReference
Compression15.5:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity30.3 LReference
Max power156.6 kWReference
Power at rated engine speed151.2 kWReference
Max power131.6 kWReference
Transmission
15-speed full power shiftReference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
Oil capacity75.0 LReference
Standard transmission.Reference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)156.6 kWReference
Hydraulic system74.9 LReference
Typeclosed centerReference
Capacity74.9 LReference
Pressure174.4 barReference
Rear valves3 or 4Reference
Pump flow115.8 lpmReference
Rear Type3/3NReference
Controlelectrohydraulic draft sensingReference
Rear lift4554 kgReference
Rear lift5340 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel386.1 LReference
Dimensions
Wheelbase300 cmReference
Wheelbase297 cmReference
Weight18978 to 19000 poundsReference
Width300 cmReference
Height301 cmReference
Front axle2WDReference
Front axleCaster/Action MFWDReference
Rack-and-pinion rear axleReference
Rear tread152 to 340 cmReference
Shipping8608 kgReference
Operating8618 kgReference
Ballasted11188 kgReference
John Deere 4960 attachments
front-end loaderReference
4960 Serial Numbers
Location:Rear of transmissionReference
19921001Reference
19934535Reference
19947901Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel Powershift 4WDApril 1 - June 1, 1989Link: OCED Tractor Test 1622 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Fuel use41.6 l/hourReference
Drawbar performanceReference
Fuel use42.0 l/hourReference
Gear 12 used for power test.Reference
Max pull10757 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
