Tractor · 1965Unverified

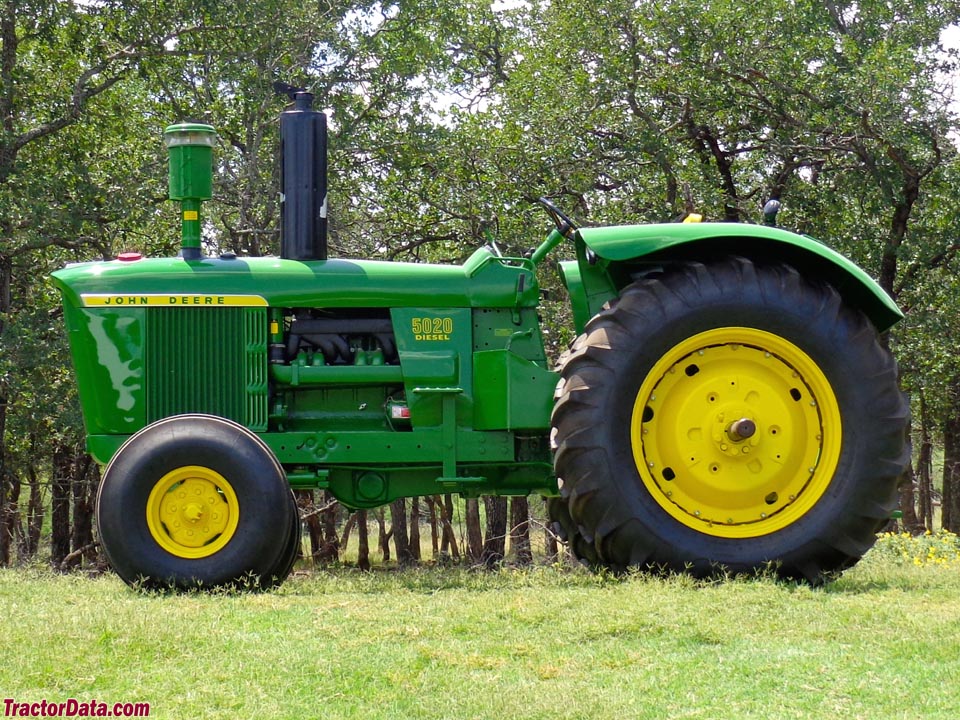

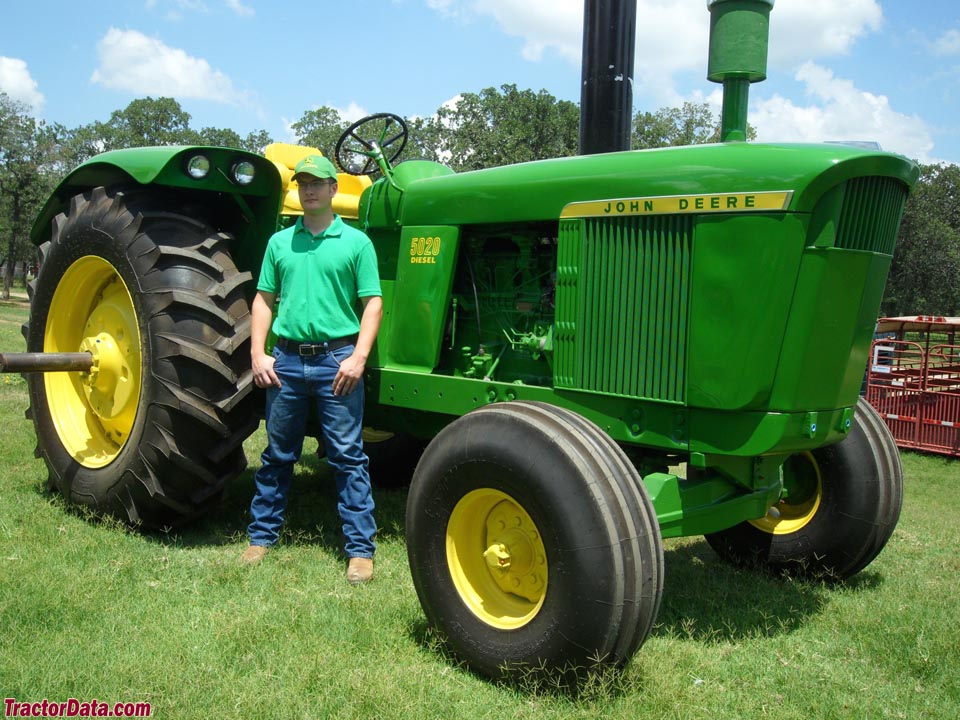

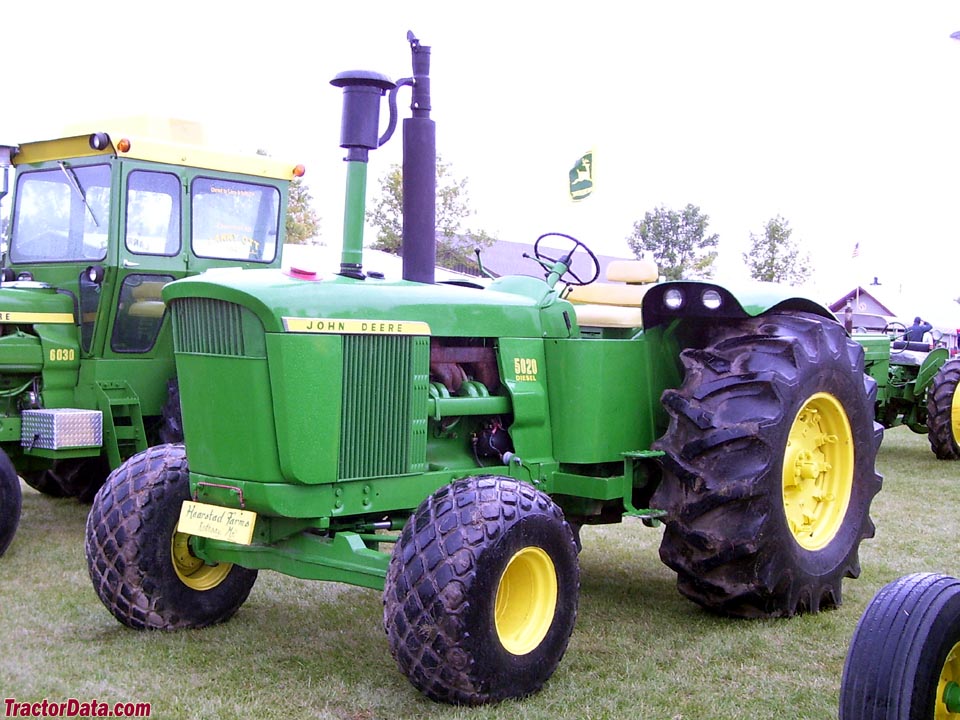

John Deere 5020
John Deere 5020 — New Generation Series · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Max power
84.8 kW
Weight
14510 to 17350 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Total built12,909 totalReference
Total built7,103 standardReference
Total built5,806 row-cropReference
Original price was $15,000 in 1972Reference
Two-wheel driveReference
SteeringpowerReference
Differential hydraulic wet disc brakesReference
Cab optional with heat and airReference
Engine
John Deere 8.7L 6-cyl dieselReference
Drawbar (tested)90.9 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke121 x 127 mmReference
Compression16.5:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts24 (early)Reference
Starter volts12 (late)Reference
Oil capacity19.9 LReference
Coolant capacity31.2 LReference
Intake valve clearance0.457 mmReference
Exhaust valve clearance0.711 mmReference
Power at rated engine speed99.4 kWReference
Max power84.8 kWReference
Power at rated engine speed105.4 kWReference
Max power90.9 kWReference
Transmission
8-speed partially synchronizedReference
TransmissionJohn Deere Syncro-RangeReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)105.4 kWReference
Hydraulic system60.6 LReference
Typeclosed centerReference
Capacity60.6 LReference
Valves1 or 2Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@1900Reference
Power at rated PTO speed91.5 kWReference
Power at rated PTO speed95.8 kWReference
Capacities
Fuel257.4 LReference
Dimensions
Wheelbase264 cmReference
Weight14510 to 17350 poundsReference
Front tire9.50-20Reference
Rear tire18.4-38 (row-crop)Reference
Standard tires (ag)Front: 9.50-20. Rear: 18.4-38 (row-crop)Reference
Standard tires (ag)Front: 11.00-16. Rear: 24.5-32 (standard)Reference
Length437 cmReference
Width243 cmReference
Height (steering wheel)209 cmReference
Height (exhaust)249 cmReference
Clearance (front axle)43 cmReference
Front tread163 to 207 cmReference
Rear tread152 to 304 cmReference
Shipping6581 kgReference
Shipping7339 kgReference
Operating7869 kgReference
Ballasted8904 kgReference
5020 Serial Numbers
196612000Reference
196715550Reference
196820399Reference
196924039Reference
197026624Reference
197130003Reference
197230613Reference
Final31130Reference
FAQ: How to read a serial number table.Reference
Questions
I noticed some weird discrepancies in the JD 5020 Tests section between NTTL 947 & 1025. The max pull is much higher for the earlier engine despite having lower HP. I looked through the test and realized the 947 tests were performed with much higher ballast weight. I'm curious if you know anything about why Nebraska would do that? In that era, the manufacturer was able to pick the ballast for the drawbar tests (in the modern test, no ballast is allowed). I would guess that Deere was going for a higher drawbar power rating, which they achieved by running faster. Drawbar power was often used in the sales literature but almost no one used maximum pull (except crawlers).Reference
Test results
NTTL 947: diesel 8-speed 2WDReference
NTTL 1025: diesel 8-speed 2WDReference
Diesel 8-speed 2WDSeptember 24 - October 1, 1966Link: Nebraska Tractor Test 947 fileReference
PTO performanceReference
Fuel use31.0 l/hourReference
Fuel use27.6 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull7346 kgReference
Gear 1 used for pull test.Reference
Diesel 8-speed 2WDOctober 1 - 16, 1969Link: Nebraska Tractor Test 1025 fileReference
Fuel use34.4 l/hourReference
Fuel use30.3 l/hourReference
Fuel use34.1 l/hourReference
Max pull6780 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
