Tractor · 2009Unverified

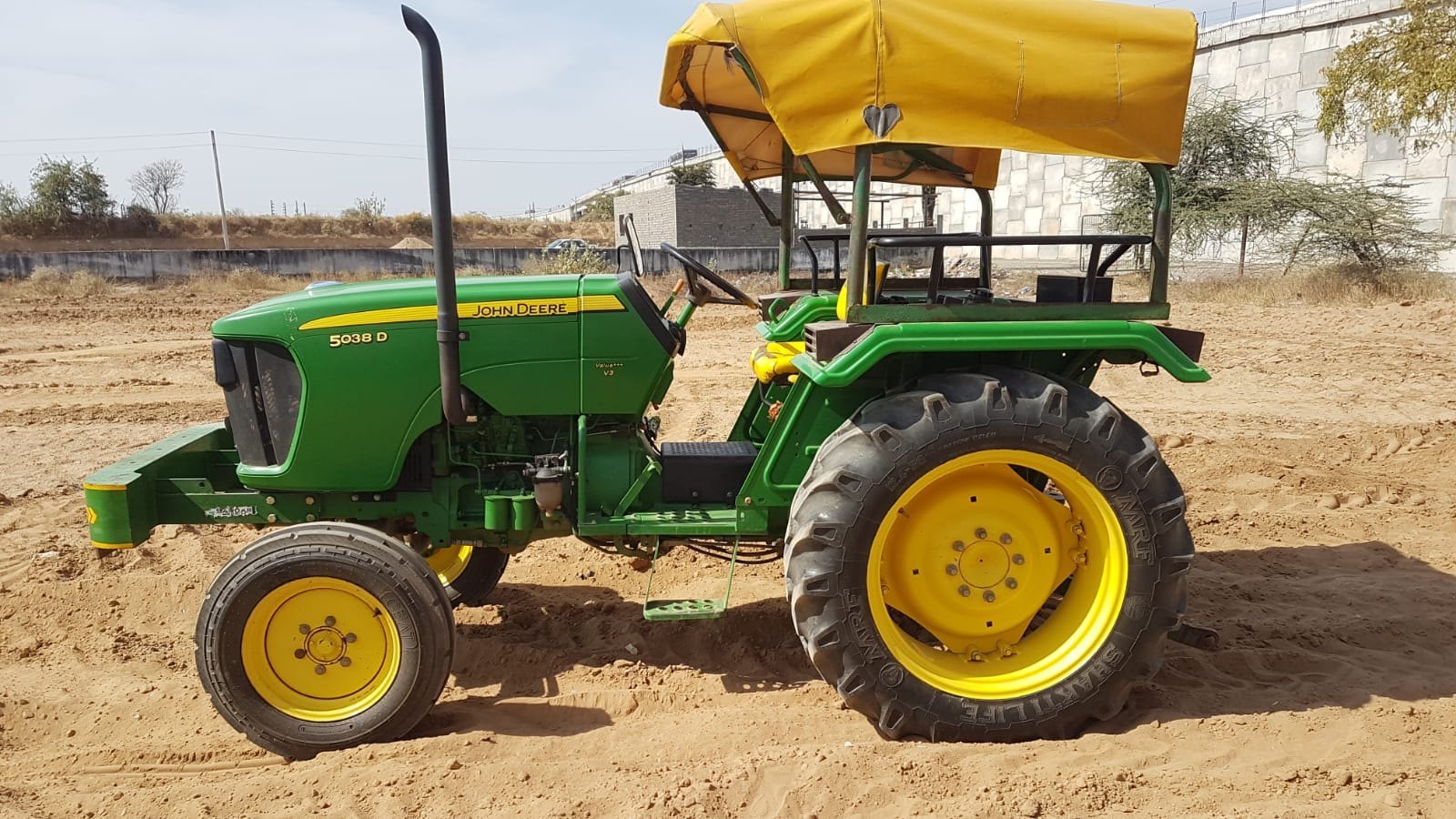

John Deere 5038D

Name: John Deere 5038D
Brand: John Deere

John Deere 5038D — 5D Series · 34 hp. Reference specifications; pending source verification.

The John Deere 5038D is a tractor model with a rated power of 34 hp, positioning it at the lighter end of its class. Manufactured in 2009, this model is equipped with a 3-cylinder diesel liquid-cooled engine and two-wheel drive, paired with an 8-speed gearbox. Its listed operating weight is 1794 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

1794 kg

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

34 hp

Recorded weight

1794 kg

Transmissions

8-speed collar shift gear

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Built in Pune, Maharashtra, IndiaReference

Two-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Mechanical wet disc brakesReference

Open operator station. ROPS optional.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Engine28.3 kWReference

John Deere 3029DReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power28.3 kWReference

Compression18.5:1Reference

Rated RPM2300Reference

Idle RPM850-2500Reference

Operating RPM1400-2300Reference

Torque147.0 NmReference

Torque RPM1500Reference

Firing order1-2-3Reference

Starter volts12Reference

Starter power2.5 kWReference

Oil capacity8.5 LReference

Transmission

8-speed collar shift gearReference

Typecollar shift gearReference

Gears8 forward and 4 reverseReference

Oil capacity35.0 LReference

Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference

PTO & Hydraulics

PTO (claimed)25.4 kWReference

Hydraulic system34.8 LReference

Typeopen centerReference

Capacity34.8 LReference

Pump flow25.0 lpmReference

Steering flow25.0 lpmReference

Rear TypeIIReference

Rear lift (at ends)1399 kgReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2200Reference

Capacities

Fuel60.0 LReference

Dimensions

Wheelbase195 cmReference

Weight1794 kgReference

Front tire6.0x16Reference

Rear tire12.4x28Reference

Ag front6.0x16Reference

Ag rear12.4x28Reference

Ag rear13.6x28Reference

Length328 cmReference

Width174 cmReference

Height (exhaust)219 cmReference

Ground clearance38 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Battery AH88Reference

Speeds

With 13.6x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
