Tractor · 2015Unverified

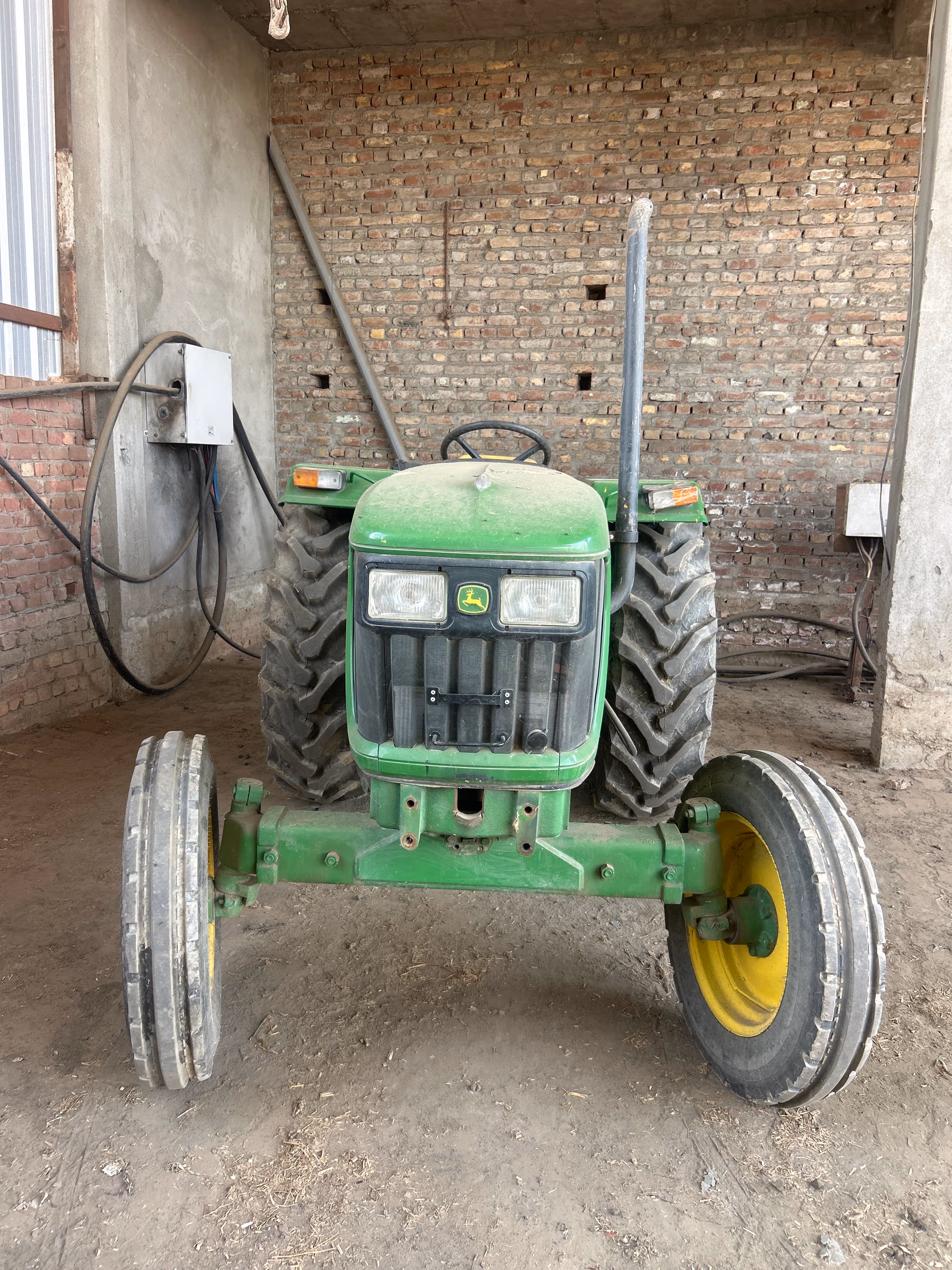

John Deere 5039C

Name: John Deere 5039C
Brand: John Deere

John Deere 5039C — 5C Series · 34 hp. Reference specifications; pending source verification.

The John Deere 5039C is a compact tractor with a rated power output of 34 horsepower. Manufactured in 2015, it features a 3-cylinder diesel liquid-cooled engine, which drives through two-wheel drive via an 8-speed gearbox. The tractor has a listed weight of 1730 kg, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

1730 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

34 hp

Recorded weight

1730 kg

Transmissions

8-speed collar shift gear

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Built in Pune, Maharashtra, IndiaReference

Two-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Wet disc brakesReference

Open operator station.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Fuel tank45.0 LReference

Engine29.1 kWReference

John Deere 3029DReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power29.1 kWReference

Compression17.8:1Reference

Rated RPM2100Reference

Firing order1-2-3Reference

Starter volts12Reference

Starter power2.5 kWReference

Transmission

8-speed collar shift gearReference

Typecollar shift gearReference

Gears8 forward and 2 reverseReference

Four gears (1-4), plus reverse (R), in two ranges (A/B). Tractor must be stopped, and clutch used, to shift gear or range.Reference

PTO & Hydraulics

PTO (claimed)25.4 kWReference

Typeopen centerReference

Pump flow20.1 lpmReference

Steering flow17.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)1000 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1575Reference

Dimensions

Wheelbase186 cmReference

Weight1730 kgReference

Front tire6.0x16Reference

Rear tire12.4x28Reference

Ag front6.0x16Reference

Ag rear12.4x28Reference

Ag rear13.6x28Reference

Length292 cmReference

Width173 cmReference

Ground clearance37 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Battery AH88Reference

Speeds

With 13.6x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
