Tractor · 2015Unverified

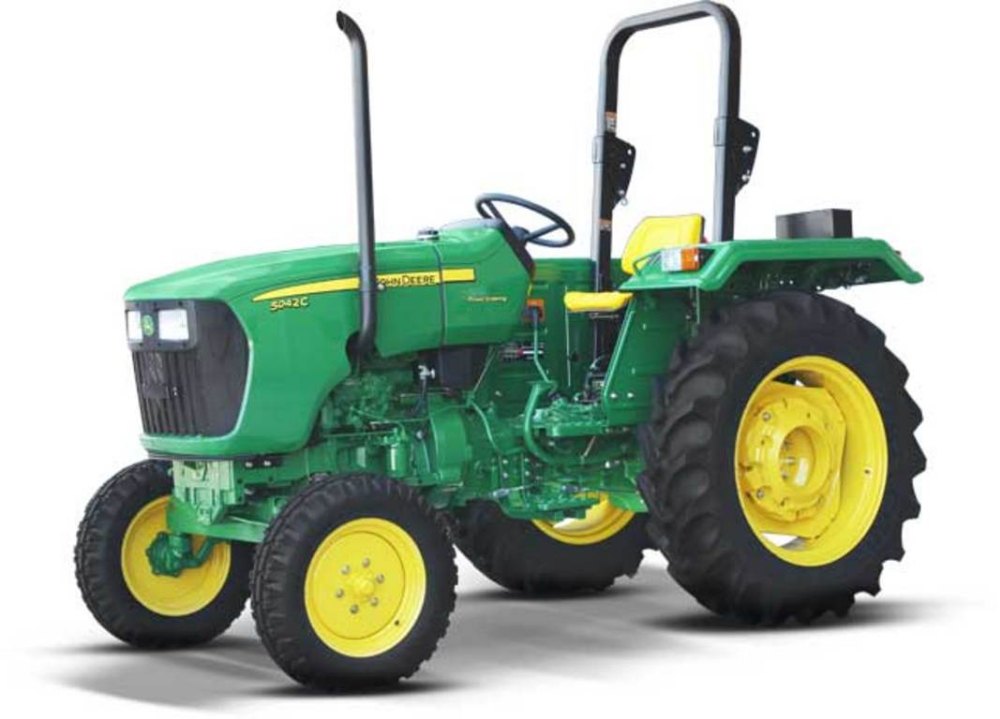

John Deere 5042C
John Deere 5042C — 5C Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1730 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Open operator station.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine31.3 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power31.3 kWReference
Compression17.8:1Reference
Rated RPM2100Reference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.5 kWReference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 2 reverseReference
Four gears (1-4), plus reverse (R), in two ranges (A/B). Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Typeopen centerReference
Pump flow20.1 lpmReference
Steering flow17.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)1000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1575Reference
Dimensions
Wheelbase186 cmReference
Weight1730 kgReference
Front tire6.0x16Reference
Rear tire12.4x28Reference
Ag front6.0x16Reference
Ag rear12.4x28Reference
Ag rear13.6x28Reference
Length292 cmReference
Width173 cmReference
Ground clearance37 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
