Tractor · 2008Unverified

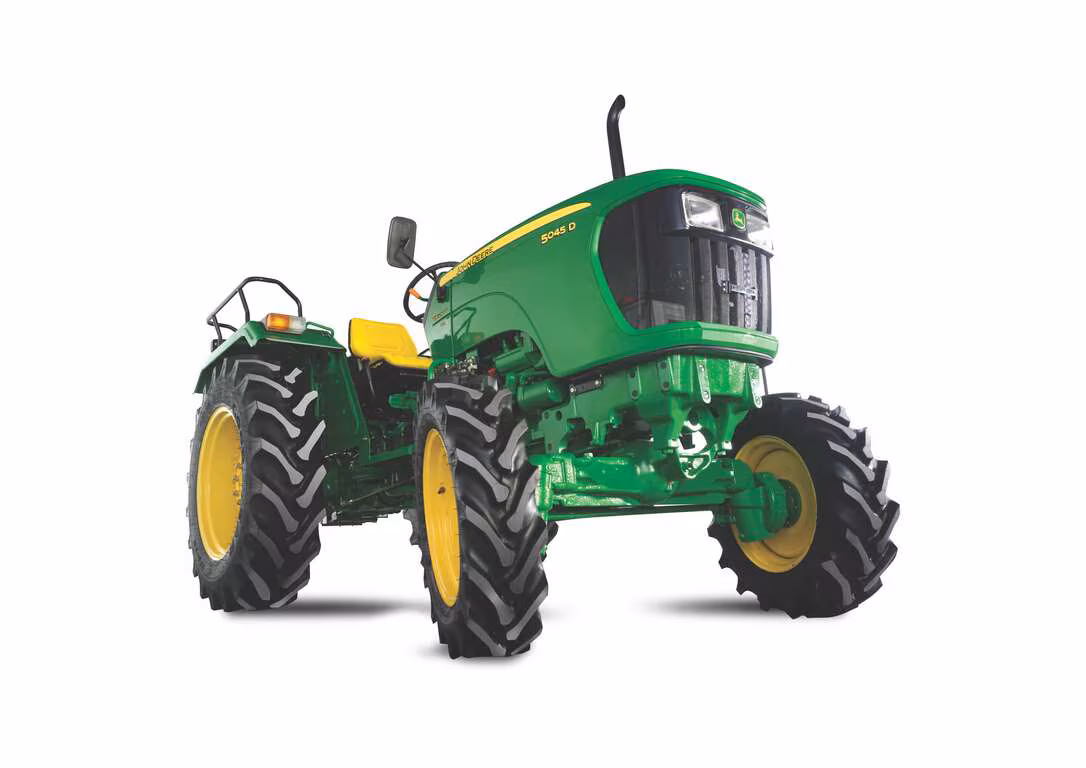

John Deere 5045D

Name: John Deere 5045D
Brand: John Deere

John Deere 5045D — 5D Series · 45 hp. Reference specifications; pending source verification.

The John Deere 5045D is a tractor with a power rating of approximately 45 hp, positioning it at the lighter end of its class. It was manufactured from 2008 to 2014. Equipped with a 3-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, the tractor features a hydrostatic transmission. Its operating weight is specified as 1900 kg, supporting operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Max power

45 hp

Weight

1900 kg

Catalogue coverage

Variants represented

Richest spec table

112 rows

Recorded power

45 hp

Recorded weight

1900 kg

Transmissions

8-speed

Production years

2008-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Pune, Maharashtra, IndiaReference

Original price was $17,233 in 2014Reference

Two-wheel driveReference

Final drivesplanetaryReference

Differential lockrear diff lock standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Folding 2-post ROPSReference

Variants

5045D2WD EconomyReference

5045E4WD Mid-specReference

Engine

John Deere 2.9L 3-cyl dieselReference

Fuel tank60.6 LReference

Engine (gross)33.6 kWReference

John Deere PowerTech 3029Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Rated Power (gross)33.6 kWReference

Air cleanertwo paper elementsReference

Rated RPM2300Reference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,300 RPMReference

Engine torque at rated speed49.5 kgReference

Bore and stroke4.19x4.33 inchesReference

Compression ratio18.5:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speedReference

TransmissionSyncReverserReference

Gears8 forward and 4 reverseReference

Clutchdry discReference

Four gears in each of high (B), low (A), and reverse ranges. Synchronized shift between A and R ranges. Other shifts not synchronized.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionsSyncReverser-8 F and 4RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)27.6 kWReference

Typeopen centerReference

Pressure195.0 barReference

Rear valves1 or 2Reference

Mid valves2 (optional)Reference

Pump flow41.3 lpmReference

Total flow65.9 lpmReference

Steering flow24.6 lpmReference

Steering press.135.0 barReference

Rear Type2Reference

Controlposition and top-link draft controlReference

Rear lift (at 24"/610mm)1274 kgReference

Rear PTOindependentReference

ClutchmechanicalReference

Rear PTO Type540Reference

Dimensions

Wheelbase195 cmReference

Weight1900 kgReference

Front tire7.5-16Reference

Rear tire13.6-28Reference

Ag front7.5-16Reference

Ag rear13.6-28Reference

Ag rear14.9-28Reference

Ag rear16.9-28Reference

Lawn/turf front27/12LL-15Reference

Lawn/turf rear21.5L-16.1Reference

Industrial front11L-15Reference

Industrial rear16.9-24Reference

Length340 cmReference

Width145 cmReference

Shipping weight1900 kgReference

Clearance (front axle)47 cmReference

Front axleFlangeReference

John Deere 5045D attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA623Reference

Battery volts12Reference

Attachment overview

John Deere 512 loaderReference

John Deere 553 loaderReference

John Deere 5045D Height

Hood136 cmReference

ROPS238 cmReference

ROPS192 cmReference

Speeds

With 13.6-28 rear tires.Reference

General

Make & ModelJohn DeereReference

Front Axle TypeFlangeReference

Rollover protective structureOpen operator station. ROPS optional.Reference

Country of manufacturerIndiaReference

Capacities

Capacity179 ciReference

Crankcase oil volume9 qtsReference

Power

Max Power45 hpReference

PTO

PTO Power37 hpReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,200 RPMReference

Steering & brakes

BrakesMechanical Wet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)17.4 gpmReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,828 psiReference

Remote Valves1 or 2Reference

Steering & Implements flow6.5 gpm (10.9 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity1,399.8 kgReference

Dimensions & weight

Height Over ROPS238.5 cmReference

Overall Length335 cmReference

Overall Width177.5 cmReference

Ground Clearance14.4 ( 4WD) inchesReference

Front axle clearance47.8 cmReference

Overall weight1,900.1 kgReference

Wheels & tyres

Rear Wheel Type14.9x28Reference

Front Wheel Type6.0x16Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
