Tractor · 2008Unverified

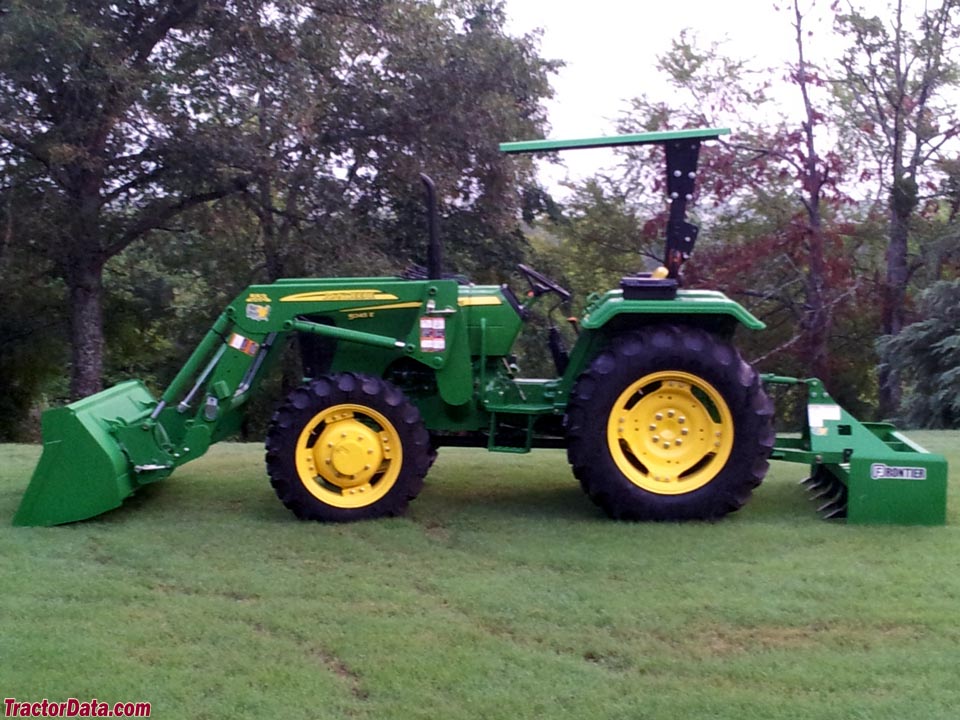

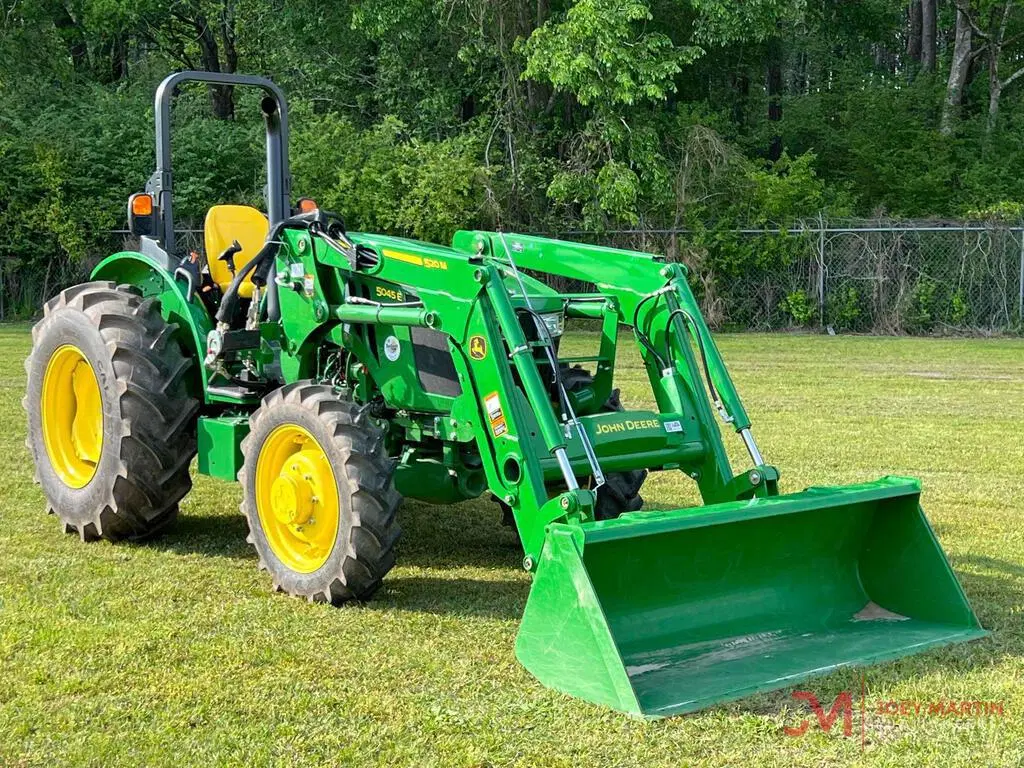

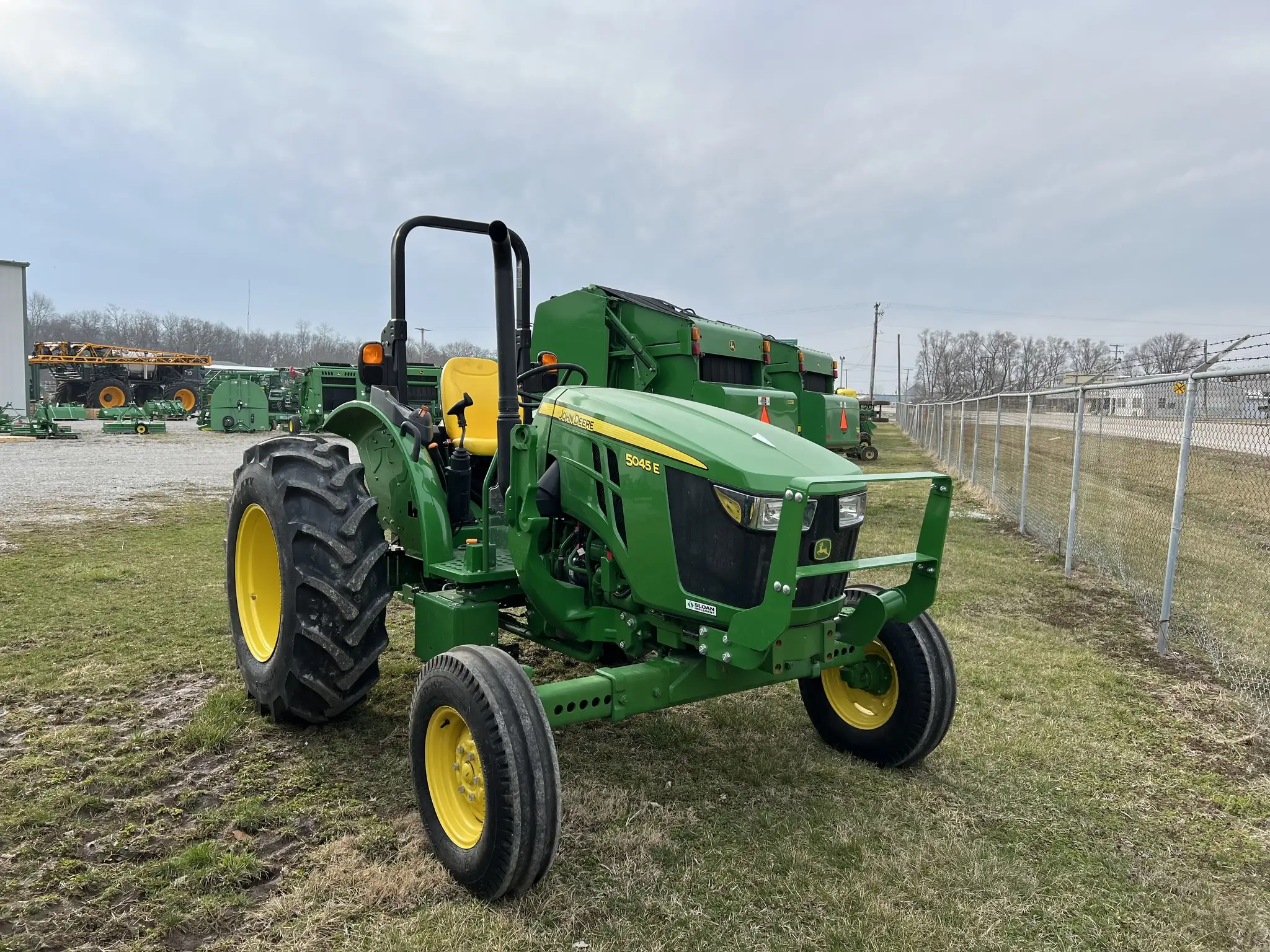

John Deere 5045E

Name: John Deere 5045E
Brand: John Deere

John Deere 5045E — Model year 2008-20122013-20142015-2022 · 45 hp. Reference specifications; pending source verification.

The John Deere 5045E is a tractor with a rated output of approximately 45 hp, positioned at the lighter end of its class. Produced from 2008 to 2022, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The 5045E has an operating weight of 2299 kg and is designed for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Max power

50 hp

Weight

2299 kg

Catalogue coverage

Variants represented

Richest spec table

132 rows

Recorded power

45 hp

Recorded weight

2299 kg

Transmissions

9-speed partially synchronized

Production years

2008-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Pune, Maharashtra, IndiaReference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Folding 2-post ROPSReference

Variants

5045D2WD EconomyReference

5045E4WD Mid-specReference

Engine

John Deere 2.9L 3-cyl dieselReference

Engine (gross)33.6 kWReference

John Deere PowerTech 3029TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Rated Power (gross)33.6 kWReference

Air cleanertwo paper elementsReference

Rated RPM2400Reference

Idle RPM800-2600Reference

Operating RPM1700-2400Reference

Torque184.0 NmReference

Torque RPM1700Reference

Firing order1-2-3Reference

Starter volts12Reference

Coolant capacity9.5 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.5 LReference

Oil change100 hReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed61.6 kgReference

Bore and stroke4.19x4.33 inchesReference

Compression ratio16.9:1Reference

Cooling systemliquid-cooledReference

Interval for engine oil change100 hrReference

Interval for engine coolant change10 qtsReference

Transmission

9-speed partially synchronizedReference

TransmissionSyncShuttleReference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Oil capacity39.0 LReference

Oil typeJD Hy-GardReference

Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models.Reference

Transmission TypeSync ShuttleReference

forward and reverse options9F and 3RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)27.6 kWReference

Hydraulic system39.0 LReference

Typeopen centerReference

Capacity39.0 LReference

Pressure195.0 barReference

Rear valves1 or 2Reference

Mid valves2Reference

Pump flow43.1 lpmReference

Total flow68.9 lpmReference

Steering flow25.7 lpmReference

Steering press.135.0 barReference

Rear Type2Reference

Controlposition and top-link draft controlReference

Rear lift (at 24"/610mm)1447 kgReference

Rear PTOindependentReference

ClutchmechanicalReference

Rear PTO Type540Reference

Capacities

Fuel68.1 LReference

Front axle4.5 LReference

Front hubs0.8 LReference

Fuel tank68.1 LReference

Crankcase oil volume9 qtsReference

Dimensions

Wheelbase204 cmReference

Weight2299 kgReference

Front tire8.3-24Reference

Rear tire13.6-28Reference

Ag front8.3-24Reference

Ag rear13.6-28Reference

Ag rear14.9-28Reference

Ag rear16.9-28Reference

Lawn/turf front9.5-16Reference

Lawn/turf rear21.5L-16.1Reference

Industrial front12.5/80-18Reference

Industrial rear16.9-24Reference

Length350 cmReference

Width145 cmReference

Shipping weight2299 kgReference

Clearance (front axle)34 cmReference

Front axleFlangeReference

John Deere 5045E attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA623Reference

Battery volts12Reference

Total cold cranking amps622 ampsReference

John Deere 5045E Height

Hood136 cmReference

ROPS238 cmReference

ROPS192 cmReference

Speeds

With 13.6-28 rear tires.Reference

General

Make & ModelJohn DeereReference

SCV controljoystickReference

Rear Axle TypeFlangeReference

Rollover protective structureTwo-post folding ROPSReference

Country of manufacturerIndiaReference

Power

Max Power50 hpReference

PTO

PTO Power37 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)18.2 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,828 psiReference

Remote Valves1 or 2Reference

Steering & Implements flow6.8 gpm (11.4 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity1,799.9 kgReference

Rear Hitch Sensing Typeposition and top-link draft controlReference

Dimensions & weight

Height Over ROPS245.6 cmReference

Overall Length350 cmReference

Overall Width145.5 cmReference

Front axle clearance47.8 cmReference

Overall weight2,449.9 kgReference

Wheels & tyres

Rear Wheel Type13.6-28 agReference

Rear wheel tread range55.8 to 71.1 inchesReference

Front Wheel Type7.5-16 agReference

Front Wheel tread range57 to 76.7 inchesReference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
