Tractor · 2012Unverified

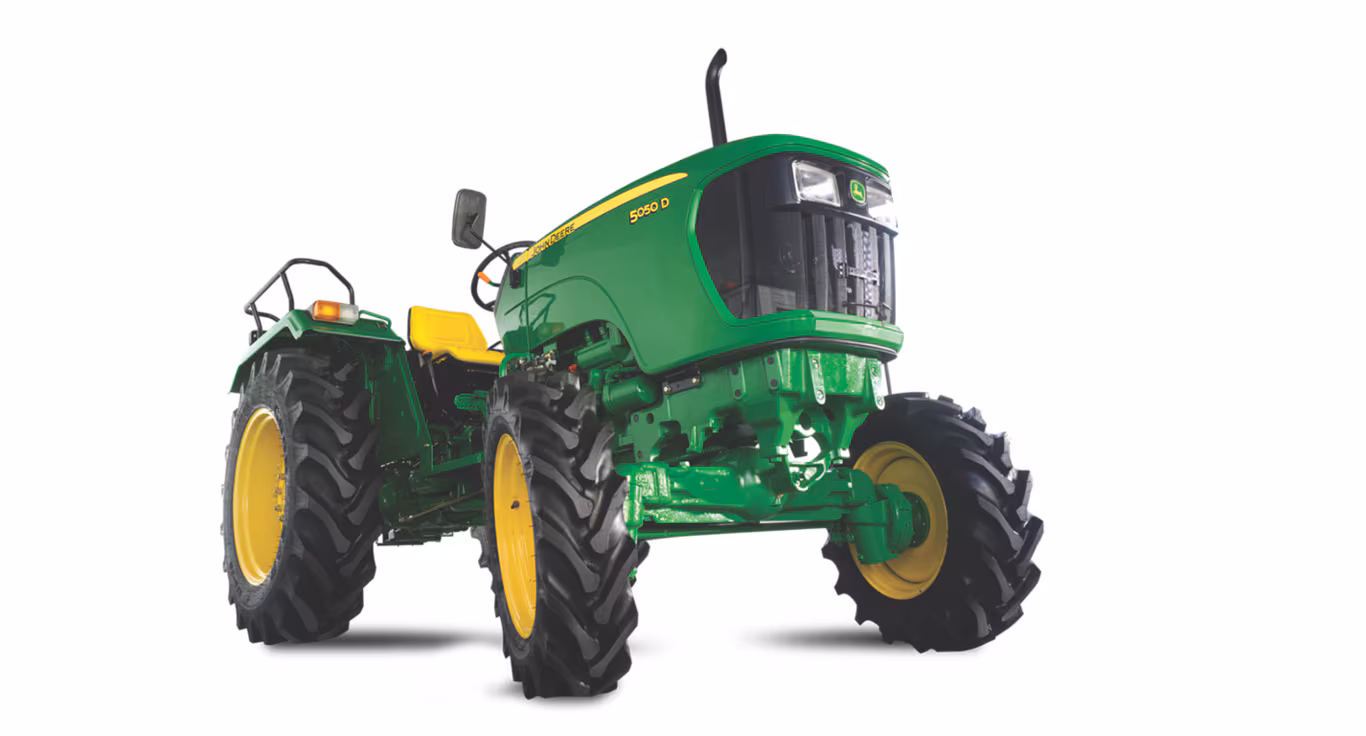

John Deere 5050D
John Deere 5050D — 5D Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1829 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station. ROPS optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
John Deere 2.9L 3-cylReference
Engine37.3 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power37.3 kWReference
Compression18.5:1Reference
Rated RPM2300Reference
Idle RPM850-2500Reference
Operating RPM1400-2300Reference
Torque148.1 NmReference
Torque RPM1600Reference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.5 kWReference
Oil capacity8.5 LReference
John Deere 3029TReference
turbochargedReference
The turbocharged 3029T engine was first advertised for the Deere 5050D in 2015.Reference
Torque192.0 NmReference
Torque RPM1200Reference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 4 reverseReference
Oil capacity35.0 LReference
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Pump flow25.0 lpmReference
Steering flow25.0 lpmReference
Rear TypeIIReference
Rear lift (at ends)1399 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Capacities
Fuel60.0 LReference
Dimensions
Wheelbase195 cmReference
Weight1829 kgReference
Front tire6.0x16Reference
Rear tire14.9x28Reference
Ag front6.0x16Reference
Ag front7.5x16Reference
Ag rear14.9x28Reference
Ag rear13.6x28Reference
Length337 cmReference
Width180 cmReference
Height (exhaust)221 cmReference
Ground clearance43 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
