Tractor · 2008Unverified

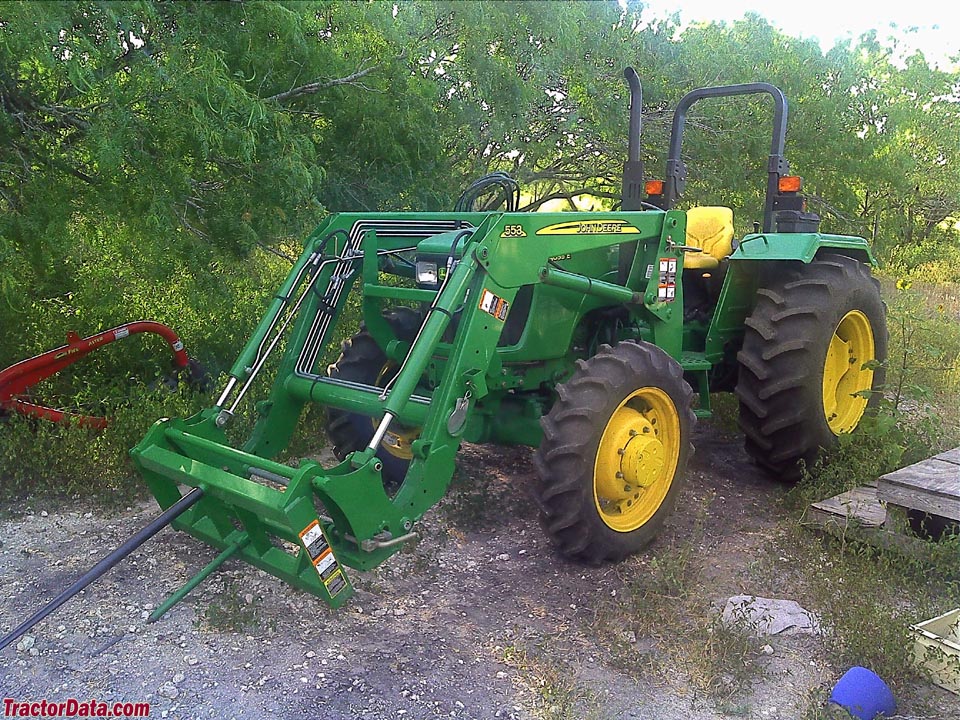

John Deere 5055E
John Deere 5055E — Model year 2008-20122013-20142015-2022 · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Max power
37.2 kW
Weight
5070 to 5505 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Pune, Maharashtra, IndiaReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockrear diff lock standardReference
Power steeringReference
Hydraulic wet disc brakesReference
Folding 2-post ROPSReference
Variants
5055D2WD EconomyReference
5055E4WD Mid-specReference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine (gross)41.0 kWReference
John Deere PowerTech 3029HReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Rated Power (gross)41.0 kWReference
Air cleanertwo paper elementsReference
Rated RPM2400Reference
Idle RPM800-2500Reference
Operating RPM1700-2300Reference
Torque215.1 NmReference
Torque RPM1700Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Max power37.2 kWReference
Power at rated engine speed35.5 kWReference
Transmission
9-speed partially synchronizedReference
TransmissionSyncShuttleReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity39.0 LReference
Oil typeJD Hy-GardReference
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models.tran1fwdReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (tested)37.2 kWReference
Hydraulic system39.0 LReference
Typeopen centerReference
Capacity39.0 LReference
Pressure195.0 barReference
Rear valves1 or 2Reference
Mid valves2Reference
Pump flow43.1 lpmReference
Total flow68.9 lpmReference
Steering flow25.7 lpmReference
Steering press.135.0 barReference
Rear Type2Reference
Controlposition and top-link draft controlReference
Rear lift (at 24"/610mm)1447 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540Reference
Power at rated PTO speed36.1 kWReference
Capacities
Fuel68.1 LReference
Front axle4.5 LReference
Front hubs0.8 LReference
Dimensions
Wheelbase204 cmReference
Weight5070 to 5505 poundsReference
Front tire9.5-24Reference
Rear tire14.9-28Reference
Ag front9.5-24Reference
Ag rear14.9-28Reference
Ag rear16.9-28Reference
Lawn/turf front9.5-16Reference
Lawn/turf rear21.5L-16.1Reference
Industrial front12.5/80-18Reference
Industrial rear16.9-24Reference
Length350 cmReference
Width145 cmReference
Shipping weight2299 kgReference
Operating weight2497 kgReference
Clearance (front axle)34 cmReference
Front axle1640 mmReference
Flange axle rear axle1460 mmReference
John Deere 5055E attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA623Reference
Battery volts12Reference
John Deere 5055E Height
Hood136 cmReference
ROPS240 cmReference
ROPS194 cmReference
Test results
Diesel 9-speed 4WDSeptember 29 - October 7, 2009Link: Nebraska Tractor Test 1955 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Fuel use12.1 l/hourReference
Speeds
With 13.6-28 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
