Tractor · 2023Unverified

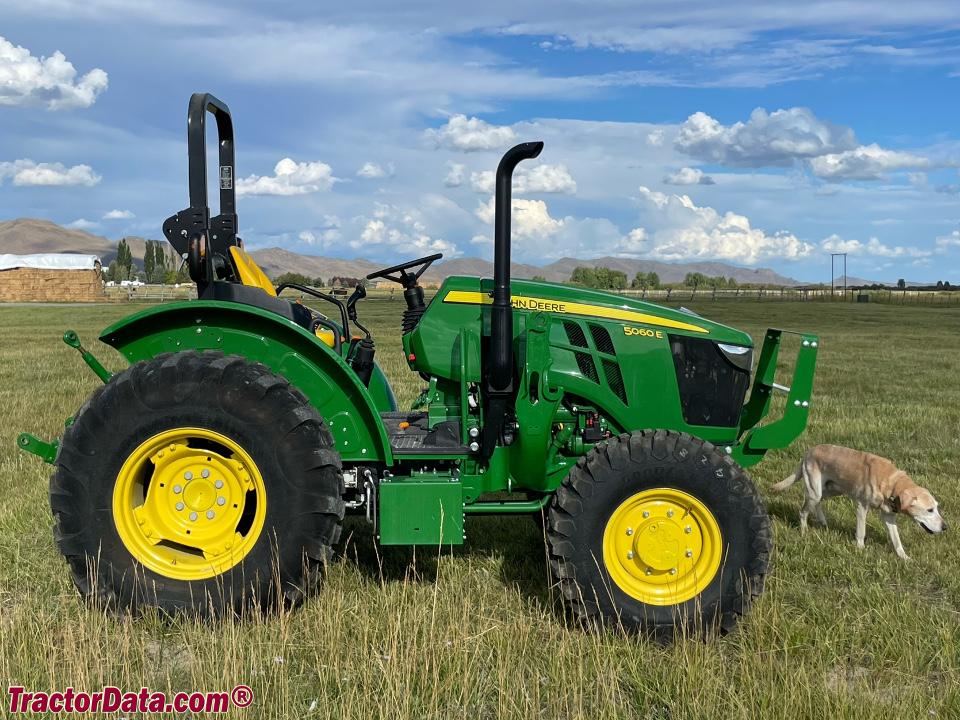

John Deere 5060E

Name: John Deere 5060E
Brand: John Deere

John Deere 5060E — 5E Series · 60 hp. Reference specifications; pending source verification.

The John Deere 5060E is a tractor with a rated power output of 60 horsepower, positioning it at the lighter end of its class. Manufactured in 2023, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 9-speed gearbox. The operating weight of the 5060E is specified as 5445 to 6702 pounds. It is suitable for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Max power

60 hp

Weight

5445 to 6702 pounds

Catalogue coverage

Variants represented

Richest spec table

128 rows

Recorded power

60 hp

Transmissions

9-speed partially synchronized

Production years

2023-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Pune, Maharashtra, IndiaReference

Original price$28,714 (2023 ROPS 2WD )Reference

Original price$45,679 (2023 Cab 4WD )Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

ROPS Fuel tank71.9 LReference

Cab Fuel tank79.5 LReference

Engine (gross)45.0 kWReference

John Deere 3029 EWRReference

turbocharged aftercooled dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

EmissionsTier IVReference

Emission controldiesel exhaust catalyst and exhaust gas recirculationReference

Power (gross)45.0 kWReference

Rated RPM2100Reference

Torque249.5 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speedOption 1: 2,100 rpm\\nOption 2: 250 NmReference

AspirationTurbochargedReference

Transmission

9-speed partially synchronizedReference

12-speed power shuttleReference

TransmissionSyncShuttleReference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range.Reference

TransmissionPowrReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range.Reference

Transmission TypePower ShuttleReference

forward and reverse options12F/12RReference

Wheel DriveMFWDReference

Rear Axle Drive TypePlanetaryReference

PTO & Hydraulics

ROPS PTO (claimed)34.0 kWReference

Cab PTO (claimed)32.0 kWReference

Typeopen centerReference

Rear valves1 or 2Reference

Mid valves3Reference

Pump flow48.4 lpmReference

SCV flow43.1 lpmReference

Total flow71.2 lpmReference

Steering flow22.7 lpmReference

Rear TypeII/IReference

Controltop link draft sensingReference

Rear lift (at ends)1799 kgReference

Rear lift (at 24"/610mm)1447 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2100Reference

Engine RPM540E@1588Reference

Dimensions

Wheelbase204 cmReference

Weight5445 to 6702 poundsReference

Front tire11L-15Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 11L-15. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference

Length363 cmReference

Flange rear axleReference

2WD ROPS Shipping2469 kgReference

2WD Cab Shipping2939 kgReference

4WD ROPS Shipping2684 kgReference

4WD Cab Shipping3040 kgReference

Max Drawbar1120 kgReference

Max Drawbar759 kgReference

John Deere 5060E attachments

front-end loaderReference

5060E Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps60Reference

Cab Charging amps110Reference

Battery volts12Reference

Battery AH85Reference

Alternator size70 ampReference

Battery options12 VReference

Attachment overview

John Deere 512 loaderReference

John Deere 520M loaderReference

Speeds

With 16.9-28 rear tires.Reference

With 16.9-28 rear tires. Reverse speeds are 8% faster than forward.Reference

General

Make & ModelNJDXL02.9,339Reference

CreeperKit available for OOS SyncShuttle™ 9F/3R transmissionReference

SCV controlJoystick: MechanicalReference

Drawbar Maximum vertical load1,120.4 kgReference

Rear Axle TypeFlangeReference

DisplaySimple automotive-style instrument clusterReference

RadioOptionalReference

Country of manufacturerSub assembly in Pune, India, Final assembly in Augusta, GAReference

Working lightsStandard: Halogen\\nPremium Cab: LEDReference

Type of headlight bulbOOS: Halogen\\nCab: LEDReference

Type of beacon bulbKit: HalogenReference

Capacities

Capacity179 cu. in.Reference

Fuel tank82 LReference

Power

Max Power60 hpReference

Rated Power60 hpReference

Power boost0 percentReference

PTO

PTO Power45.6 hpReference

PTO torque rise22 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM540/540E rpmReference

Engine Speed on Front PTO speed2,100 rpmReference

Hydraulics

Pump Rated Output (total)68.8 l/minReference

Remote Valves5Reference

Number of rear selective control valves (SCVs)TwoReference

Rear Hitch category (SAE designation)Category 2; convertible to 1Reference

Rear Hitch Sensing TypeTop linkReference

Dimensions & weight

Turning radius3.1 mReference

Overall weight2,469.8 kgReference

Wheels & tyres

Rear Wheel Type2WD: 14.9-28 R1 Bias\\nMFWD: 14.9-28 R1 BiasReference

Operator station

Cab AvailabilityAvailableReference

Cab Noise level81 dBAReference

Cab Seat TypeStandard: Mechanical\\nPremium Cab: Air RideReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
