Tractor · 2008Unverified

John Deere 5065M

Name: John Deere 5065M
Brand: John Deere

John Deere 5065M — Model year 2008-20112012-2012 · 51 hp. Reference specifications; pending source verification.

The John Deere 5065M is a tractor model rated at approximately 51 hp, positioning it at the lower end of its class in terms of power output. Manufactured from 2008 to 2012, the 5065M is equipped with a 5-cylinder turbocharged diesel liquid-cooled engine, combined with mechanical front-wheel drive and a hydrostatic transmission. The tractor's operating weight ranges from 6017 to 7800 pounds. It is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

51 hp

Max power

42.4 kW

Weight

6017 to 7800 pounds

Catalogue coverage

Variants represented

Richest spec table

161 rows

Recorded power

51 hp

Transmissions

16-speed partially synchronized

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$35,603 (2009 2WD ROPS)Reference

Original price$46,272 (2009 4WD cab)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Final drivesinboard planetaryReference

Differential lockshift-on-the-move electro-hydraulic rear differential lockReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.Reference

Engine

John Deere 3.0L 5-cyl dieselReference

Engine48.5 kWReference

John Deere PowerTech 5030Reference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke86 x 105 mmReference

Power48.5 kWReference

Air cleanerdryReference

Rated RPM2200Reference

Torque366.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Coolant capacity9.8 LReference

Oil capacity9.8 LReference

Max power42.4 kWReference

Power at rated engine speed38.0 kWReference

Fuel TypedieselReference

No of Cylinders5 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed122.5 kgReference

Bore and stroke3.385x4.134 StatusReference

Cooling systemliquid-cooledReference

Transmission

16-speed partially synchronizedReference

12-speed partially synchronizedReference

16-speed partially synchronized with power shuttleReference

32-speedReference

TransmissionSyncReverserReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference

TransmissionSyncShuttle PlusReference

Gears12 forward and 4 reverseReference

Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference

TransmissionPowrReverserReference

Typepartially synchronized with power shuttleReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

TransmissionPowrReverser PlusReference

Gears32 forward and 16 reverseReference

Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

Transmission TypeSync ShuttleReference

Wheel Drive2WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)37.3 kWReference

PTO (tested)42.4 kWReference

Hydraulic system45.0 LReference

Typeopen centerReference

Capacity45.0 LReference

Pressure195.0 barReference

Valves0, 2 or 3 (rear)Reference

Valves0, 2 or 3 (mid)Reference

Pump flow55.3 lpmReference

Oil type[-12o↔40oC]Reference

-10oF [-23oC]↑: HY-GARDReference

-10oF [-23oC]↑: JDM J20CReference

10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference

Steering flow23.8 lpmReference

Steering press.132.5 barReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1630 kgReference

Rear lift (at 24"/610mm)2040 kgReference

Rear PTOindependent electrohydraulicReference

Rear PTO Type540 (2WD)Reference

Rear PTO Type540/540E (4WD)Reference

Rear PTO Type540/540E/1000 (optional)Reference

Power at rated PTO speed39.4 kWReference

Capacities

Fuel79.5 LReference

Fuel113.6 LReference

Front hubs0.8 LReference

Front diff.5.0 LReference

Fuel tank30 (cab) galReference

Crankcase oil volume10.4 qtsReference

Dimensions

Wheelbase217 cmReference

Weight6017 to 7800 poundsReference

Front tire7.5-16Reference

Rear tire16.9-30Reference

Ag front7.5-16 (2WD)Reference

Ag front11.2-24 (4WD)Reference

Ag rear16.9-30Reference

Ag front11L-15 (2WD)Reference

Ag front9.5-24 (4WD)Reference

Ag front12.4R24 (4WD)Reference

Ag front13.6R24 (4WD)Reference

Ag rear14.9-28Reference

Ag rear16.9-28Reference

Ag rear420/90R30Reference

Ag rear480/80R30Reference

Ag rear15.5R38Reference

Ag rear16.9R34Reference

Ag rear230/95R48Reference

Lawn/turf front27/12LL-15 (2WD)Reference

Lawn/turf front12LL-16 (4WD)Reference

Lawn/turf front44x18-20 (4WD)Reference

Lawn/turf front230/95R32 (4WD)Reference

Lawn/turf rear22.5LL-16.1Reference

Lawn/turf rear23.1-26Reference

Industrial front11LL-15 (2WD)Reference

Industrial front12.5/80-18 (4WD)Reference

Industrial rear19.5L24Reference

Industrial rear16.9-24Reference

Ground clearance47 cmReference

Front tread146 to 209 cmReference

Front tread134 to 190 cmReference

Rear tread134 to 205 cmReference

Operating2729 kgReference

Operating2857 kgReference

Operating3356 kgReference

Operating2903 kgReference

Operating3039 kgReference

Operating3538 kgReference

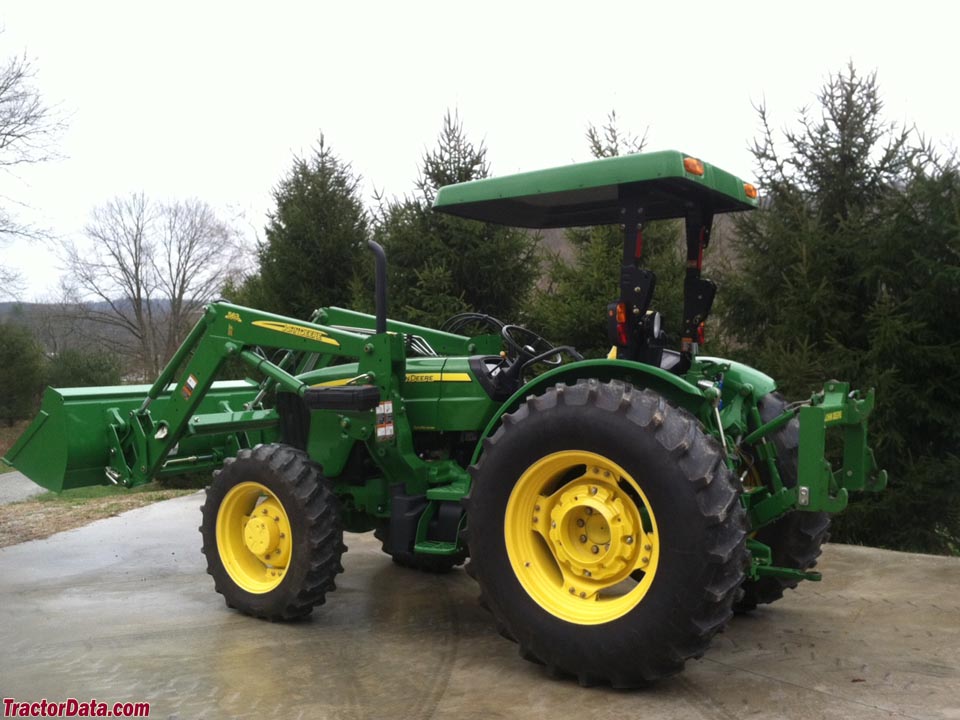

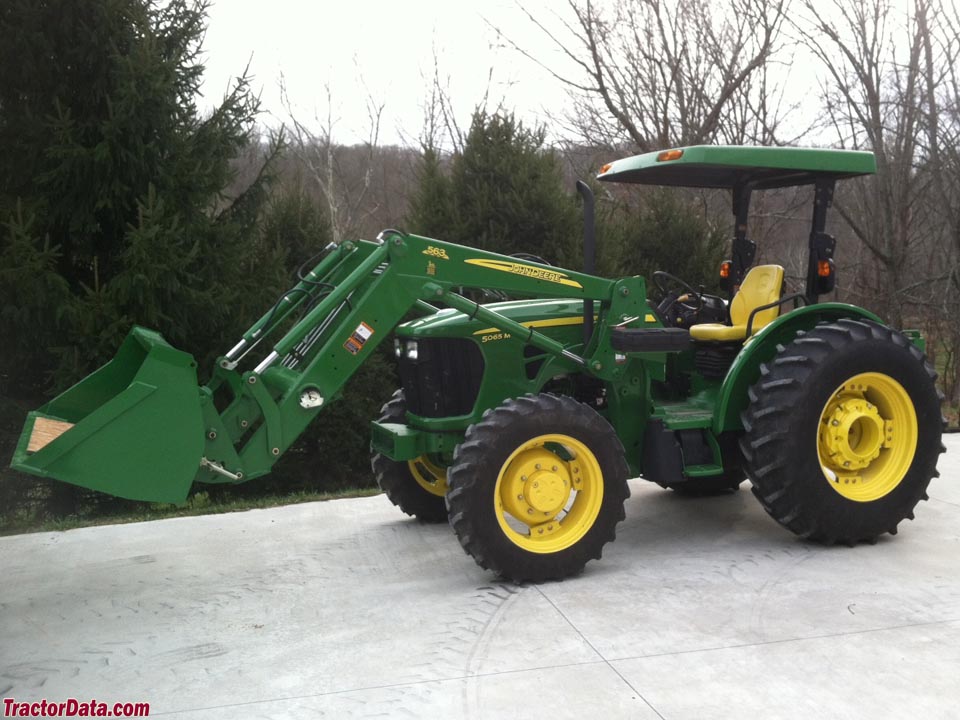

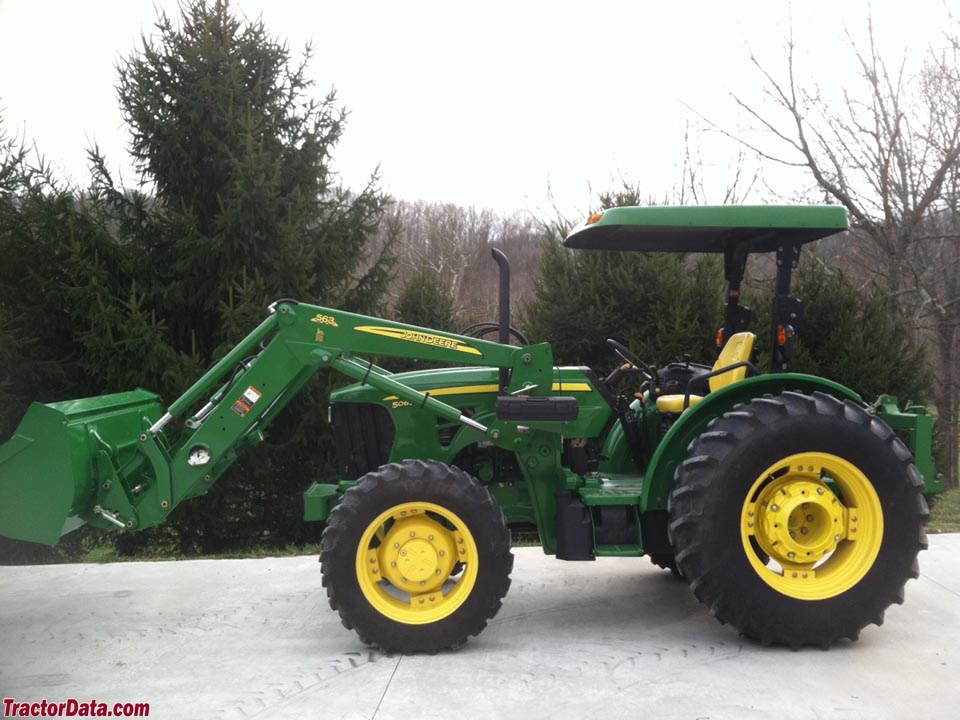

John Deere 5065M attachments

front-end loaderReference

5065M Serial Numbers

Location:Tractor frame on front left side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (cab)Reference

Charging amps120 (optional)Reference

Battery CCA750Reference

Battery volts12Reference

Battery Group31Reference

Total cold cranking amps720 ampsReference

Attachment overview

John Deere 553 loaderReference

John Deere 563 loaderReference

Test results

Diesel 12-speed 4WDOctober 8 - 13, 2009Link: Nebraska Tractor Test 1958 fileReference

PTO performanceReference

Fuel use12.5 l/hourReference

Fuel use13.2 l/hourReference

Fuel use12.9 l/hourReference

Speeds

With 16.9-30 rear tires.Reference

General

Make & ModelJohn DeereReference

Rollover protective structureTwo-post foldable ROPSReference

Country of manufacturerUSAReference

PTO

PTO Power50 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typeHydrostatic PowerReference

Hydraulics

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,828 psiReference

Remote Valves0, 2 or 3 (rear) | 0, 2 or 3 (mid)Reference

Steering & Implements flow6.3 gpm (14.6 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Dimensions & weight

Overall weight3,538 kgReference

Wheels & tyres

Rear wheel tread range53.1 to 80.9 inchesReference

Front Wheel tread range57.6 to 82.6 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialOptional cab with heat and air conditioning.Reference

Seat SuspensionTRUEReference
