Tractor · 2023Unverified

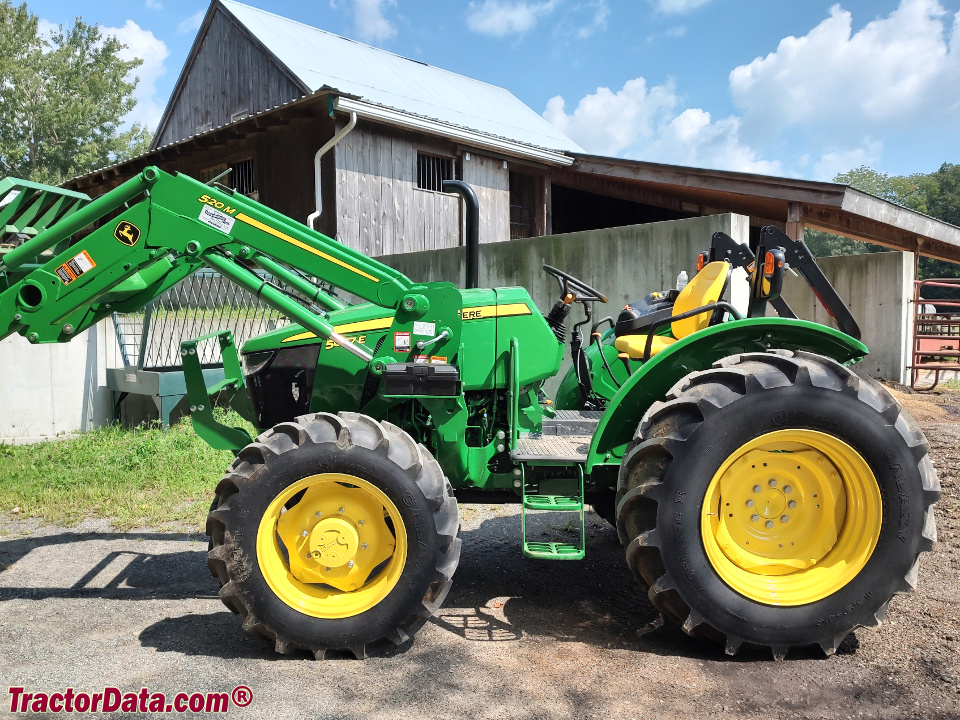

John Deere 5067E
John Deere 5067E — 5E Series · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
5555 to 6812 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Pune, Maharashtra, IndiaReference
Original price$31,936 (2023 ROPS 2WD )Reference
Original price$49,045 (2023 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
ROPS Fuel tank71.9 LReference
Cab Fuel tank79.5 LReference
Engine (gross)50.4 kWReference
John Deere 3029 EWRReference
turbocharged aftercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
EmissionsTier IVReference
Emission controldiesel exhaust catalyst and exhaust gas recirculationReference
Power (gross)50.4 kWReference
Rated RPM2100Reference
Torque279.3 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed partially synchronizedReference
12-speed power shuttleReference
TransmissionSyncShuttleReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
ROPS PTO (claimed)39.5 kWReference
Cab PTO (claimed)36.5 kWReference
Typeopen centerReference
Rear valves1 or 2Reference
Mid valves3Reference
Pump flow48.4 lpmReference
SCV flow43.1 lpmReference
Total flow71.2 lpmReference
Steering flow22.7 lpmReference
Rear TypeII/IReference
Controltop link draft sensingReference
Rear lift (at ends)1799 kgReference
Rear lift (at 24"/610mm)1447 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM540E@1588Reference
Dimensions
Wheelbase204 cmReference
Weight5555 to 6812 poundsReference
Front tire11L-15Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 11L-15. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-28Reference
Length363 cmReference
Flange rear axleReference
2WD ROPS Shipping2519 kgReference
2WD Cab Shipping2989 kgReference
4WD ROPS Shipping2734 kgReference
4WD Cab Shipping3089 kgReference
Max Drawbar1120 kgReference
Max Drawbar759 kgReference
John Deere 5067E attachments
front-end loaderReference
5067E Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps60Reference
Cab Charging amps110Reference
Battery volts12Reference
Battery AH85Reference
Attachment overview
John Deere 512 loaderReference
John Deere 520M loaderReference
Speeds
With 16.9-28 rear tires.Reference
With 16.9-28 rear tires. Reverse speeds are 8% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
