Tractor · 2009Unverified

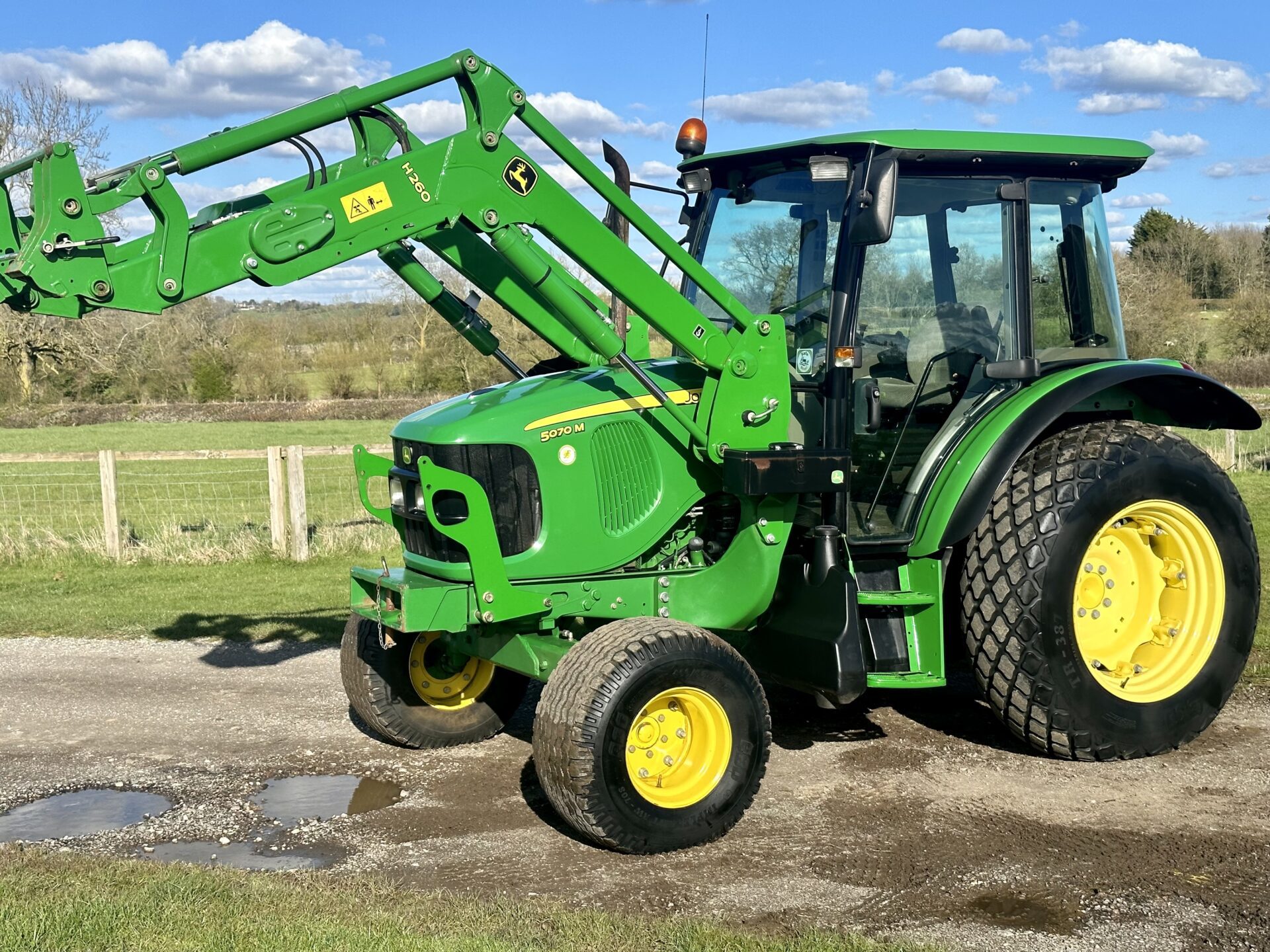

John Deere 5070M
John Deere 5070M — 5M Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3700 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard. Optional air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)52.2 kWReference
Engine (max)52.9 kWReference
John Deere 4045HL286Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Rated Power (gross)52.2 kWReference
Maximum Power (gross)52.9 kWReference
Rated RPM2200Reference
Idle RPM875-2350Reference
Operating RPM1500-2200Reference
Torque291.5 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
32-speed two-speed power shiftReference
16-speed power shuttleReference
16-speed partially synchronizedReference
TransmissionJohn Deere PowrReverser PlusReference
Typetwo-speed power shiftReference
Gears32 forward and 16 reverseReference
Clutchelectro-hydraulic wet discReference
Four gears (1-4) in four ranges (A-D) with left hand power shuttle lever. Push-button high/low power shift in each gear. Gear shifts (1-4) are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four synchronized gears (1-4) in four ranges (A-D) with left-hand power shuttle lever. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere SyncReverserReference
Typepartially synchronizedReference
Four synchronized gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Clutch must be used to shift directions. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Rear valves3Reference
Mid valves2Reference
Pump flow74.0 lpmReference
Pump flow93.9 lpmReference
Rear TypeIIReference
Controllower-link draft controlReference
Rear lift (at ends)3670 kgReference
Front HitchIIReference
Front lift (at ends)2957 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discsReference
Rear PTO Type540/540E/groundReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@2100Reference
Engine RPM540E@1645Reference
Engine RPM1000@2100Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@21080Reference
Dimensions
Wheelbase225 cmReference
Weight3700 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Height (cab)259 cmReference
4WD Clearance (front axle)39 cmReference
Shipping3700 kgReference
John Deere 5070M attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
John Deere 533 loaderReference
John Deere 583 loaderReference
Capacities
2WD Max capacity5443 kgReference
4WD Max capacity6001 kgReference
Speeds
With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds.Reference
With 420/85R30 rear tires and 30 kph option. Reverse speeds are 10% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
