Tractor · 2008Unverified

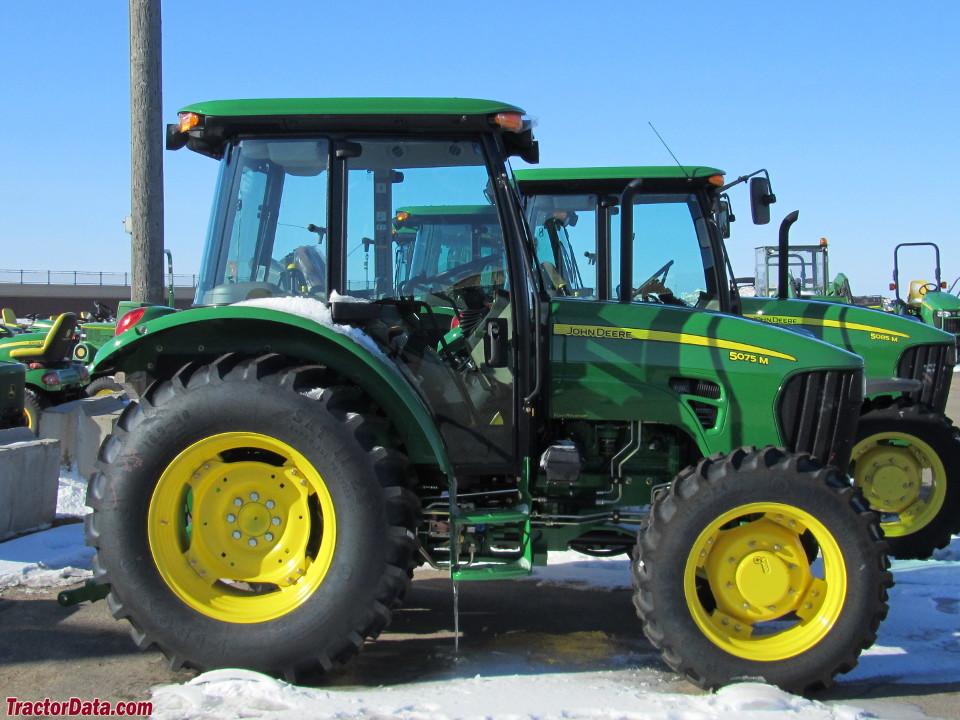

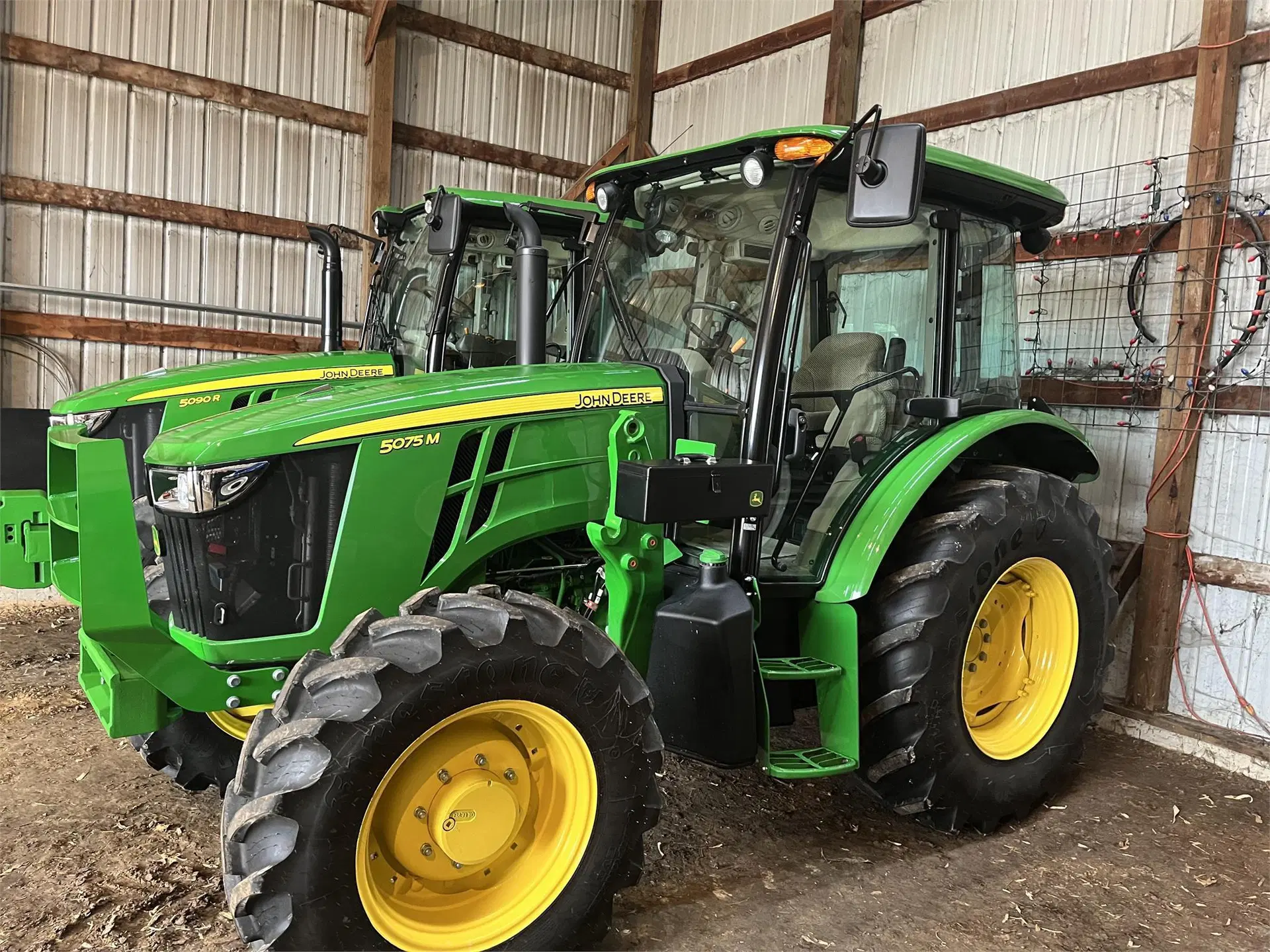

John Deere 5075M

Name: John Deere 5075M
Brand: John Deere

John Deere 5075M — Model year 2008-20112012-20142015-2025 · 60 hp. Reference specifications; pending source verification.

The John Deere 5075M is a tractor with a rated power output of 60 hp, positioning it at the lighter end of its class. This model was manufactured from 2008 to 2025. The 5075M is equipped with a 5-cylinder turbocharged diesel liquid-cooled engine, combined with a mechanical front-wheel drive system and hydrostatic transmission. Its operating weight ranges from 6017 to 7800 pounds, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Max power

48.9 kW

Weight

6017 to 7800 pounds

Catalogue coverage

Variants represented

Richest spec table

174 rows

Recorded power

60 hp

Transmissions

16-speed partially synchronized

Production years

2008-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$38,512 (2009 2WD ROPS)Reference

Original price$49,182 (2009 4WD cab)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Final drivesinboard planetaryReference

Differential lockshift-on-the-move electro-hydraulic rear differential lockReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.Reference

Engine

John Deere 3.0L 5-cyl dieselReference

Engine55.9 kWReference

John Deere PowerTech 5030Reference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke86 x 105 mmReference

Power55.9 kWReference

Air cleanerdryReference

Rated RPM2200Reference

Torque406.8 NmReference

Torque RPM1400Reference

Starter volts12Reference

Coolant capacity9.8 LReference

Oil capacity9.8 LReference

Max power48.9 kWReference

Power at rated engine speed44.8 kWReference

Fuel TypeDieselReference

No of Cylinders3Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speed300 NmReference

AspirationTurbocharged and air-to-air aftercooledReference

Transmission

16-speed partially synchronizedReference

12-speed partially synchronizedReference

16-speed partially synchronized with power shuttleReference

32-speedReference

TransmissionSyncReverserReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference

TransmissionSyncShuttle PlusReference

Gears12 forward and 4 reverseReference

Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference

TransmissionPowrReverserReference

Typepartially synchronized with power shuttleReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

TransmissionPowrReverser PlusReference

Gears32 forward and 16 reverseReference

Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

Transmission TypePower ShuttleReference

forward and reverse options16x16Reference

Wheel DriveMFWDReference

ClutchWetReference

Rear Axle Drive TypeInboard planetaryReference

PTO & Hydraulics

PTO (claimed)44.7 kWReference

PTO (tested)48.9 kWReference

Hydraulic system45.0 LReference

Typeopen centerReference

Capacity45.0 LReference

Pressure195.0 barReference

Valves0, 2 or 3 (rear)Reference

Valves0, 2 or 3 (mid)Reference

Pump flow55.3 lpmReference

Total flow79.1 lpmReference

Oil type[-12o↔40oC]Reference

-10oF [-23oC]↑: HY-GARDReference

-10oF [-23oC]↑: JDM J20CReference

10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference

Steering flow23.8 lpmReference

Steering press.132.5 barReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1630 kgReference

Rear lift (at 24"/610mm)2040 kgReference

Rear PTOindependent electrohydraulicReference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000 (optional)Reference

Power at rated PTO speed45.2 kWReference

Capacities

Fuel84.4 LReference

Fuel117.3 LReference

Front hubs0.8 LReference

Front diff.5.0 LReference

Fuel tank196.8 LReference

Dimensions

Wheelbase217 cmReference

Weight6017 to 7800 poundsReference

Front tire7.5-16Reference

Rear tire16.9-30Reference

Ag front7.5-16 (2WD)Reference

Ag front11.2-24 (4WD)Reference

Ag rear16.9-30Reference

Ag front11L-15 (2WD)Reference

Ag front9.5-24 (4WD)Reference

Ag front11.2R24 (4WD)Reference

Ag front12.4R24 (4WD)Reference

Ag front13.6R24 (4WD)Reference

Ag front230/95R32 (4WD)Reference

Ag rear14.9-28Reference

Ag rear16.9-28Reference

Ag rear420/90R30Reference

Ag rear480/80R30Reference

Ag rear15.5R38Reference

Ag rear16.9R34 (4WD)Reference

Ag rear230/95R48 (4WD)Reference

Lawn/turf front27/12LL-15 (2WD)Reference

Lawn/turf front12LL-16 (4WD)Reference

Lawn/turf front44x18-20 (4WD)Reference

Lawn/turf rear22.5LL-16.1Reference

Lawn/turf rear23.1-26Reference

Industrial front11LL-15 (2WD)Reference

Industrial front12.5/80-18 (4WD)Reference

Industrial rear19.5L-24Reference

Industrial rear16.9-24Reference

Ground clearance47 cmReference

Front tread146 to 209 cmReference

Front tread134 to 190 cmReference

Rear tread134 to 205 cmReference

Operating2729 kgReference

Operating2857 kgReference

Operating3356 kgReference

Operating2903 kgReference

Operating3039 kgReference

Operating3538 kgReference

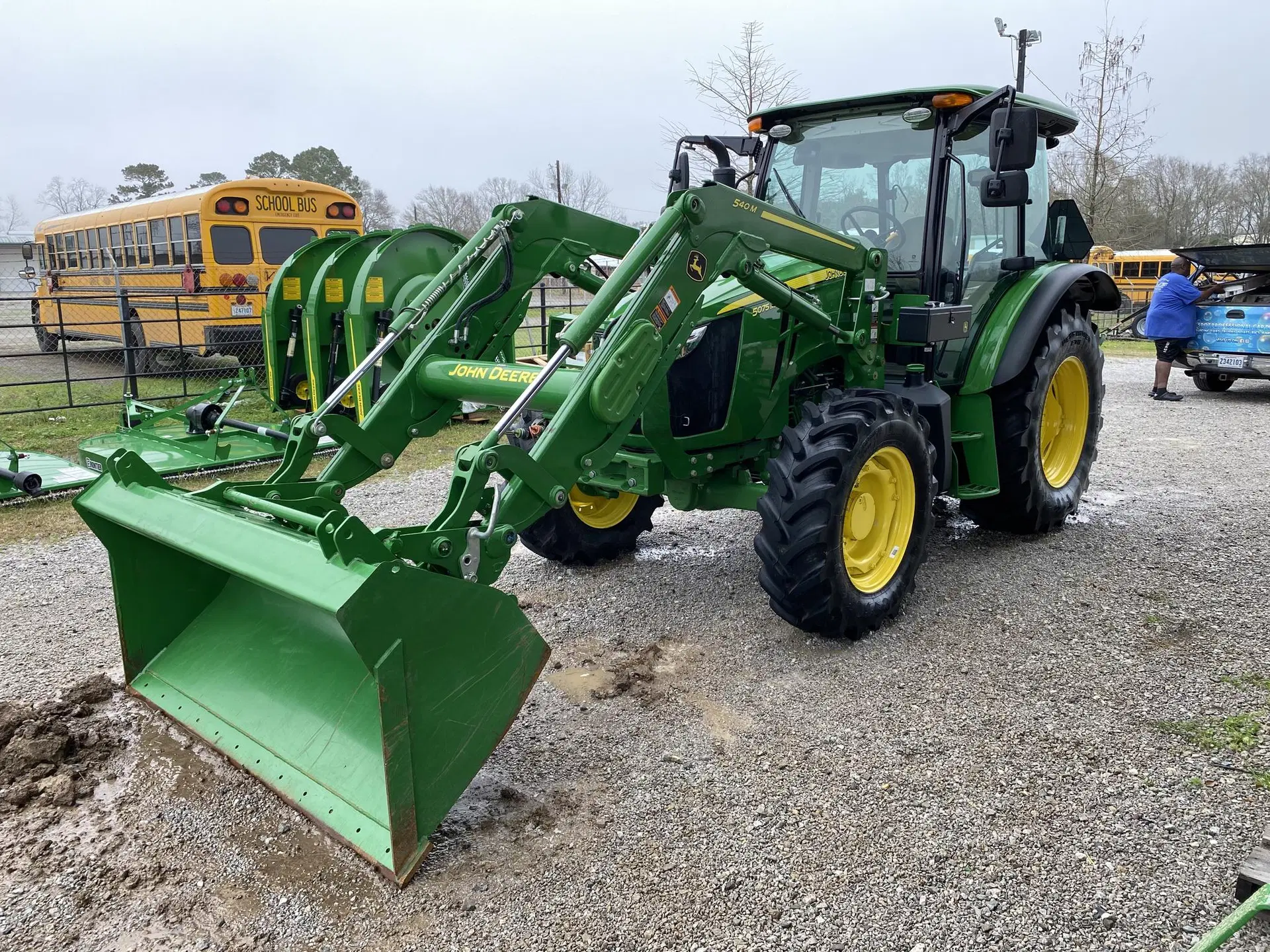

John Deere 5075M attachments

front-end loaderReference

5075M Serial Numbers

Location:Tractor frame on front left side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (cab)Reference

Charging amps120 (optional)Reference

Battery CCA925Reference

Battery volts12Reference

Battery Group31Reference

Alternator size90 ampReference

Battery options12 VReference

Attachment overview

John Deere 553 loaderReference

John Deere 563 loaderReference

Test results

Diesel 16-speed 4WDSeptember 22 - October 6, 2009Link: Nebraska Tractor Test 1959 fileReference

PTO performanceReference

Fuel use14.8 l/hourReference

Fuel use15.9 l/hourReference

Fuel use15.5 l/hourReference

Speeds

With 16.9-30 rear tires.Reference

General

Make & ModelNJDXL02.9,318Reference

CreeperNot availableReference

SCV controlJoystick: MechanicalReference

Drawbar categoryCategory 2Reference

Drawbar Maximum vertical load1,450.1 kgReference

Rear Axle TypeFlangeReference

Rear Axle Differential LockElectrohydraulicReference

DisplayAutomotive-style light-emitting diode (LED) instrument clusterReference

RadioOptionalReference

Country of manufacturerPune, IndiaReference

Working lightsStandard: Halogen\\nOptional: LEDReference

Type of headlight bulbStandard: Halogen\\nOptional: LEDReference

Type of beacon bulbOptional: LEDReference

Power

Rated Power75 hpReference

Power boost0 percentReference

PTO

PTO Power57.7 hpReference

PTO torque rise26 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 rpmReference

Engine Speed on Front PTO speed2,100 rpmReference

Hydraulics

Pump Rated Output (total)94 l/minReference

Remote Valves6Reference

Number of rear selective control valves (SCVs)ThreeReference

Rear Hitch category (SAE designation)Category 2; convertible to 1Reference

Rear Hitch Sensing TypeLower linkReference

Dimensions & weight

Turning radius3.7 mReference

Overall weight3,692.2 kgReference

Operator station

Cab AvailabilityOptionalReference

Cab Noise level78 dBAReference

Cab Seat TypeStandard: Mechanical\\nOptional: Air Ride or Premium Air RideReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
