Tractor · 2009Unverified

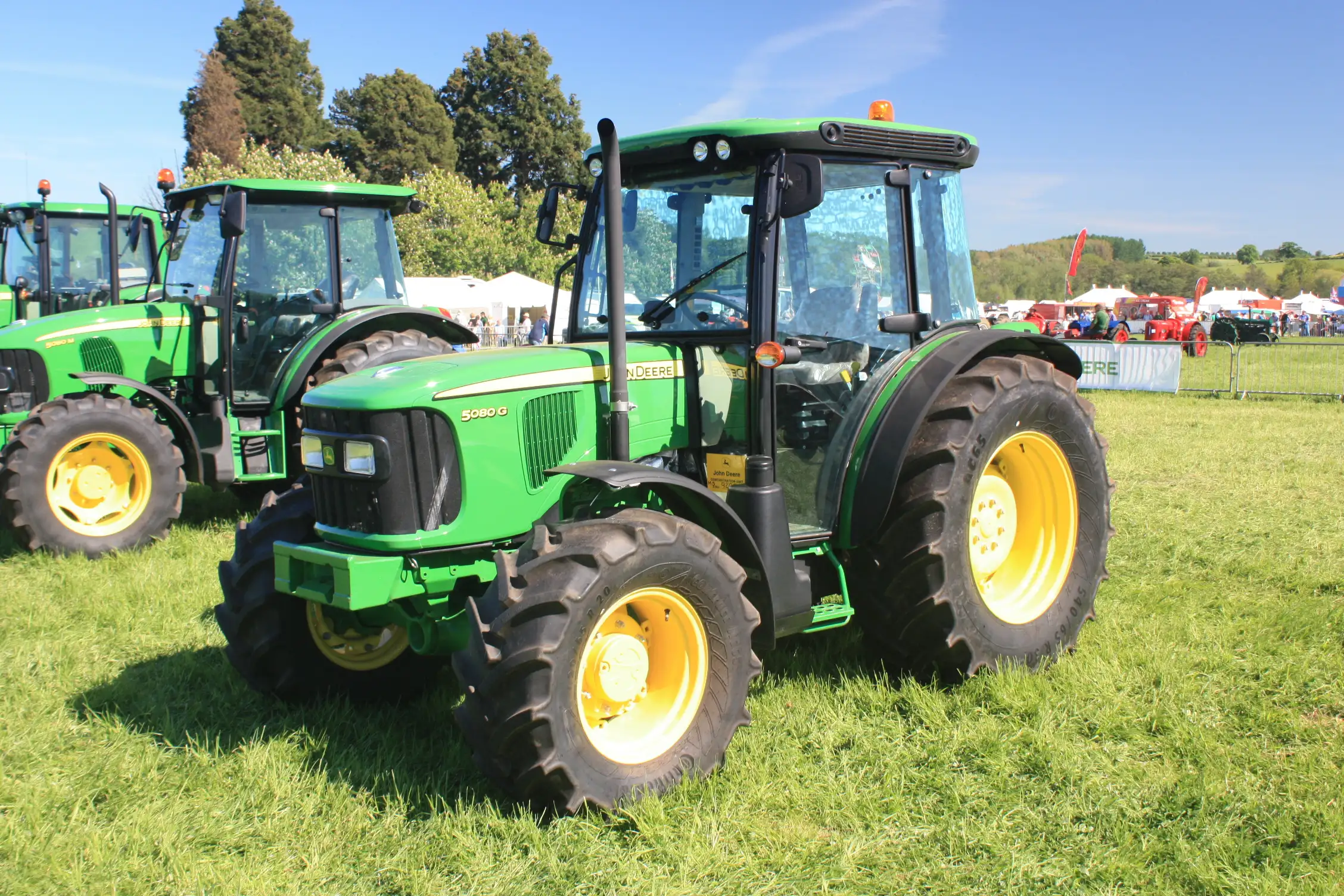

John Deere 5080G

John Deere 5080G — 5G Series · 80 hp. Reference specifications; pending source verification.

The John Deere 5080G is a tractor model with a rating of approximately 80 hp, positioning it within the mid-range of its class. It was manufactured from 2009 to 2013. The 5080G features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight falls within the range of 6724 to 7055 pounds, making it suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
80 hp
Weight
6724 to 7055 pounds

Catalogue coverage

Variants represented
2
Richest spec table
70 rows
Recorded power
80 hp
Recorded weight
3050 kg
Transmissions
12-speed
Production years
2009-2013
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference
ManufacturerAgritaliaReference
Utility tractorReference
Built in Rovigo, ItalyReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS (2- or 4-post). Cab optional.Reference

Variants

5080GutilityReference
5080GForchardReference
5080GVvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference
Fuel tank96.1 LReference
Engine59.7 kWReference
John Deere 4045HAT80Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsStage IIIAReference
Power59.7 kWReference
Compression19.0:1Reference
Rated RPM2300Reference
Torque325.0 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Starter power2.8 kWReference
Coolant capacity10.4 LReference
Coolant capacity13.0 LReference
Coolant change2000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.0 LReference
Oil change500 hReference

Transmission

12-speedReference
24-speedReference
Gears12 forward and reverseReference
Oil capacity39.0 LReference
Gears24 forward and reverseReference

PTO & Hydraulics

Pressure186.2 barReference
Pump flow45.0 lpmReference
Pump flow59.0 lpmReference
Steering flow24.6 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift2651 kgReference
Rear PTO Type540/540E/groundReference
Rear PTO Type540/1000/groundReference

Dimensions

Wheelbase218 cmReference
Weight6724 to 7055 poundsReference
Length388 cmReference
Width226 cmReference
Shipping weight3050 kgReference
Shipping weight3200 kgReference
Front tread134 to 160 cmReference
Front tread134 to 187 cmReference
Rear tread137 to 190 cmReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps95 (cab)Reference
Battery volts12Reference
Battery AH100Reference

John Deere 5080G Height

ROPS269 cmReference
ROPS236 cmReference
Cab243 cmReference

Speeds

With 16.9R30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
