Tractor · 2009Unverified

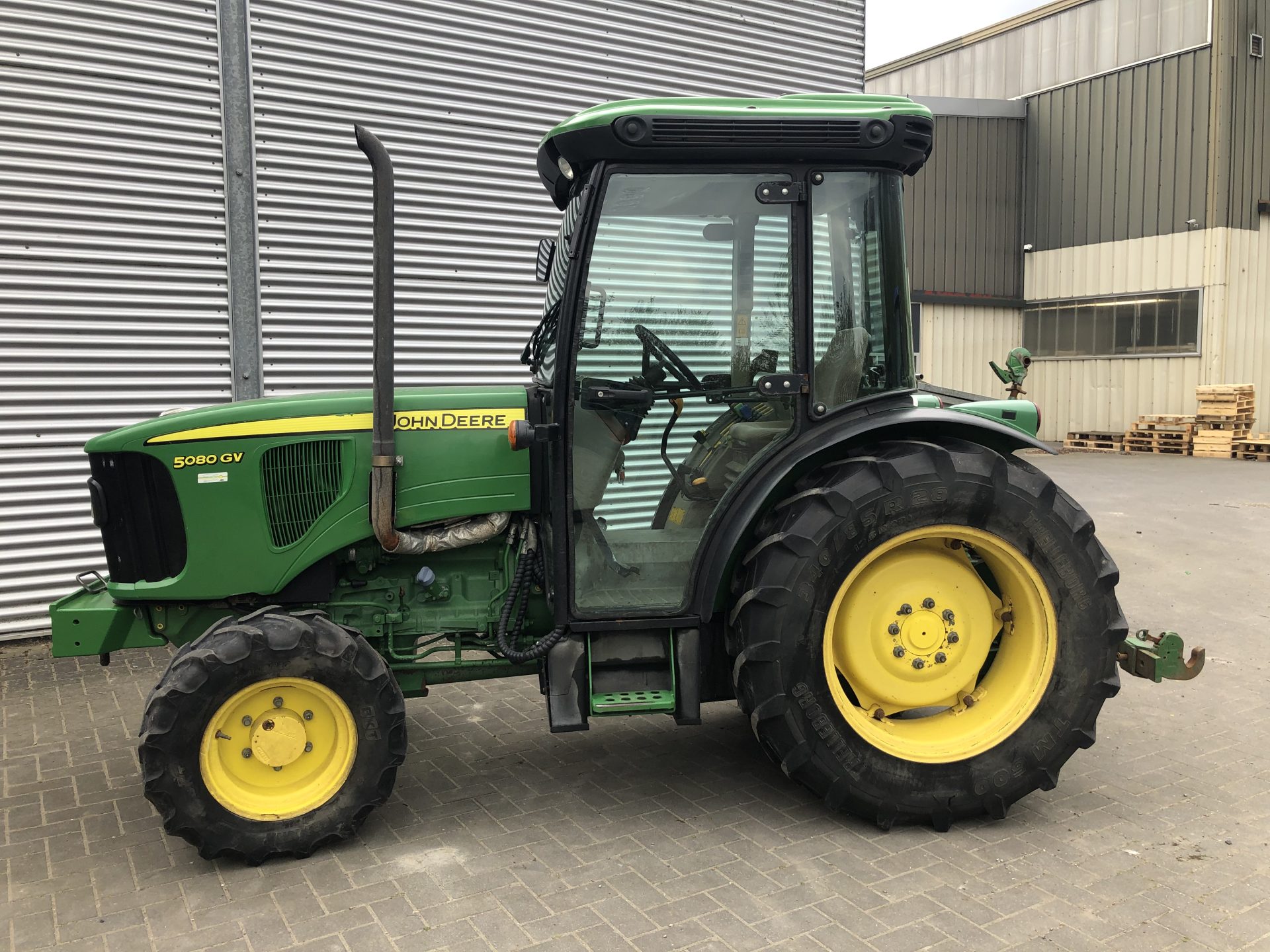

John Deere 5080GV
John Deere 5080GV — 5G Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
5776 to 6460 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerAgritaliaReference
Orchard/Vineyard tractorReference
Built in Rovigo, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS (2-post); Cab optional.Reference
Variants
5080GutilityReference
5080GForchardReference
5080GVvineyardReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank152.2 LReference
Engine59.7 kWReference
John Deere 4045HAT80Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsStage IIIAReference
Power59.7 kWReference
Compression19.0:1Reference
Rated RPM2300Reference
Torque325.0 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Starter power2.8 kWReference
Coolant capacity10.4 LReference
Coolant capacity13.0 LReference
Coolant change2000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.0 LReference
Oil change500 hReference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pressure186.2 barReference
Pump flow45.0 lpmReference
Pump flow59.0 lpmReference
Total flow71.5 lpmReference
Total flow84.4 lpmReference
Total flow104.5 lpmReference
Steering flow24.6 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift2651 kgReference
Rear PTO Type540/540E/groundReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase215 cmReference
Weight5776 to 6460 poundsReference
Length388 cmReference
Width170 cmReference
Height (ROPS)261 cmReference
Height (cab)241 cmReference
Shipping weight2619 kgReference
Shipping weight2930 kgReference
Front tread101 to 106 cmReference
Front tread106 to 119 cmReference
Rear tread96 to 134 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps95 (cab)Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 14.9R28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
