Tractor · 2008Unverified

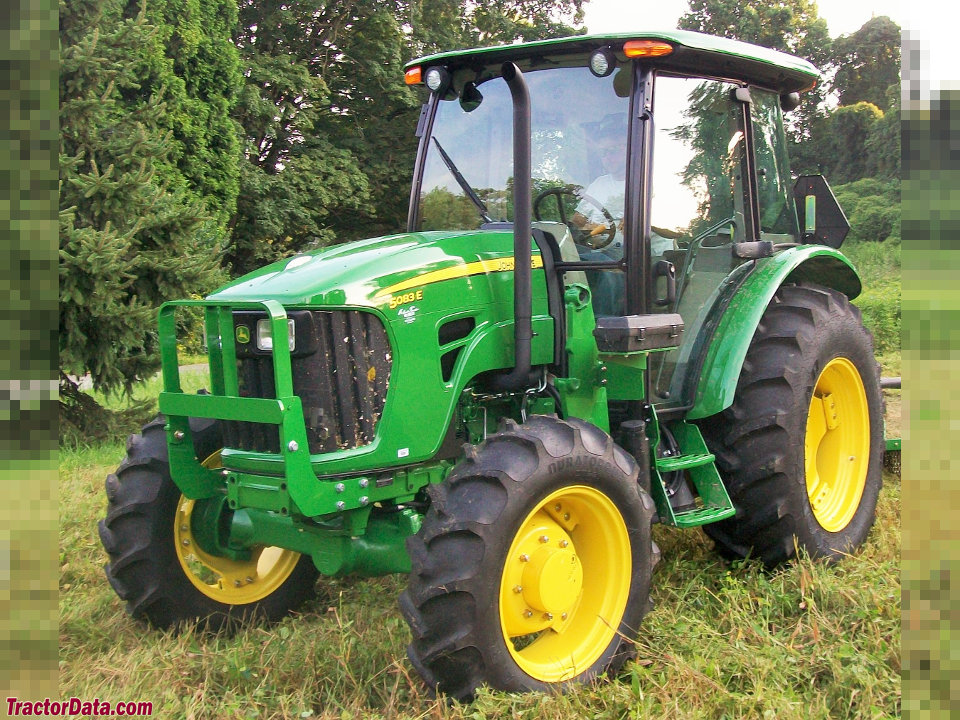

John Deere 5083E
John Deere 5083E — Model year 2008-20112012-2012 · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Max power
51.7 kW
Weight
3265 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$41,361 (2011)Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Independent hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning.Reference
Variants
5083Eutility chassisReference
5083ENnarrow chassisReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)61.9 kWReference
John Deere PowerTech 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 2Reference
Rated Power (gross)61.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.6:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Max power51.7 kWReference
Power at rated engine speed49.1 kWReference
Transmission
12-speed partially synchronizedReference
TransmissionPowrReverserReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchwet discReference
Four gears in each of three ranges with reverser lever. Forward/reverse power shift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized.Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)51.7 kWReference
Typeopen centerReference
Pressure195.0 barReference
Rear valves1 to 3Reference
Mid valves2 (optional)Reference
Pump flow60.2 lpmReference
Total flow85.2 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear Type2/1Reference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1457 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase217 cmReference
Weight3265 kgReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Ag front11.2-24Reference
Ag rear16.9-30Reference
Ag front12.4-24Reference
Ag rear18.4-30Reference
Industrial front12.5/80-18Reference
Industrial rear19.5L-24Reference
Length374 cmReference
Width164 cmReference
Height (hood)137 cmReference
Height (cab)250 cmReference
Operating weight3265 kgReference
Clearance (front axle)41 cmReference
Front axle1640 mmReference
Flange axle rear axle1460 mmReference
John Deere 5083E attachments
front-end loaderReference
5083E Serial Number Location
Serial number plate on the left side of tractor above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps120 (optional)Reference
Battery CCA750Reference
Battery volts12Reference
Attachment overview
John Deere 553 loaderReference
John Deere 563 loaderReference
Test results
Diesel 12-speed 4WDMarch 24 - April 16, 2009Link: Nebraska Tractor Test 1947 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use17.0 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
