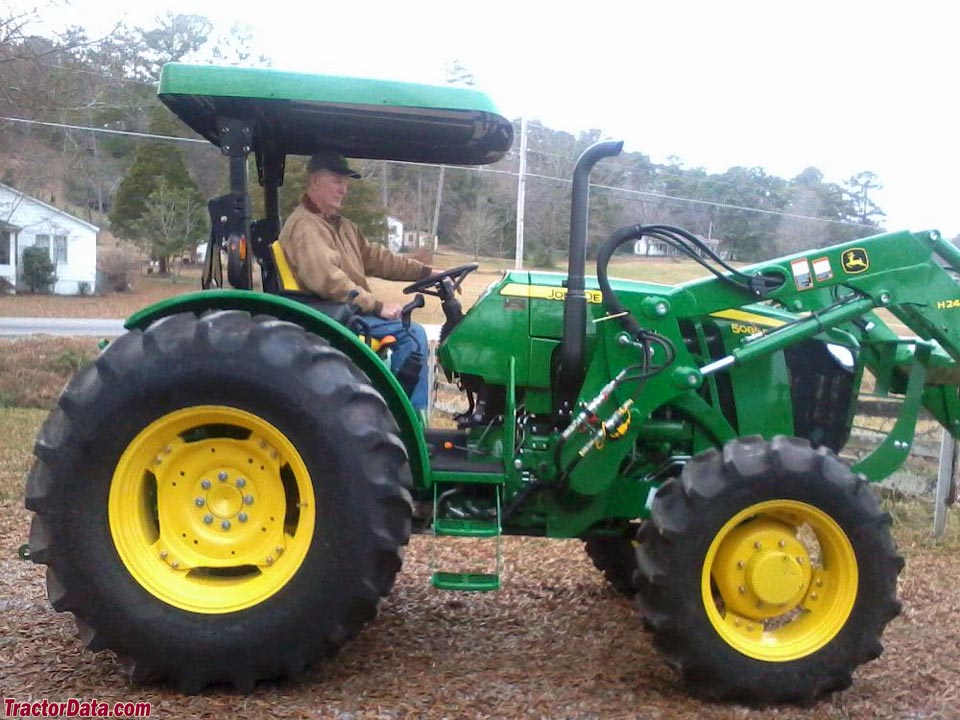

John Deere 5085E
John Deere 5085E — Model year 2013-20142015-2017 · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
7055 to 7937 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$41,102 (2014 ROPS )Reference
Original price$50,040 (2014 Cab )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
ROPS Fuel tank94.6 LReference
Cab Fuel tank113.6 LReference
Engine (gross)63.4 kWReference
John Deere PowerTech 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Rated Power (gross)63.4 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
TransmissionPowrReverserReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchwet discReference
Four synchronized gears (1-4) in three non-synchronized ranges (A-C) with lever hand power shuttle.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Rear valves0, 2 or 3Reference
Mid valves0, 2 or 3Reference
Pump flow60.2 lpmReference
Total flow85.2 lpmReference
Steering flow25.0 lpmReference
Rear TypeIIReference
Controltop link draft sensingReference
Rear lift (at 24"/610mm)1457 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Dimensions
Wheelbase230 cmReference
Weight7055 to 7937 poundsReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length392 cmReference
Width176 cmReference
ROPS Weight3200 kgReference
Cab Weight3600 kgReference
ROPS Clearance (front axle)40 cmReference
Cab Clearance (front axle)38 cmReference
Flange rear axleReference
Front tread134 to 190 cmReference
John Deere 5085E attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps120Reference
Battery volts12Reference
Attachment overview
John Deere 553 NSL loaderReference
John Deere H260 NSL loaderReference
John Deere H260 MSL loaderReference
John Deere 5085E Height
Hood159 cmReference
ROPS253 cmReference
ROPS197 cmReference
Cab254 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
