Tractor · 2008Unverified

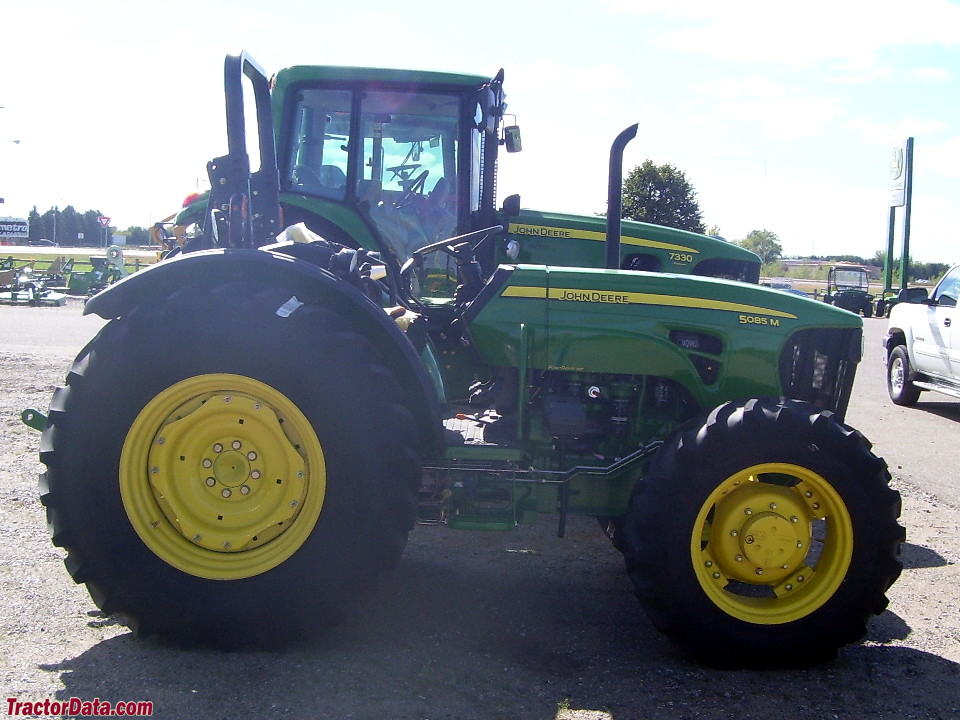

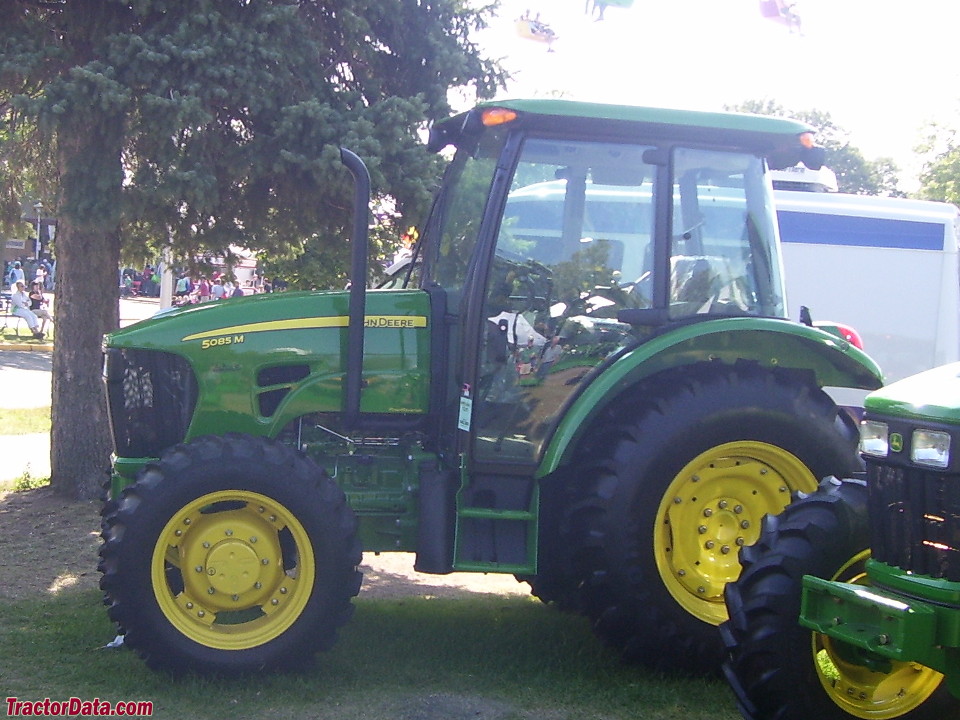

John Deere 5085M

Name: John Deere 5085M
Brand: John Deere

John Deere 5085M — Model year 2008-20112012-20142015-2018 · 70 hp. Reference specifications; pending source verification.

The John Deere 5085M is a tractor model with a rated power output of 70 hp, a mid-range figure for its class. It was manufactured from 2008 to 2018 and features a 4-cylinder turbocharged diesel liquid-cooled engine. This engine is paired with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of the tractor is listed as 6393 to 8000 pounds, and it is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Max power

55.2 kW

Weight

6393 to 8000 pounds

Catalogue coverage

Variants represented

Richest spec table

171 rows

Recorded power

70 hp

Transmissions

16-speed partially synchronized

Production years

2008-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$41,671 (2WD ROPS)Reference

Original price$52,340 (4WD cab)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Final drivesinboard planetaryReference

Differential lockshift-on-the-move electro-hydraulic rear differential lockReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine63.4 kWReference

John Deere PowerTech M 4045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier 3Reference

Power63.4 kWReference

Air cleanerdryReference

Rated RPM2200Reference

Torque448.8 NmReference

Torque RPM1600Reference

Starter volts12Reference

Coolant capacity11.4 LReference

Oil capacity8.3 LReference

Max power55.2 kWReference

Power at rated engine speed52.5 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed150.1 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed partially synchronizedReference

12-speed partially synchronizedReference

16-speed partially synchronized with power shuttleReference

32-speedReference

TransmissionSyncReverserReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference

TransmissionSyncShuttle PlusReference

Gears12 forward and 4 reverseReference

Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference

TransmissionPowrReverserReference

Typepartially synchronized with power shuttleReference

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

TransmissionPowrReverser PlusReference

Gears32 forward and 16 reverseReference

Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference

Transmission TypePower ShuttleReference

forward and reverse optionsPowrReverser:16 F and 16 R | PowrReverser Plus: 32 F and 16 RReference

Wheel Drive2WD | 4WDReference

ClutchWet DiscReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

PTO (tested)55.2 kWReference

Hydraulic system45.0 LReference

Typeopen centerReference

Capacity45.0 LReference

Pressure195.0 barReference

Valves0, 2 or 3 (rear)Reference

Valves0, 2 or 3 (mid)Reference

Pump flow69.6 lpmReference

Total flow93.5 lpmReference

Oil type[-12o↔40oC]Reference

-10oF [-23oC]↑: HY-GARDReference

-10oF [-23oC]↑: JDM J20CReference

10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference

Steering flow23.8 lpmReference

Steering press.132.5 barReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1630 kgReference

Rear lift (at 24"/610mm)2040 kgReference

Rear PTOindependent electrohydraulicReference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000 (optional)Reference

Power at rated PTO speed54.7 kWReference

Capacities

Fuel114.7 LReference

Fuel154.0 LReference

Front hubs0.8 LReference

Front diff.5.0 LReference

Fuel tank140.1 LReference

Crankcase oil volume8.8 qtsReference

Dimensions

Weight6393 to 8000 poundsReference

Front tire7.5-16Reference

Rear tire16.9-30Reference

Ag front7.5-16 (2WD)Reference

Ag front11.2-24 (4WD)Reference

Ag rear16.9-30Reference

Ag front11L-15 (2WD)Reference

Ag front9.5-24 (4WD)Reference

Ag front11.2R24 (4WD)Reference

Ag front12.4R24 (4WD)Reference

Ag front13.6R24 (4WD)Reference

Ag front230/95R32 (4WD)Reference

Ag rear14.9-28Reference

Ag rear16.9-28Reference

Ag rear420/90R30Reference

Ag rear480/80R30Reference

Ag rear15.5R38Reference

Ag rear16.9R34Reference

Ag rear230/95R48Reference

Lawn/turf front27/12LL-15 (2WD)Reference

Lawn/turf front12LL-16 (4WD)Reference

Lawn/turf front44x18-20 (4WD)Reference

Lawn/turf rear22.5LL-16.1Reference

Lawn/turf rear23.1-26Reference

Industrial front11LL-15 (2WD)Reference

Industrial front12.5/80-18 (4WD)Reference

Industrial rear19.5L-24Reference

Industrial rear16.9-24Reference

Ground clearance47 cmReference

Front tread146 to 209 cmReference

Front tread134 to 190 cmReference

Rear tread134 to 205 cmReference

Operating2899 kgReference

Operating3107 kgReference

Operating3447 kgReference

Operating3084 kgReference

Operating3288 kgReference

Operating3628 kgReference

John Deere 5085M attachments

front-end loaderReference

5085M Serial Number Location

Tractor frame on front left side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (cab)Reference

Charging amps120 (optional)Reference

Battery CCA925Reference

Battery volts12Reference

Battery Group31Reference

Total cold cranking amps925 ampsReference

Attachment overview

John Deere 553 loaderReference

John Deere 563 loaderReference

Test results

Diesel 16-speed 4WDOctober 15 - 20, 2009Link: Nebraska Tractor Test 1960 fileReference

PTO performanceReference

Fuel use17.4 l/hourReference

Fuel use17.8 l/hourReference

Speeds

With 16.9-30 rear tires.Reference

General

Make & ModelJohn DeereReference

SCV controlJoystickReference

Rollover protective structureFoldable ROPSReference

Country of manufacturerUSAReference

PTO

PTO Power70 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)24.7 gpmReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,828 psiReference

Remote ValvesRear valves:2 or 3 | Mid valves:2 or 3Reference

Steering & Implements flow6.3 gpm (18.4 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch Sensing Typelower-link draft sensingReference

Dimensions & weight

Wheelbase235 cmReference

Height Over Cab257.8 cmReference

Height Over ROPS250.2 cmReference

Overall Length414 cmReference

Overall weight3,628.7 kgReference

Wheels & tyres

Rear Wheel Type18.4R30 agReference

Rear wheel tread range53.1 to 80.9 inchesReference

Front Wheel Type12.4R24Reference

Front Wheel tread range57.6 to 82.6 (2WD) incheReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
