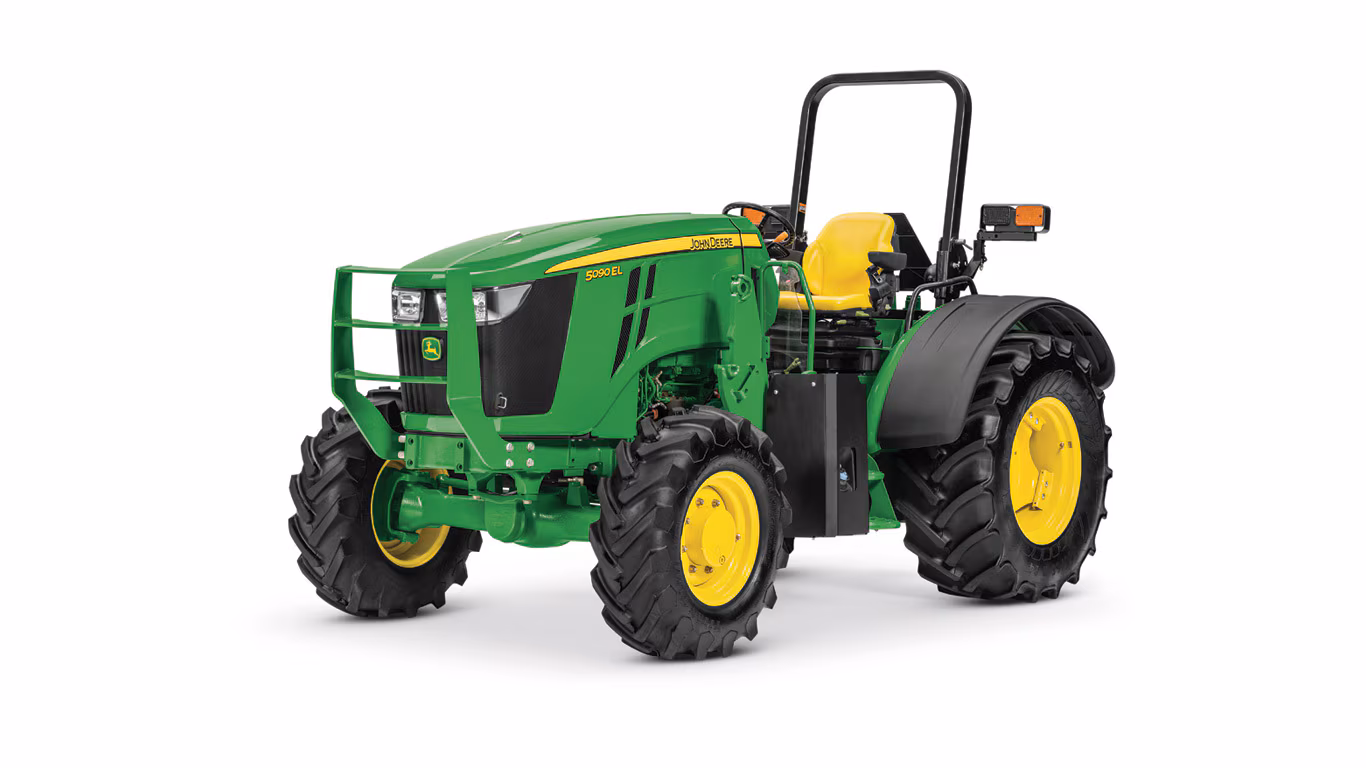

John Deere 5090EL
John Deere 5090EL — Orchard/Vineyard tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3200 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS.Reference
Variants
5090EutilityReference
5090ELlow-profileReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank112.4 LReference
Engine (gross)67.1 kWReference
John Deere PowerTech 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (gross)67.1 kWReference
Rated RPM90Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
24-speed power shuttleReference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Typeopen centerReference
Rear valves2 to 3Reference
Mid valves2 to 3Reference
Pump flow85.2 lpmReference
SCV flow60.2 lpmReference
Rear TypeIIReference
Controlmechanical top-link draft sensingReference
Rear lift (at ends)1457 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM540E@1716Reference
Engine RPM1000@2400Reference
Dimensions
Weight3200 kgReference
Front tire12.5/80-18Reference
Rear tire19.5L-24Reference
Standard tires (ag)Front: 12.5/80-18. Rear: 19.5L-24Reference
Front axleFlangeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
