Tractor · 2009Unverified

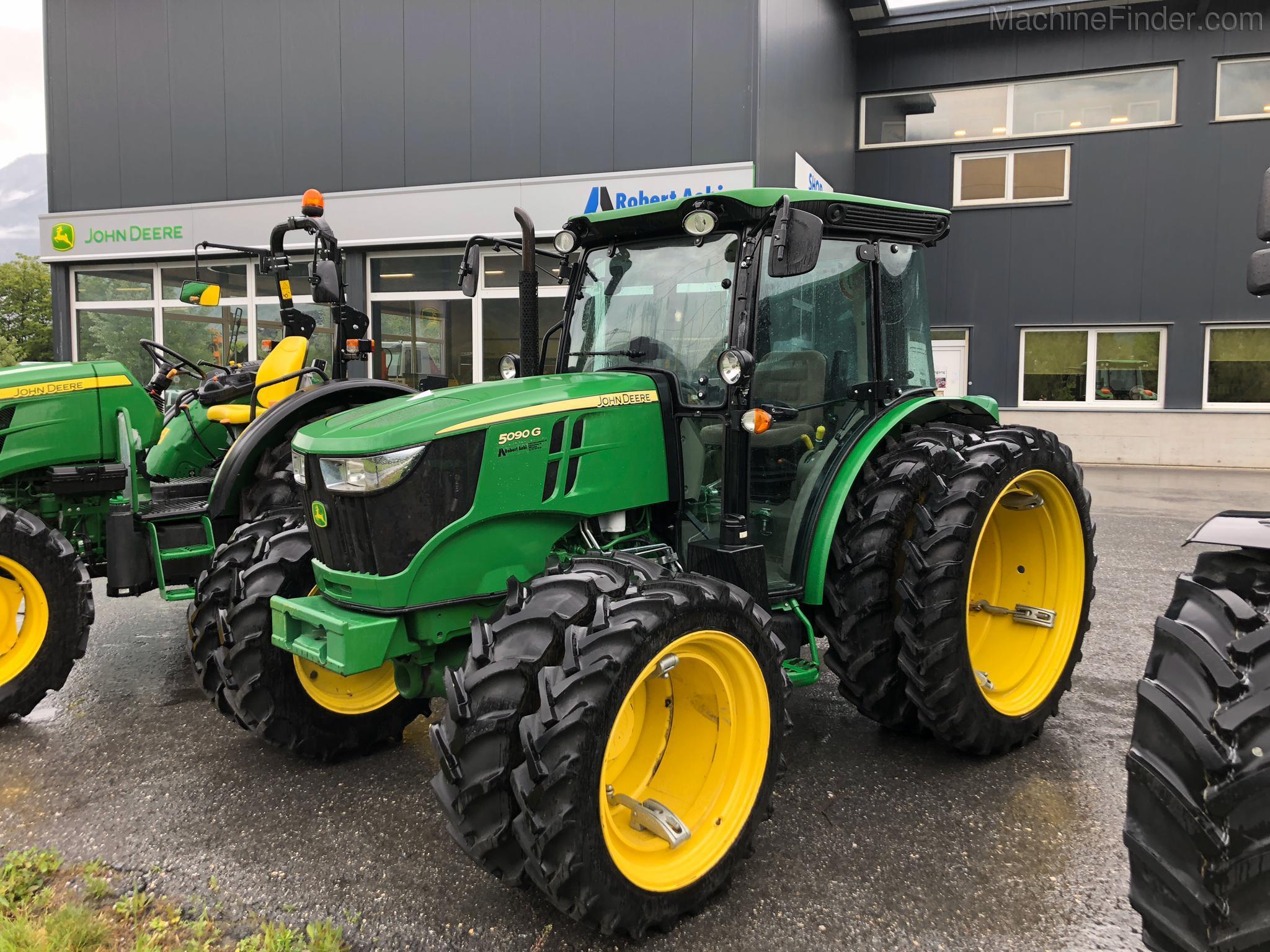

John Deere 5090G
John Deere 5090G — 5G Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6724 to 7055 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerAgritaliaReference
Utility tractorReference
Built in Rovigo, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS (2- or 4-post). Cab optional.Reference
Variants
5090GutilityReference
5090GHhigh-cropReference
5090GForchardReference
5090GVvineyardReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank96.1 LReference
Engine67.1 kWReference
John Deere 4045HAT80Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsStage IIIAReference
Power67.1 kWReference
Compression19.0:1Reference
Rated RPM2300Reference
Torque365.0 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Starter power2.8 kWReference
Coolant capacity10.4 LReference
Coolant capacity13.0 LReference
Coolant change2000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.0 LReference
Oil change500 hReference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pressure186.2 barReference
Pump flow45.0 lpmReference
Pump flow59.0 lpmReference
Steering flow24.6 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift2651 kgReference
Rear PTO Type540/540E/groundReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase218 cmReference
Weight6724 to 7055 poundsReference
Length388 cmReference
Width226 cmReference
Shipping weight3050 kgReference
Shipping weight3200 kgReference
Front tread134 to 160 cmReference
Front tread134 to 187 cmReference
Rear tread137 to 190 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps95 (cab)Reference
Battery volts12Reference
Battery AH100Reference
John Deere 5090G Height
ROPS269 cmReference
ROPS236 cmReference
Cab243 cmReference
Speeds
With 16.9R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
