Tractor · 2009Unverified

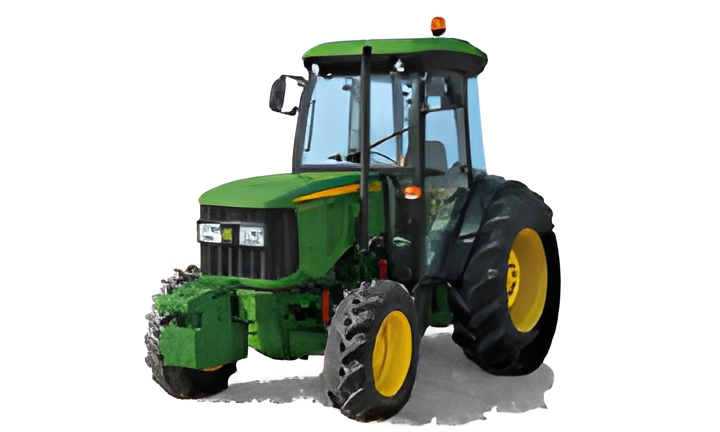

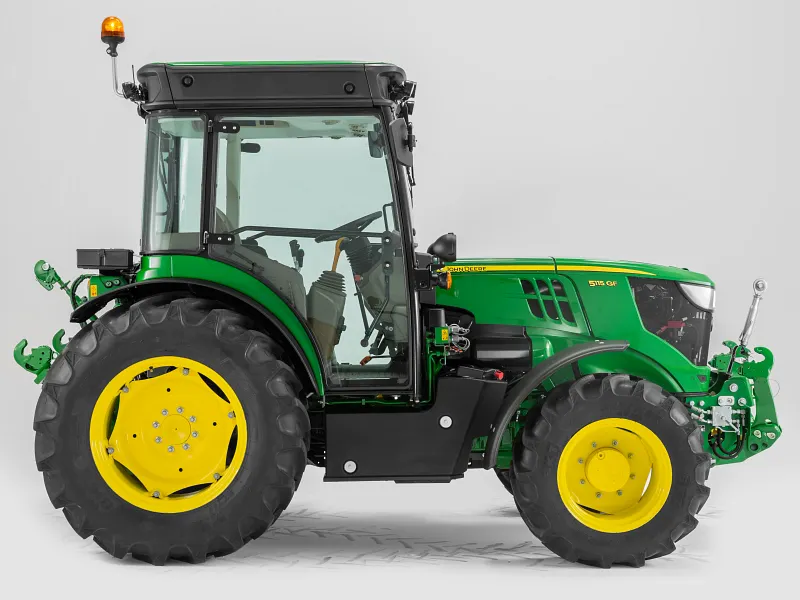

John Deere 5090GF

Name: John Deere 5090GF
Brand: John Deere

John Deere 5090GF — 5G Series · 90 hp. Reference specifications; pending source verification.

The John Deere 5090GF is a tractor with a rated output of 90 hp, positioning it in the middle of its class for power. This model was manufactured from 2009 to 2013. The 5090GF is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers mechanical front-wheel drive via a hydrostatic transmission. Weights listed for the tractor range from 5776 to 6460 pounds, and it is suitable for tasks involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

5776 to 6460 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

90 hp

Recorded weight

2619 kg

Transmissions

12-speed

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

Orchard/Vineyard tractorReference

Built in Rovigo, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS (2-post); Cab optional.Reference

Variants

5090GutilityReference

5090GHhigh-cropReference

5090GForchardReference

5090GVvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank152.2 LReference

Engine67.1 kWReference

John Deere 4045HAT81Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIIAReference

Power67.1 kWReference

Compression19.0:1Reference

Rated RPM2300Reference

Torque365.0 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power2.8 kWReference

Coolant capacity10.4 LReference

Coolant capacity13.0 LReference

Coolant change2000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.0 LReference

Oil change500 hReference

Transmission

12-speedReference

24-speedReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

PTO & Hydraulics

Pressure186.2 barReference

Pump flow45.0 lpmReference

Pump flow59.0 lpmReference

Total flow71.5 lpmReference

Total flow84.4 lpmReference

Total flow104.5 lpmReference

Steering flow24.6 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Rear lift2651 kgReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540/1000/groundReference

Dimensions

Wheelbase215 cmReference

Weight5776 to 6460 poundsReference

Length388 cmReference

Width200 cmReference

Height (ROPS)264 cmReference

Height (cab)243 cmReference

Shipping weight2619 kgReference

Shipping weight2930 kgReference

Front tread104 to 139 cmReference

Rear tread99 to 162 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps95 (cab)Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 14.9R28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
