Tractor · 2009Unverified

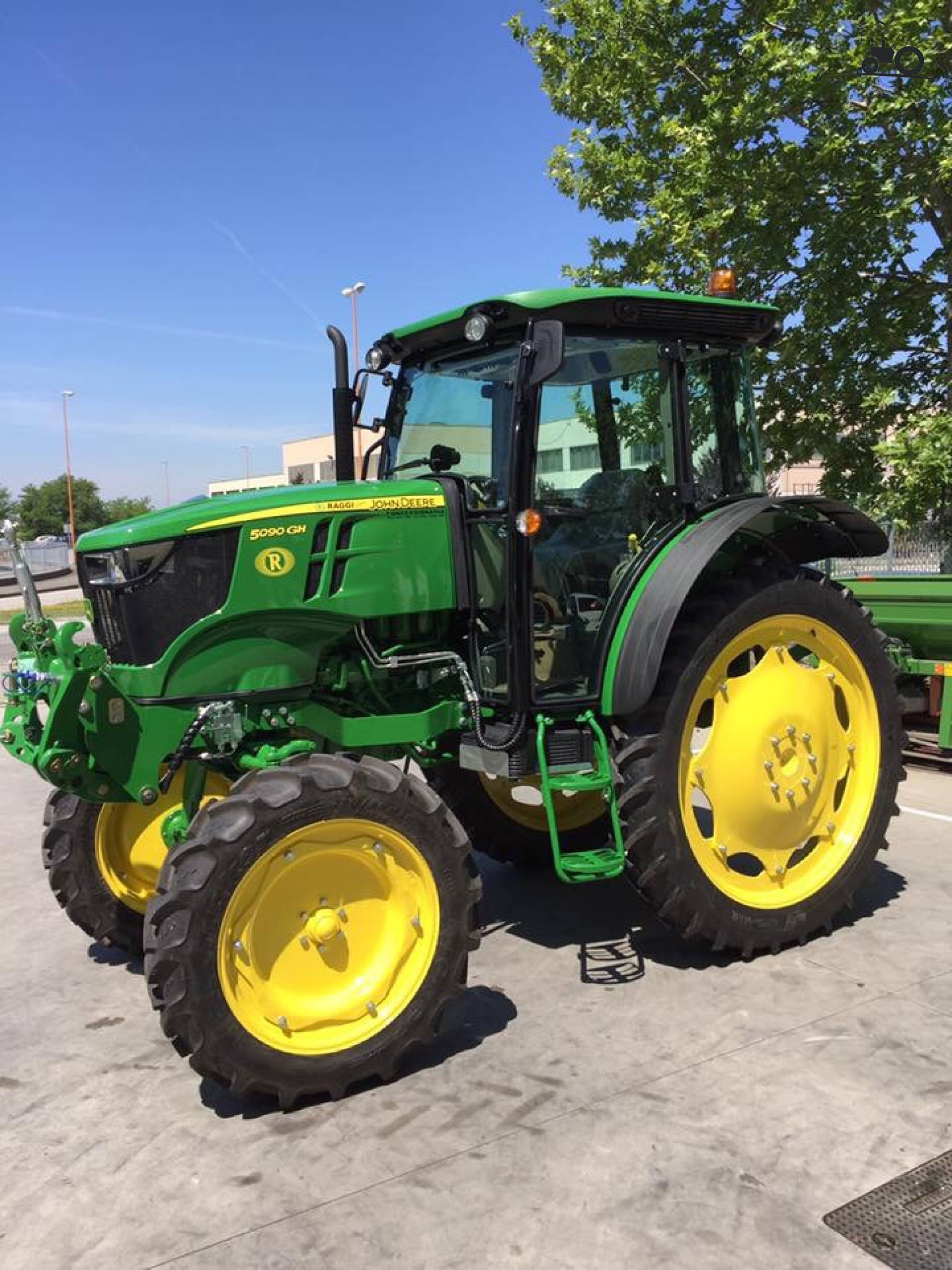

John Deere 5090GH

Name: John Deere 5090GH
Brand: John Deere

John Deere 5090GH — 5G Series · 90 hp. Reference specifications; pending source verification.

The John Deere 5090GH is a tractor model with a rated power of 90 hp, placing it within a typical power range for its class. Produced from 2009 to 2013, the 5090GH is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is listed as 7231 to 7496 pounds. This model is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

7231 to 7496 pounds

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

90 hp

Recorded weight

3279 kg

Transmissions

12-speed

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

High-Clearance tractorReference

Built in Rovigo, ItalyReference

Two-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS (4-post). Cab optional.Reference

Variants

5090GutilityReference

5090GHhigh-cropReference

5090GForchardReference

5090GVvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank96.1 LReference

Engine67.1 kWReference

John Deere 4045HAT81Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIIAReference

Power67.1 kWReference

Compression19.0:1Reference

Rated RPM2300Reference

Torque365.0 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power2.8 kWReference

Coolant capacity10.4 LReference

Coolant capacity13.0 LReference

Coolant change2000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.0 LReference

Oil change500 hReference

Transmission

12-speedReference

24-speedReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

PTO & Hydraulics

Pressure186.2 barReference

Pump flow45.0 lpmReference

Pump flow59.0 lpmReference

Steering flow24.6 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Rear lift2651 kgReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540/1000/groundReference

Dimensions

Wheelbase218 cmReference

Wheelbase220 cmReference

Weight7231 to 7496 poundsReference

Length388 cmReference

Width251 cmReference

Height (ROPS)274 cmReference

Height (cab)279 cmReference

Shipping weight3279 kgReference

Shipping weight3400 kgReference

Front tread139 to 152 cmReference

Front tread127 to 195 cmReference

Rear tread142 to 213 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps95 (cab)Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 16.9R30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
