Tractor · 2009Unverified

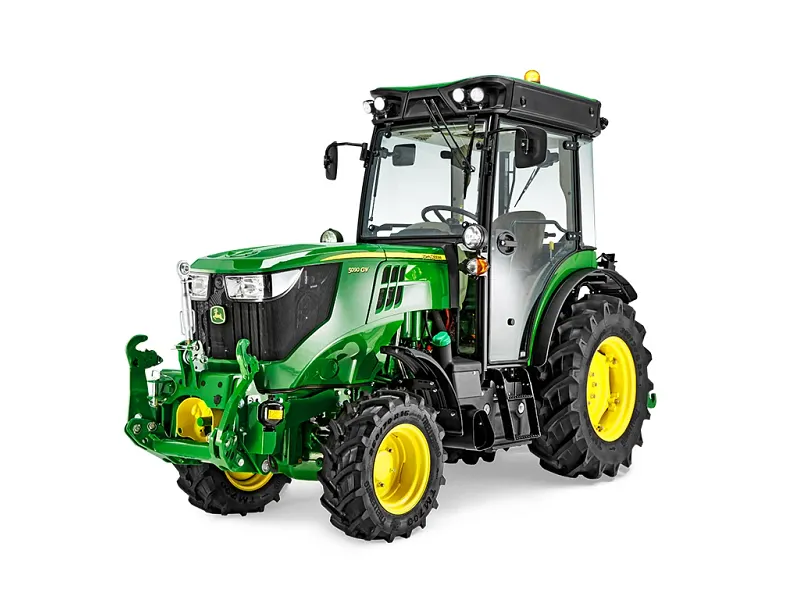

John Deere 5090GV

Name: John Deere 5090GV
Brand: John Deere

John Deere 5090GV — 5G Series · 90 hp. Reference specifications; pending source verification.

The John Deere 5090GV is a tractor with a rated power output of 90 hp, a mid-range figure for its class. It was manufactured from 2009 to 2013. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features mechanical front-wheel drive with a hydrostatic transmission. Its operating weight is listed as 5776 to 6460 pounds, and it is suitable for operations on 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

90 hp

Weight

5776 to 6460 pounds

Catalogue coverage

Variants represented

Richest spec table

117 rows

Recorded power

90 hp

Recorded weight

2619 kg

Transmissions

12-speed

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

Orchard/Vineyard tractorReference

Built in Rovigo, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS (2-post); Cab optional.Reference

Variants

5090GutilityReference

5090GHhigh-cropReference

5090GForchardReference

5090GVvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank152.2 LReference

Engine67.1 kWReference

John Deere 4045HAT81Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIIAReference

Power67.1 kWReference

Compression19.0:1Reference

Rated RPM2300Reference

Torque365.0 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power2.8 kWReference

Coolant capacity10.4 LReference

Coolant capacity13.0 LReference

Coolant change2000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.0 LReference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders4Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speed2,300 rpmReference

AspirationTurbochargedReference

Interval for engine oil change500Reference

Transmission

12-speedReference

24-speedReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Transmission TypePower ShuttleReference

forward and reverse options24Fx12RReference

Wheel Drive4WDReference

ClutchWetReference

Rear Axle Drive TypeThree point inboard planetary drivesReference

Interval for hydraulic/transmission oil change750Reference

PTO & Hydraulics

Pressure186.2 barReference

Pump flow45.0 lpmReference

Pump flow59.0 lpmReference

Total flow71.5 lpmReference

Total flow84.4 lpmReference

Total flow104.5 lpmReference

Steering flow24.6 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Rear lift2651 kgReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540/1000/groundReference

Dimensions

Wheelbase215 cmReference

Weight5776 to 6460 poundsReference

Length388 cmReference

Width170 cmReference

Height (ROPS)261 cmReference

Height (cab)241 cmReference

Shipping weight2619 kgReference

Shipping weight2930 kgReference

Front tread101 to 106 cmReference

Front tread106 to 119 cmReference

Rear tread96 to 134 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps95 (cab)Reference

Battery volts12Reference

Battery AH100Reference

Alternator size120 ampReference

Speeds

With 14.9R28 rear tires.Reference

General

Make & ModelFPTF34Reference

CreeperYesReference

Differential lockYesReference

SCV controlMechanicalReference

Drawbar categoryExtendableReference

Rear Axle TypeCarraro DrivetechReference

Rear Axle Differential LockElectrohydraulicReference

Front Axle TypeCarraro DrivetechReference

Front Axle Differential LockSelf Locking DifferentialReference

Capacities

Capacity207 cu. in.Reference

Power

Max Power90 hpReference

Rated Power90 hpReference

PTO

PTO Power79 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlElectrohydraulicReference

Rear PTO RPM540/540E rpmReference

Engine Speed on Front PTO speed1,938 rpmReference

Hydraulics

Pump Rated Output (total)126.4 l/minReference

Remote Valves4Reference

Number of rear selective control valves (SCVs)4Reference

Rear Hitch category (SAE designation)Category 1/Category 1NReference

Rear Hitch Sensing TypeTop Link Draft SensingReference

Dimensions & weight

Overall Length431.8 cmReference

Drawbar clearance226.1 mmReference

Turning radius3,627 mm\\n11.9 ft (without Brakes)Reference

Overall weight2,529.7 kgReference

Wheels & tyres

Rear Wheel Type260/70 R16Reference

Front Wheel Type6.50R16Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typeDynamic Load Sensing, Hydrostatic, Flow MeteringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
