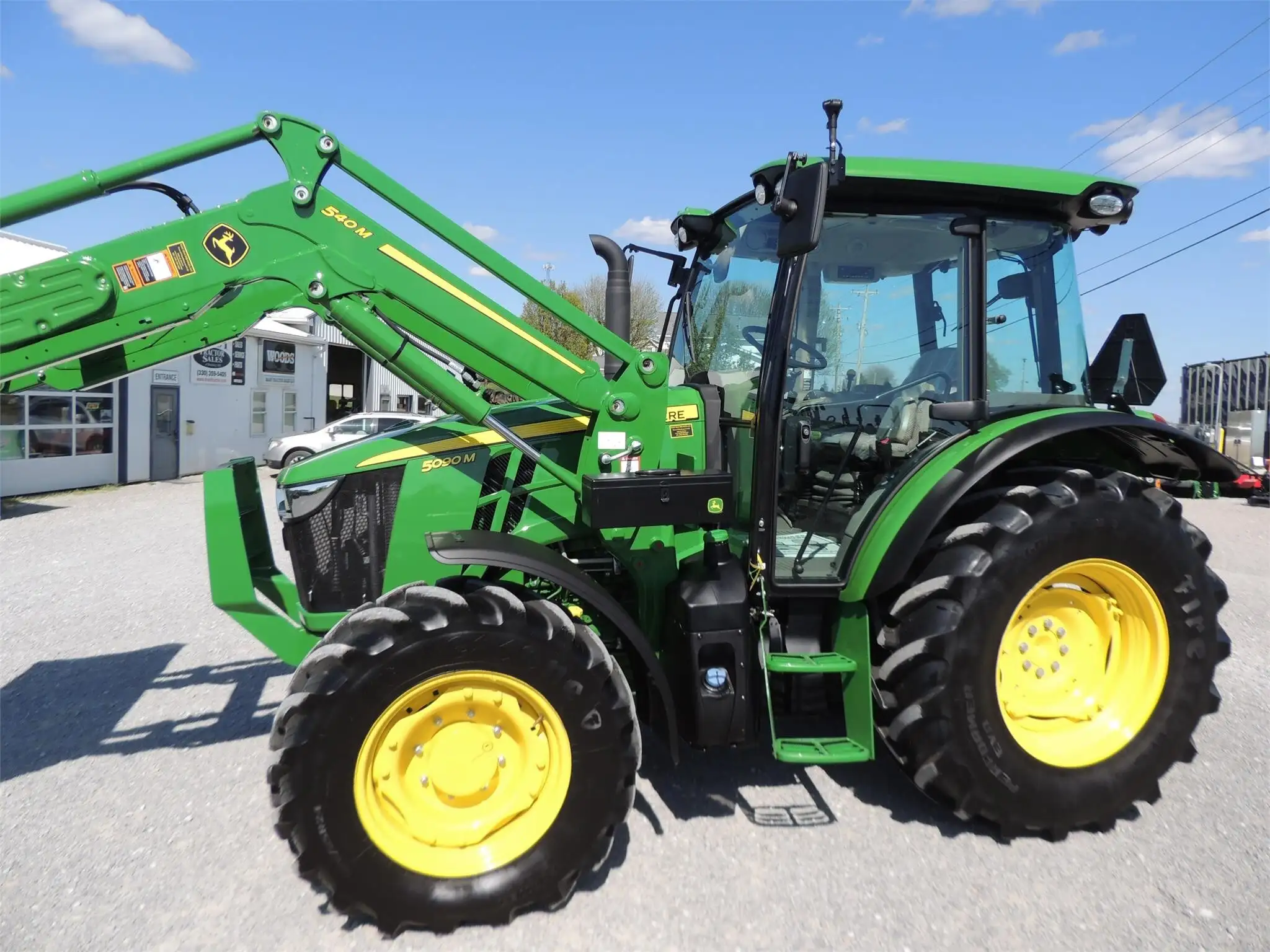

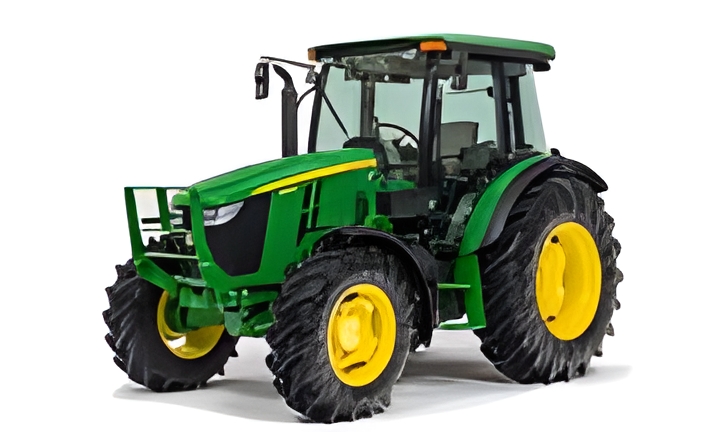

John Deere 5090M
John Deere 5090M — 5M Series · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Max power
62.4 kW
Weight
8140 to 9185 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $64,481 in 2021Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Isolated open operator station with foldable two-post ROPS. Optional premium open station features extended fenders and integral work lights. Standard and premium cabs available with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
ROPS Fuel tank112.0 LReference
ROPS Fuel tank141.2 LReference
Cab Fuel tank138.9 LReference
Cab Fuel tank170.3 LReference
Engine (gross)66.5 kWReference
John Deere 4045PWLReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 4Reference
Emission controldiesel oxidation catalyst and selective catalyst reduction (SCR) (DOC)Reference
Rated Power (gross)66.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power62.4 kWReference
Power at rated engine speed56.4 kWReference
Transmission
12-speed partially synchronizedReference
16-speed power shuttleReference
32-speed two-speed power shiftReference
TransmissionSyncShuttle PlusReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
Three gears (1-3) plus reverse (R) in four ranges (A-D). Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch.Reference
TransmissionPowerReverser PlusReference
Typetwo-speed power shiftReference
Gears32 forward and 16 reverseReference
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)62.4 kWReference
Typeopen centerReference
Pump flow69.6 lpmReference
Total flow93.5 lpmReference
Steering flow23.8 lpmReference
Rear TypeII/IReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)2340 kgReference
Rear lift (at 24"/610mm)2700 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Power at rated PTO speed58.0 kWReference
Dimensions
Wheelbase234 cmReference
Weight8140 to 9185 poundsReference
Front tire12.4R24Reference
2WD Rear tire18.4R30Reference
2WD Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
4WD Standard tires (ag)Front: 320/85R24. Rear: 460/85R30Reference
Length379 cmReference
Height (ROPS)259 cmReference
Height (cab)261 cmReference
2WD ROPS Shipping3692 kgReference
2WD Cab Shipping3891 kgReference
4WD ROPS Shipping3975 kgReference
4WD Cab Shipping4166 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 25 - 27, 2018Link: Nebraska Tractor Test 2204 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use18.2 l/hourReference
Speeds
With 480/70R28 rear tires.Reference
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward.Reference
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
