Tractor · 2008Unverified

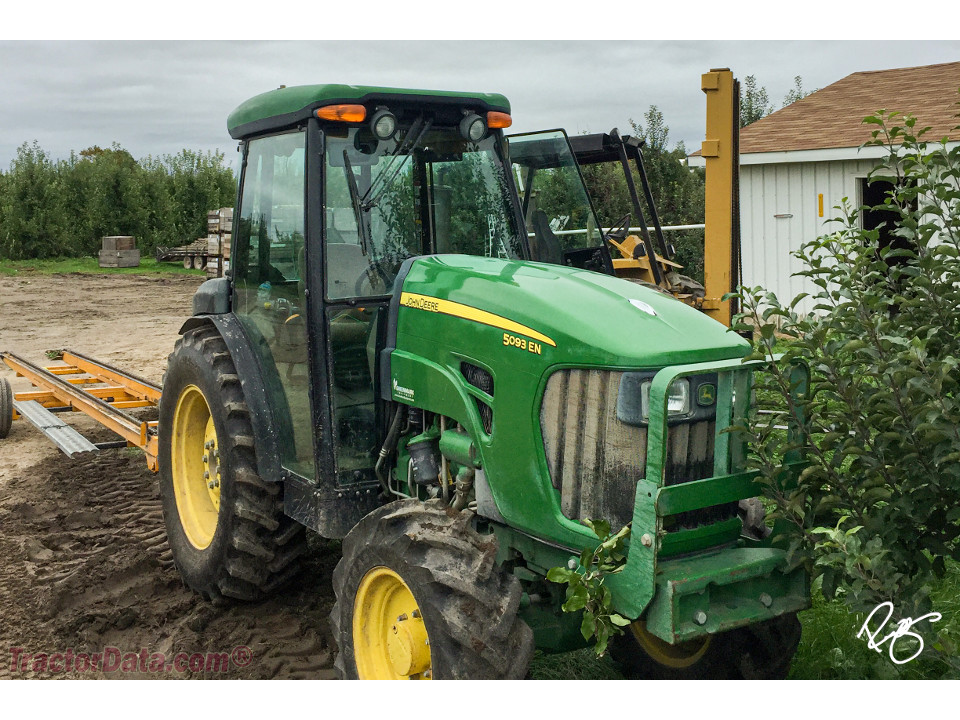

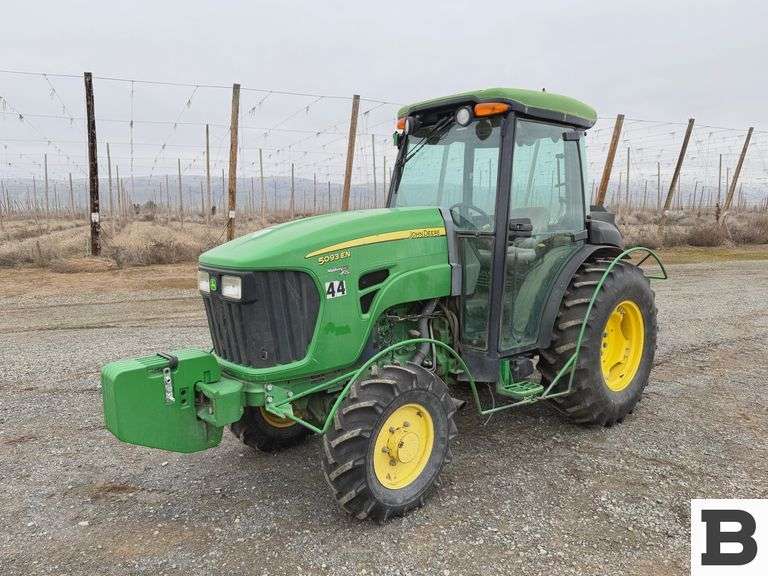

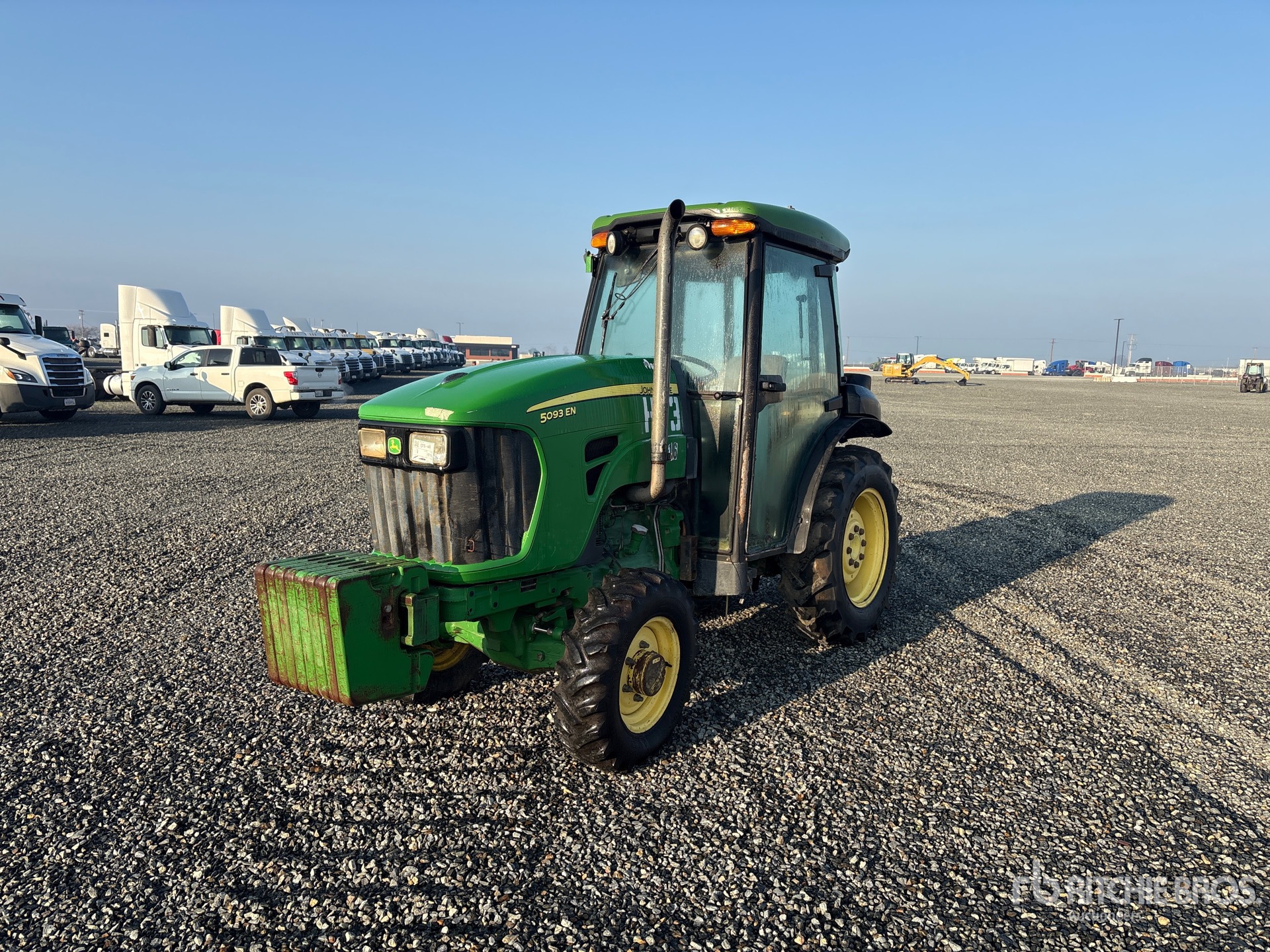

John Deere 5093EN
John Deere 5093EN — Model year 2008-20112012-2022 · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
5483 to 5837 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional.Reference
Variants
5093Eutility chassisReference
5093ENnarrow chassisReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)67.9 kWReference
John Deere 4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 2Reference
Power (gross)67.9 kWReference
Fuel systemdirect injectionReference
Compression17.6:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity8.5 LReference
Oil change300 hReference
Oil change500 h (JD PLUS-50 oil)Reference
Transmission
12-speed partially synchronized power shuttleReference
24-speed two-speed power shiftReference
TransmissionPowrReverserReference
Typepartially synchronized power shuttleReference
Gears12 forward and reverseReference
Clutchhydraulic wet discReference
Oil capacity43.5 LReference
Four gears (1-4) in the ranges (A-C) with left hand power shuttle lever. Shifts between gears are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift gears.Reference
TransmissionPowrReverser Hi/LoReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Oil capacity45.4 LReference
The Hi/Lo option adds a two-speed push button power shift to the PowrReverser transmission.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Hydraulic system43.5 LReference
Hydraulic system45.4 LReference
Typeopen centerReference
Capacity43.5 LReference
Capacity45.4 LReference
Pressure195.0 barReference
Valves2 to 3Reference
Pump flow69.6 lpmReference
Total flow94.6 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel71.9 LReference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase207 cmReference
Weight5483 to 5837 poundsReference
Length384 cmReference
Width114 cmReference
Width115 cmReference
Width125 cmReference
Clearance (front axle)26 cmReference
Shipping2487 kgReference
Shipping2647 kgReference
Shipping2550 kgReference
Shipping2623 kgReference
Steering wheel166 cmReference
5093EN Serial Numbers
Location:Tractor frame, front right side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Charging amps120 (optional)Reference
Battery CCA750Reference
Battery volts12Reference
John Deere 5093EN Height
2WD Hood136 cmReference
4WD Hood140 cmReference
ROPS245 cmReference
ROPS199 cmReference
Cab255 cmReference
Speeds
With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
