John Deere 5095M
John Deere 5095M — 5M Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Max power
63.0 kW
Weight
6591 to 8150 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$41,234 (2009 2WD ROPS)Reference
Original price$57,669 (2009 4WD cab)Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockshift-on-the-move electro-hydraulic rear differential lockReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.Reference
Variants
5095MHhigh-clearanceReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)70.8 kWReference
John Deere PowerTech M 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 3Reference
Rated Power (gross)70.8 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque504.4 NmReference
Torque RPM1600Reference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity8.3 LReference
Max power63.0 kWReference
Power at rated engine speed59.9 kWReference
Transmission
16-speed partially synchronizedReference
12-speed partially synchronizedReference
16-speed partially synchronized with power shuttleReference
32-speedReference
TransmissionSyncReverserReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference
TransmissionSyncShuttle PlusReference
Gears12 forward and 4 reverseReference
Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference
TransmissionPowrReverserReference
Typepartially synchronized with power shuttleReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
TransmissionPowrReverser PlusReference
Gears32 forward and 16 reverseReference
Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)63.0 kWReference
Hydraulic system45.0 LReference
Capacity45.0 LReference
Pressure195.0 barReference
Valves0, 2 or 3 (rear)Reference
Valves0, 2 or 3 (mid)Reference
Pump flow69.6 lpmReference
Total flow93.5 lpmReference
Oil type[-12o↔40oC]Reference
-10oF [-23oC]↑: HY-GARDReference
-10oF [-23oC]↑: JDM J20CReference
10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference
Steering flow23.8 lpmReference
Steering press.132.5 barReference
Rear Typeindependent electrohyraulicReference
Rear lift (at 24"/610mm)1630 kgReference
Rear lift (at 24"/610mm)2040 kgReference
Rear PTOindependent electrochydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000 (optional)Reference
Power at rated PTO speed61.9 kWReference
Capacities
Fuel114.7 LReference
Fuel154.0 LReference
Front hubs0.8 LReference
Front diff.5.0 LReference
Dimensions
Wheelbase217 cmReference
Weight6591 to 8150 poundsReference
Front tire11L-15Reference
Rear tire480/80R30Reference
Ag front11L-15 (2WD)Reference
Ag front12.4R24 (4WD)Reference
Ag rear480/80R30Reference
Ag front7.50-16 (2WD)Reference
Ag front9.5-24 (4WD)Reference
Ag front11.2-24 (4WD)Reference
Ag front11.2R24 (4WD)Reference
Ag front13.6R24 (4WD)Reference
Ag front230/95R32 (4WD)Reference
Ag rear14.9-28Reference
Ag rear16.9-28Reference
Ag rear16.9-30Reference
Ag rear420/90R30Reference
Ag rear15.5R38Reference
Ag rear16.9R34 (4WD)Reference
Ag rear230/95R48 (4WD)Reference
Lawn/turf front27/12LL-15 (2WD)Reference
Lawn/turf front12LL-16 (4WD)Reference
Lawn/turf front44x18-20 (4WD)Reference
Lawn/turf rear22.5LL-16.1Reference
Lawn/turf rear23.1-26Reference
Industrial front11LL-15 (2WD)Reference
Industrial front12.5/80-18 (4WD)Reference
Industrial rear19.5-24Reference
Industrial rear19.5L-24Reference
Industrial rear16.9-24Reference
4WD Clearance (front axle)45 cmReference
2WD Clearance (front axle)47 cmReference
2WD Front tread148 to 198 cmReference
4WD Front tread134 to 195 cmReference
Rear tread151 to 181 cmReference
Operating2989 kgReference
Operating3175 kgReference
Operating3515 kgReference
Operating3175 kgReference
Operating3356 kgReference
Operating3696 kgReference

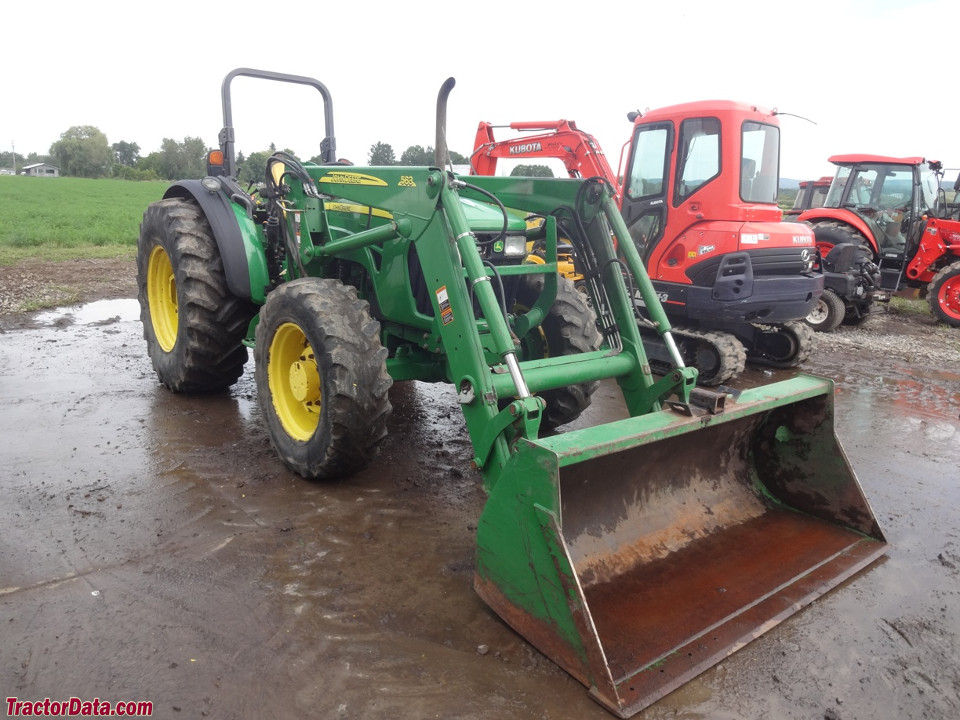

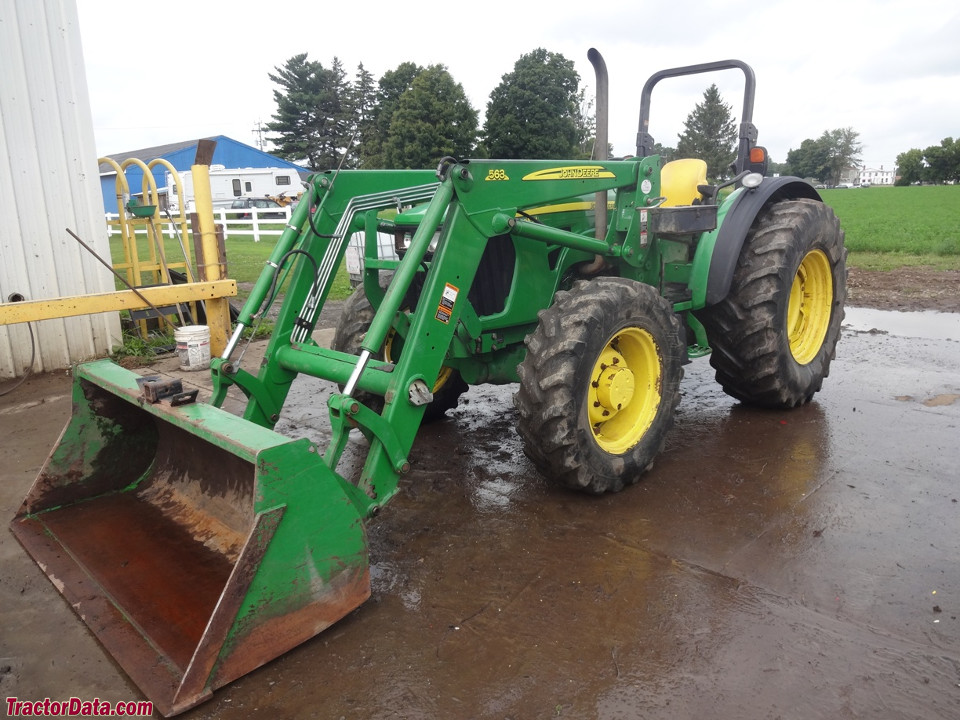

John Deere 5095M attachments
front-end loaderReference
5095M Serial Number Location
Serial number plate on the left side of the 5095M ttactor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Charging amps120 (optional)Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
Attachment overview
John Deere 553 loaderReference
John Deere 563 loaderReference
Test results
Diesel 16-speed 4WDOctober 5 - 13, 2009Link: Nebraska Tractor Test 1961 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use19.7 l/hourReference
Fuel use19.3 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
