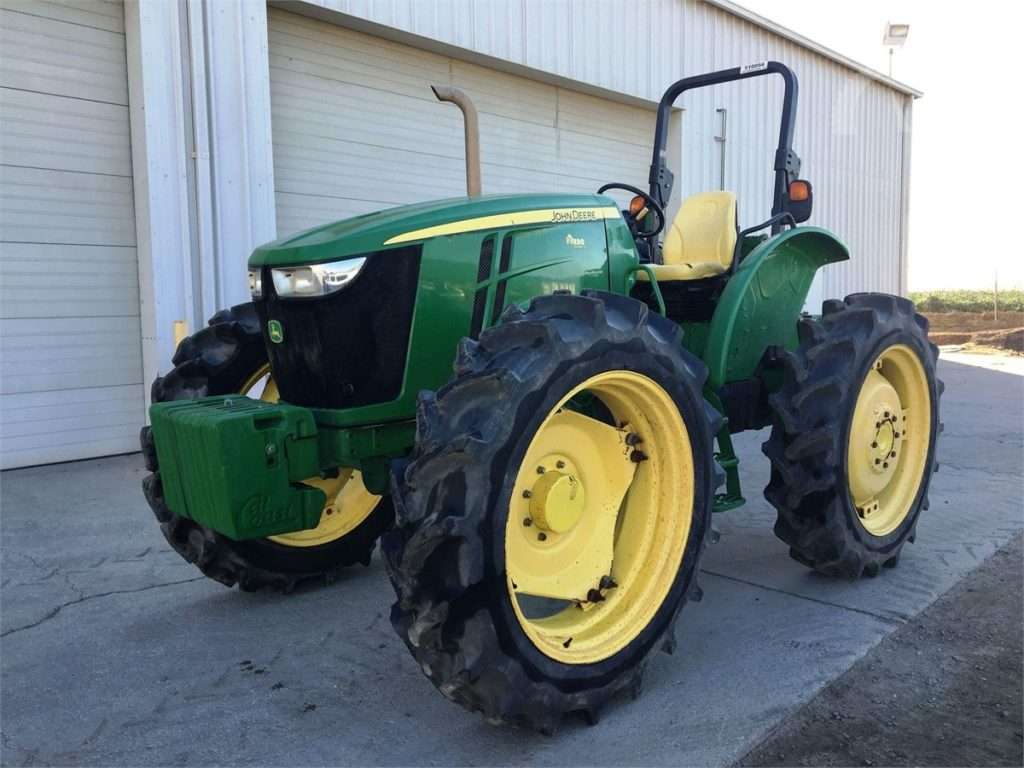

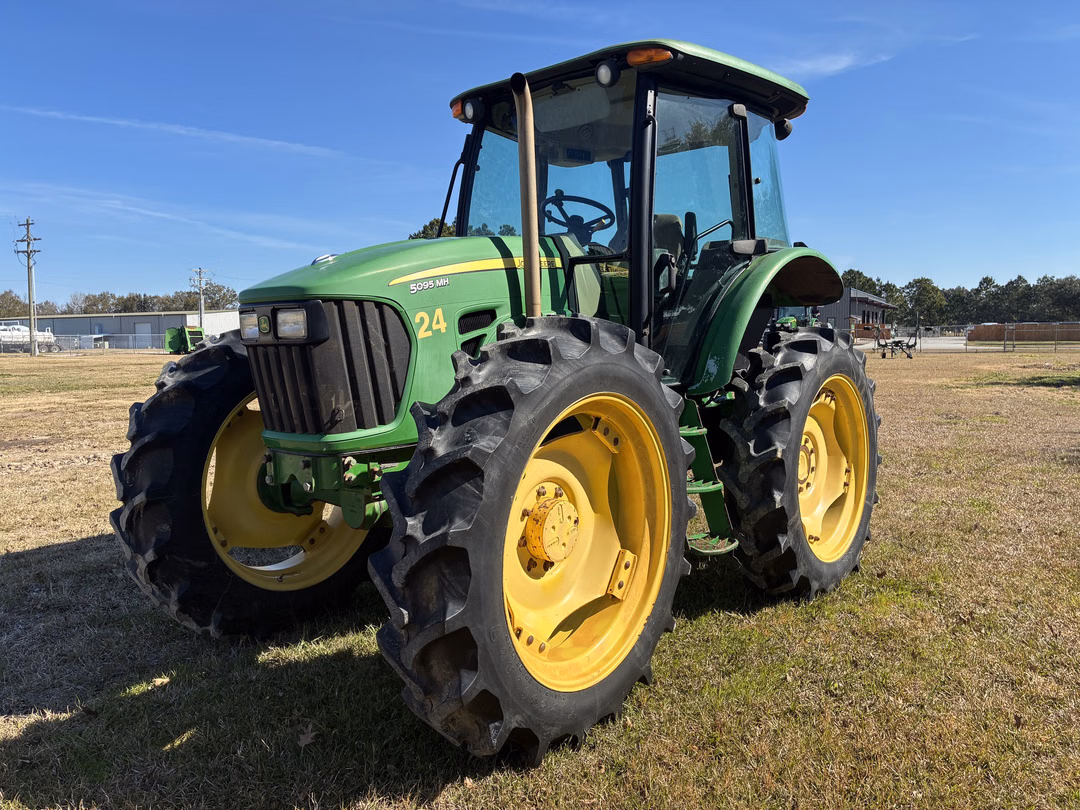

John Deere 5095MH
John Deere 5095MH — High-Clearance tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
7100 to 7800 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Augusta, Georgia, USAReference
Original price$51,710 (2010 - ROPS)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Foldable ROPS. Optional cab with heat and air conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)70.8 kWReference
John Deere PowerTech M 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (gross)70.8 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque504.4 NmReference
Torque RPM1600Reference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity8.3 LReference
Transmission
16-speed partially synchronizedReference
12-speed partially synchronizedReference
16-speed partially synchronized with power shuttleReference
32-speedReference
TransmissionSyncReverserReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference
TransmissionSyncShuttle PlusReference
Gears12 forward and 4 reverseReference
Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference
TransmissionPowrReverserReference
Typepartially synchronized with power shuttleReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
TransmissionPowrReverser PlusReference
Gears32 forward and 16 reverseReference
Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Hydraulic system45.0 LReference
Capacity45.0 LReference
Pressure195.0 barReference
Rear valves0 to 3Reference
Mid valves0 to 3Reference
Pump flow69.6 lpmReference
Total flow93.5 lpmReference
Oil type[-12o↔40oC]Reference
-10oF [-23oC]↑: HY-GARDReference
-10oF [-23oC]↑: JDM J20CReference
10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference
Steering flow23.8 lpmReference
Steering press.131.0 barReference
Rear Typeindependent electrohyraulicReference
Rear lift (at 24"/610mm)1630 kgReference
Rear lift (at 24"/610mm)2040 kgReference
Rear PTOindependent electrochydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000 (optional)Reference
Capacities
Fuel114.7 LReference
Fuel154.0 LReference
Dimensions
Wheelbase217 cmReference
Weight7100 to 7800 poundsReference
Front tire230/95R40Reference
Rear tire230/95R40Reference
Standard tires (ag)Front: 230/95R40. Rear: 230/95R40Reference
Optional tires (ag)Front: 13.6-38. Rear: 13.6-38Reference
Shipping weight3220 kgReference
Shipping weight3538 kgReference
Clearance (front axle)59 cmReference
Front tread134 to 190 cmReference
5095MH Serial Numbers
Location:Tractor frame on front left side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Charging amps120 (optional)Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
