Tractor · 1966Unverified

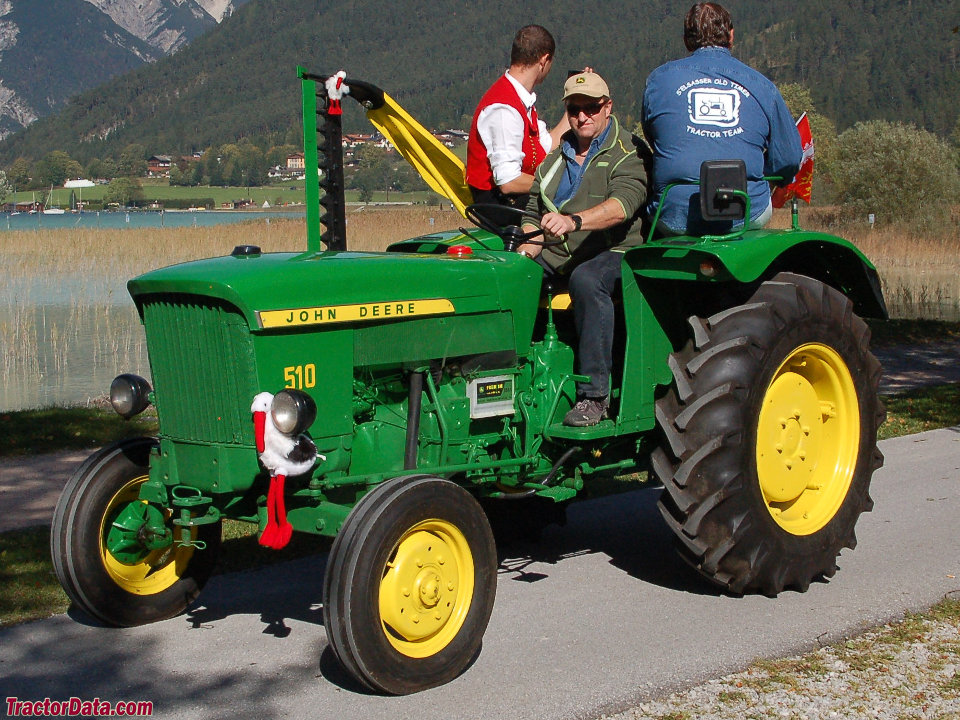

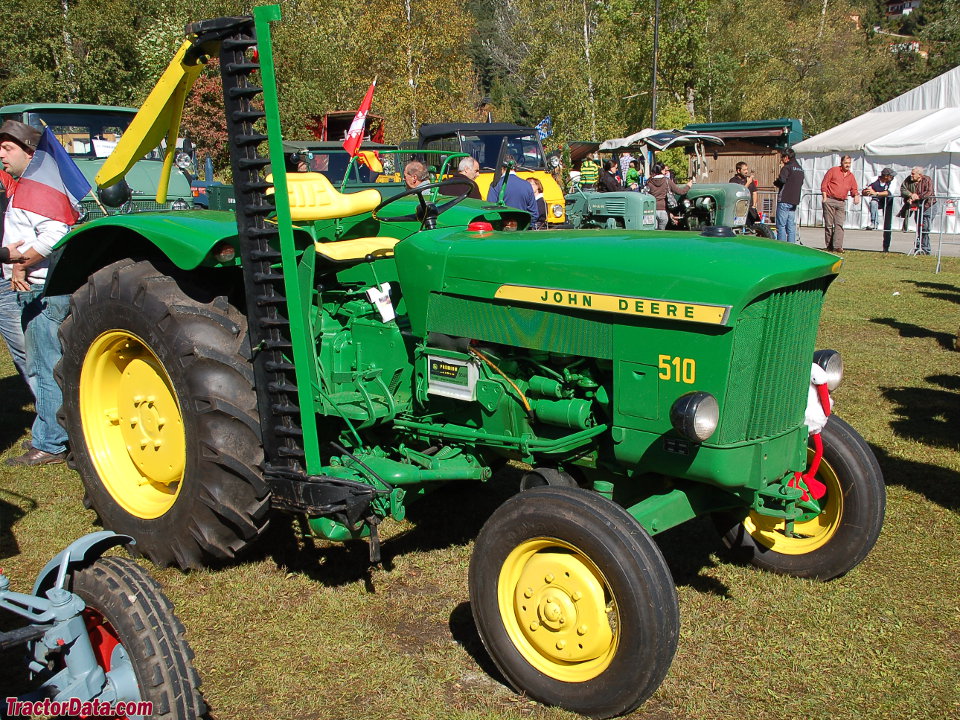

John Deere 510

Name: John Deere 510
Brand: John Deere

John Deere 510 — Utility tractor · 40 hp. Reference specifications; pending source verification.

The John Deere 510 is a tractor with a rated power output of 40 hp, categorising it as a lighter model within its class. Production of this model took place from 1966 to 1967. The tractor features a 3-cylinder diesel liquid-cooled engine and two-wheel drive with a 10-speed gearbox. Its operating weight is listed as 2060 kg, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

2060 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

40 hp

Recorded weight

2060 kg

Transmissions

10-speed gear

Production years

1966-1967

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two-wheel driveReference

Open operator station.Reference

Engine

John Deere 2.5L 3-cyl dieselReference

Fuel tank70.0 LReference

Engine29.5 kWReference

John DeereReference

dieselReference

3-cylinderReference

liquid-cooledReference

The engine was built in Saran, France.Reference

Displacement2.5 LReference

Bore/Stroke98 x 110 mmReference

Power29.5 kWReference

Compression16.7:1Reference

Rated RPM2400Reference

Torque137.0 NmReference

Torque RPM1300Reference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity10.9 LReference

Transmission

10-speed gearReference

TypegearReference

Gears10 forward and 3 reverseReference

Oil capacity31.0 LReference

Four gears in three ranges, plus reverse range.Reference

PTO & Hydraulics

Rear TypeII/IReference

Rear PTOliveReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2250Reference

Dimensions

Weight2060 kgReference

Front tire6.50-16Reference

Rear tire12.4/11-32Reference

Ag front6.50-16Reference

Ag rear12.4/11-32Reference

Ag rear14.9/13-28Reference

Length340 cmReference

Width179 cmReference

Height (steering wheel)167 cmReference

Ground clearance44 cmReference

Front tread124 to 175 cmReference

Rear tread127 to 177 cmReference

510 Serial Number Location

Serial number plate on the right side of the Deere 510 tractor frame, above the front axle.Reference

Speeds

With 11-32 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
