Tractor5E Series · 2024 Verified · 84%

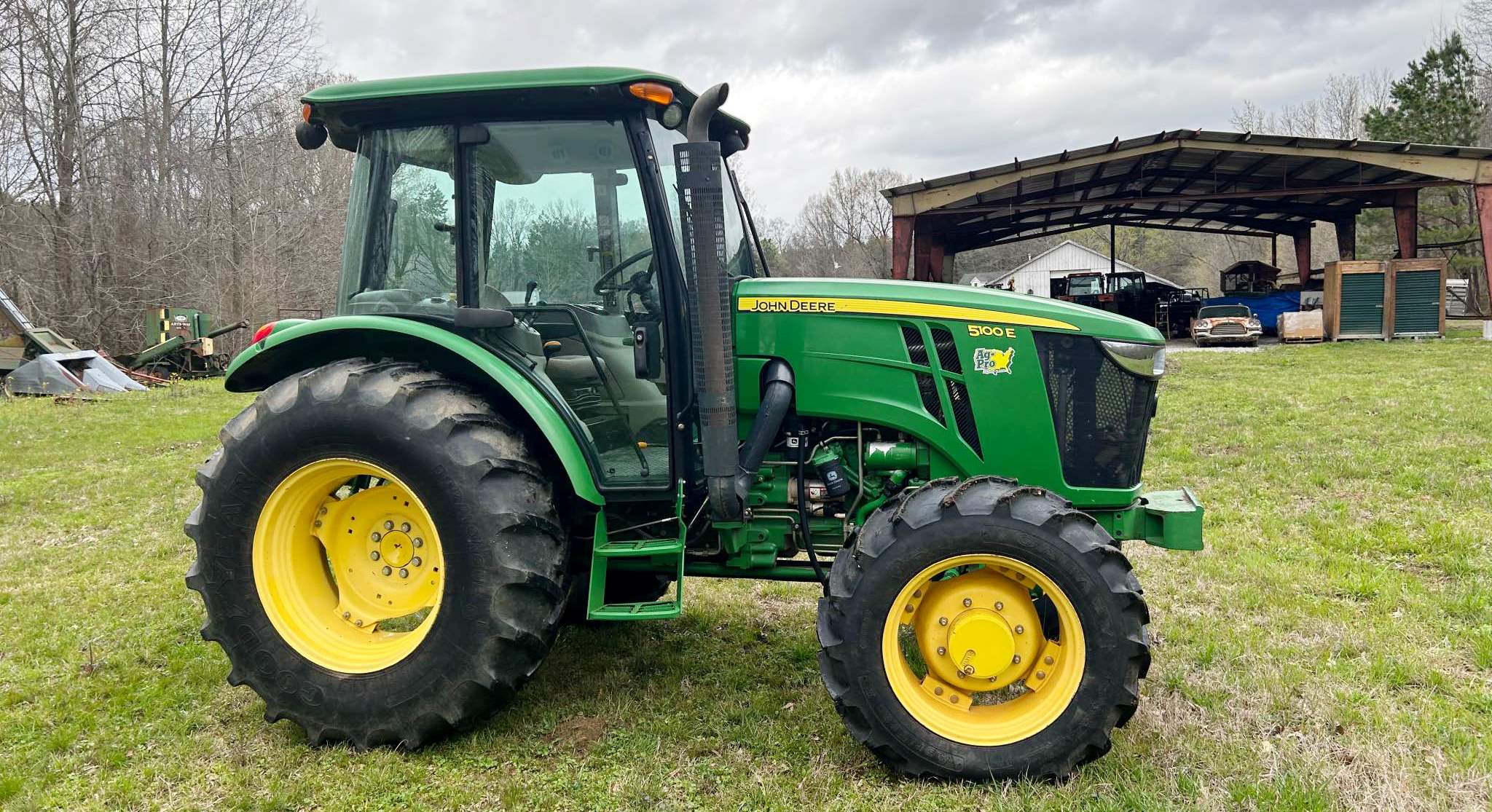

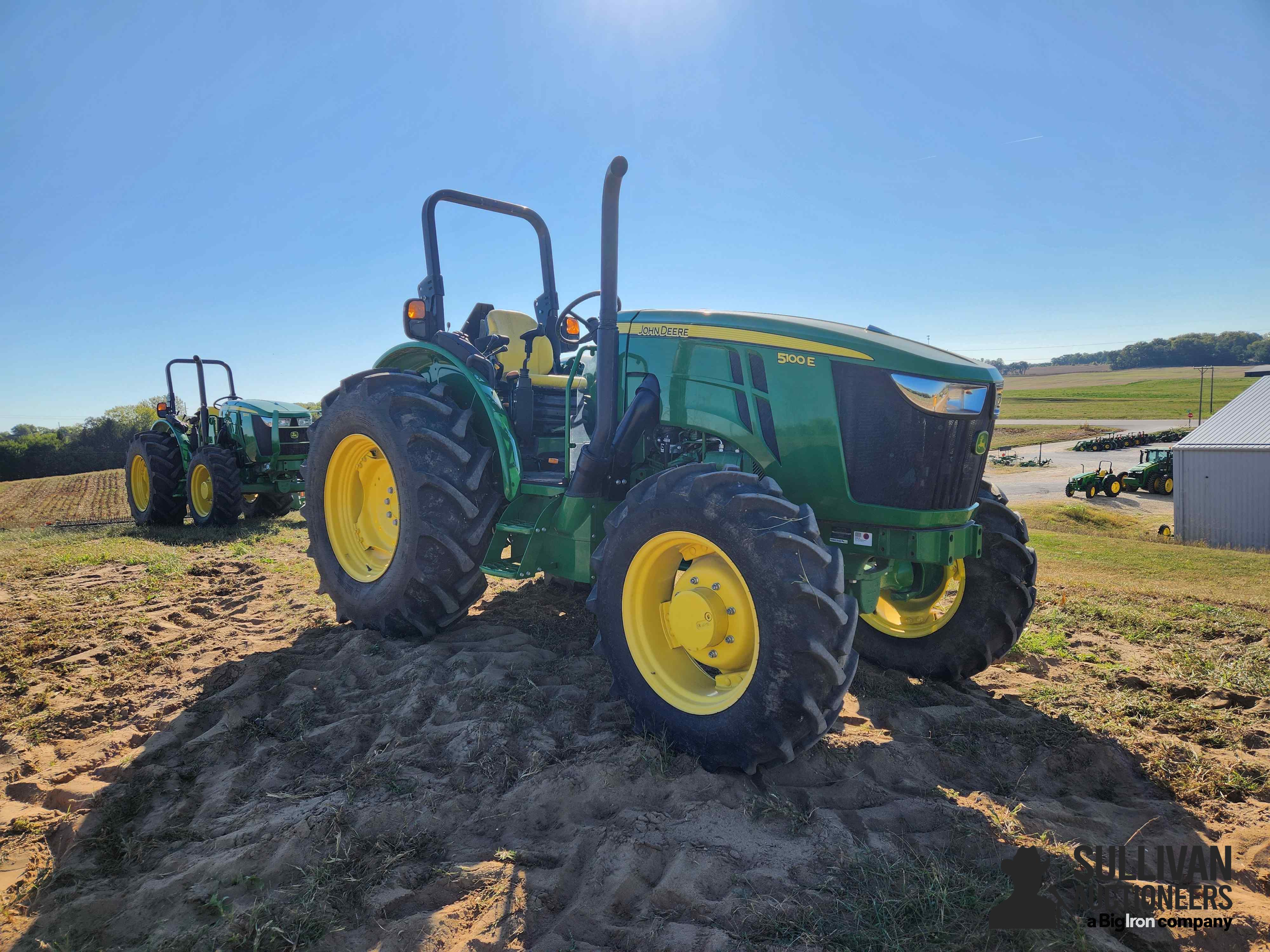

John Deere 5100E

Name: John Deere 5100E
Brand: John Deere

John Deere 5100E: 100 hp tractor — 4.5 L engine, 85 hp PTO, 1457 kg rear lift. Verified specs with sources, UK & US units.

The John Deere 5100E is a tractor rated at 100 hp — putting it around the middle of its class for power. This model was introduced in 2024. It is powered by a turbocharged diesel engine, driving through mechanical front-wheel drive. Listed weight is 3,299.9 kg, and it is aimed at jobs of around 200–800 ac. Available dimensions and performance figures follow in both unit systems.

Rated power

100 hp

Max power

102 hp

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

100 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power75 kW (100 hp)OEM

Emissions stageStage VEPA cert

Engine4.5 LDealer

Fuel TypeDieselReference

No of Cylinders4Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speedOption 1: 2,400 rpm\\nOption 2: 384 NmReference

AspirationTurbocharged and AftercooledReference

PTO & Hydraulics

Hydraulic flow60 L/minDealer

PTO power63 kW (85 hp)Dealer

Rear lift capacity1457 kgReference

Dimensions

Wheelbase2300 mmDealer

Capacities

Fuel tank95 LDealer

Capacity276 cu. in.Reference

Diesel exhaust fluid (DEF) tank12.0 LReference

General

Make & ModelNJDXL04.5,315Reference

CreeperNot availableReference

SCV controlJoystick: MechanicalReference

Drawbar categoryCategory 2Reference

Drawbar Maximum vertical load1,450.1 kgReference

Rear Axle TypeFlangeReference

Front Axle TypeMechanical Front Wheel Drive (MFWD)Reference

DisplayAutomotive-style light-emitting diode (LED) instrument clusterReference

Country of manufacturerSaltillo, MexicoReference

Precision AgricultureAvailable (Remote diagnostics)\\nJDLink™ (Telematic)Reference

Working lightsHalogenReference

Type of headlight bulbHalogenReference

Type of beacon bulbKit: HalogenReference

Power

Max Power102 hpReference

Power boostAt 2,200 rpm: 2 percentReference

PTO

Rear PTO PowerAvailableReference

Rear PTO ControlElectrohydraulicReference

Rear PTO RPM540/540E/1,000 rpmReference

Engine Speed on Front PTO speed2,400 rpmReference

Transmission

Transmission TypePower ShuttleReference

forward and reverse options24F/12RReference

Wheel DriveMFWDReference

ClutchWetReference

Rear Axle Drive TypeInboard planetaryReference

Hydraulics

Pump Rated Output (total)85.1 l/minReference

Remote Valves6Reference

Number of rear selective control valves (SCVs)ThreeReference

Rear Hitch category (SAE designation)Category 2; convertible to 1Reference

Rear Hitch Sensing TypeTop linkReference

Dimensions & weight

Turning radius3.5 mReference

Overall weight3,299.9 kgReference

Wheels & tyres

Rear Wheel TypeMFWD: 18.4-30 R1 BiasReference

Rear wheel tread rangeMFWD: front: 1,340-1,904 mm\\n52.8-75.0 in.Reference

Operator station

Cab AvailabilityAvailableReference

Cab Noise level78 dBAReference

Cab Seat TypeStandard: Mechanical\\nOptional for Cab: Air RideReference

Seat SuspensiontrueReference

Electrical

Alternator size90 ampReference

Battery options12 VReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
