Tractor · 2009Unverified

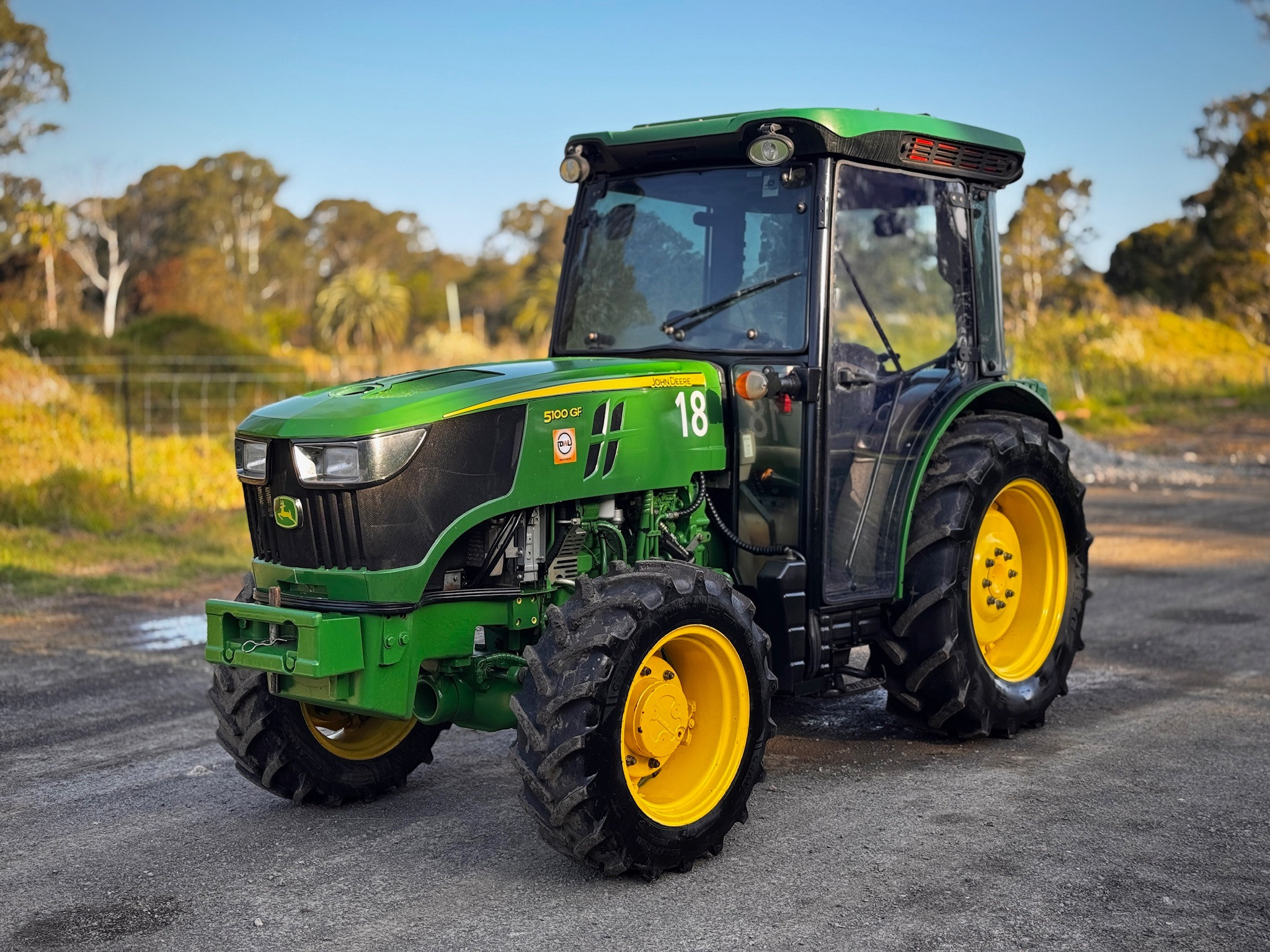

John Deere 5100GF

Name: John Deere 5100GF
Brand: John Deere

John Deere 5100GF — 5G Series · 100 hp. Reference specifications; pending source verification.

The John Deere 5100GF is a tractor model, rated at 100 hp, which places it in the middle of its class in terms of power. Manufactured from 2009 to 2013, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, driving through mechanical front-wheel drive with a hydrostatic transmission. The listed weight of the 5100GF is 5776 to 6460 pounds, and it is intended for use on areas of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

100 hp

Weight

5776 to 6460 pounds

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

100 hp

Recorded weight

2619 kg

Transmissions

12-speed

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

Orchard/Vineyard tractorReference

Built in Rovigo, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS (2-post); Cab optional.Reference

Variants

5100GForchardReference

5100GVvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank152.2 LReference

Engine74.6 kWReference

John Deere 4045HAT82Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIIAReference

Power74.6 kWReference

Compression19.0:1Reference

Rated RPM2300Reference

Torque375.1 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power2.8 kWReference

Coolant capacity10.4 LReference

Coolant capacity13.0 LReference

Coolant change2000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.0 LReference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Emissions complianceStage IIIAReference

Engine torque at rated speed125.5 kgReference

Bore and stroke4.19x5.00 inchesReference

Compression ratio19.0:1Reference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

12-speedReference

24-speedReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Transmission TypeSync ShuttleReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

Pressure186.2 barReference

Pump flow45.0 lpmReference

Pump flow59.0 lpmReference

Total flow71.5 lpmReference

Total flow84.4 lpmReference

Total flow104.5 lpmReference

Steering flow24.6 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Rear lift2651 kgReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540/1000/groundReference

Dimensions

Wheelbase215 cmReference

Weight5776 to 6460 poundsReference

Length388 cmReference

Width200 cmReference

Height (ROPS)264 cmReference

Height (cab)243 cmReference

Shipping weight2619 kgReference

Shipping weight2930 kgReference

Front tread104 to 139 cmReference

Rear tread99 to 162 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps95 (cab)Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 14.9R28 rear tires.Reference

Capacities

Capacity275.5 ciReference

Crankcase oil volume8.5 qtsReference

Power

Max Power100 hpReference

PTO

Rear PTO PowerAvailableReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)27.6 gpmReference

Maximum operating pressure2,700 psiReference

Steering & Implements flow6.5 gpm (15.6 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity2,651.2 kgReference

General

SCV controljoystickReference

Rollover protective structureROPS (2-post)Reference

Country of manufacturerItalyReference

Dimensions & weight

Height Over ROPS264.2 cmReference

Height Over Cab243.8 cmReference

Overall Length388.6 cmReference

Overall Width200.7 cmReference

Overall weight2,930.2 kgReference

Wheels & tyres

Rear wheel tread range39 to 64 inchesReference

Front Wheel tread range41 to 55 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
