Tractor · 2016Unverified

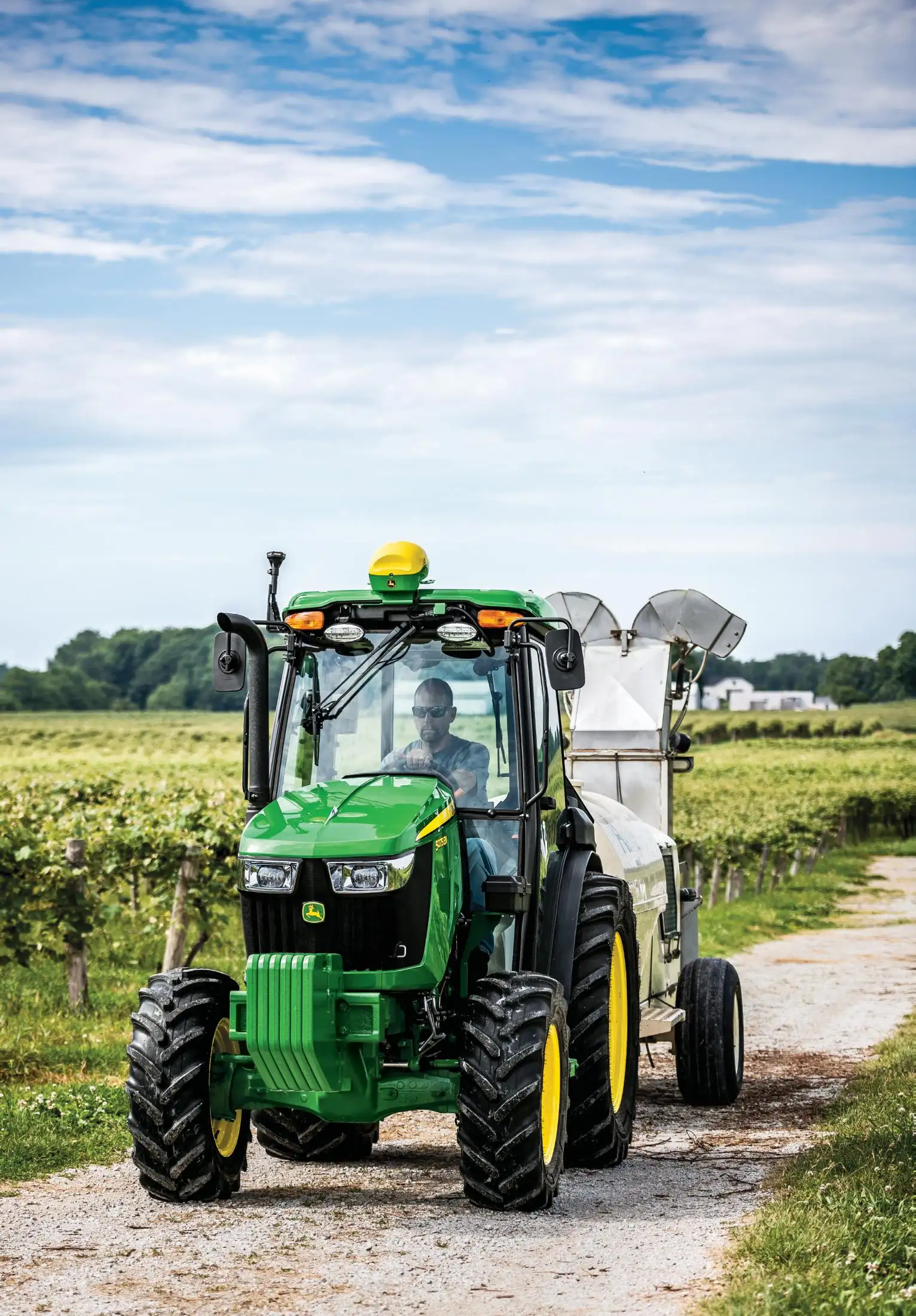

John Deere 5100GN

Name: John Deere 5100GN
Brand: John Deere

John Deere 5100GN — 5G Series · 100 hp. Reference specifications; pending source verification.

The John Deere 5100GN is a tractor model rated at 100 hp, positioning it at the middle of its class in terms of power output. Manufactured in 2016, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a 24-speed gearbox. Its weight ranges from 5566 to 6558 pounds. The 5100GN is suitable for tasks covering approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

100 hp

Weight

5566 to 6558 pounds

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

100 hp

Transmissions

24-speed

Production years

2016-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectrohydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable mid-mount ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank73.1 LReference

Fuel tank101.4 LReference

Engine (gross)74.6 kWReference

FPTReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Rated Power (gross)74.6 kWReference

Cooling systemviscous fanReference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Emissions complianceFinal Tier 4Reference

Engine torque at rated speed2,300 rpmReference

AspirationTurbochargedReference

Interval for engine oil change500Reference

Transmission

24-speedReference

12-speedReference

TransmissionPowrReverserReference

Gears24 forward and 12 reverseReference

Clutchwet discReference

Four gears (1-4) in three ranges (A-C) with push-button high-low shift and power shuttle.Reference

TransmissionSyncReverserReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in three ranges (A-C) with synchronized shuttle.Reference

Transmission TypePower ShuttleReference

forward and reverse options24Fx12RReference

Wheel Drive4WDReference

Rear Axle Drive TypeThree point inboard planetary drivesReference

Interval for hydraulic/transmission oil change750Reference

PTO & Hydraulics

Typeopen centerReference

Rear valves0 to 4Reference

Mid valves0 to 4Reference

Pump flow66.6 lpmReference

Pump flow29.9 lpmReference

Total flow96.5 lpmReference

Total flow126.4 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Controlcenter link draft sensingReference

Rear lift (at ends)2590 kgReference

Rear lift (at ends)3099 kgReference

Rear Armsfixed ball endsReference

Rear Armsadjustable ball endsReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Clutchhydraulic wet discReference

Rear PTO Type540/540EReference

Dimensions

Weight5566 to 6558 poundsReference

Width125 cmReference

Flange rear axle972 mmReference

2WD ROPS2524 kgReference

4WD ROPS2659 kgReference

2WD Cab2844 kgReference

4WD Cab2974 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Alternator size120 ampReference

General

Make & ModelFPTF34Reference

CreeperYesReference

SCV controlMechanicalReference

Drawbar categoryExtendableReference

Rear Axle TypeCarraro DrivetechReference

Rear Axle Differential LockElectrohydraulicReference

Front Axle TypeCarraro DrivetechReference

Front Axle Differential LockSelf Locking DifferentialReference

Capacities

Capacity207 cu. in.Reference

Power

Max Power100 hpReference

Rated Power100 hpReference

PTO

PTO Power87 hpReference

Rear PTO ControlElectrohydraulicReference

Rear PTO PowerAvailableReference

Rear PTO RPM540/540E rpmReference

Engine Speed on Front PTO speed1,938 rpmReference

Hydraulics

Pump Rated Output (total)126.4 l/minReference

Remote Valves4Reference

Number of rear selective control valves (SCVs)4Reference

Rear Hitch category (SAE designation)Category 1/Category 2Reference

Rear Hitch Sensing TypeTop Link Draft SensingReference

Dimensions & weight

Wheelbase2,098 mmReference

Overall Length4,319 mmReference

Drawbar clearance254 mmReference

Turning radius11.9\\r\\n11.9 ft ft (without Brakes)Reference

Overall weight2,659.9 kgReference

Wheels & tyres

Rear Wheel Type280/70 R18Reference

Front Wheel Type7.50R16Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionMechanicalReference

Steering & brakes

Steering typeDynamic Load Sensing, Hydrostatic, Flow MeteringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
