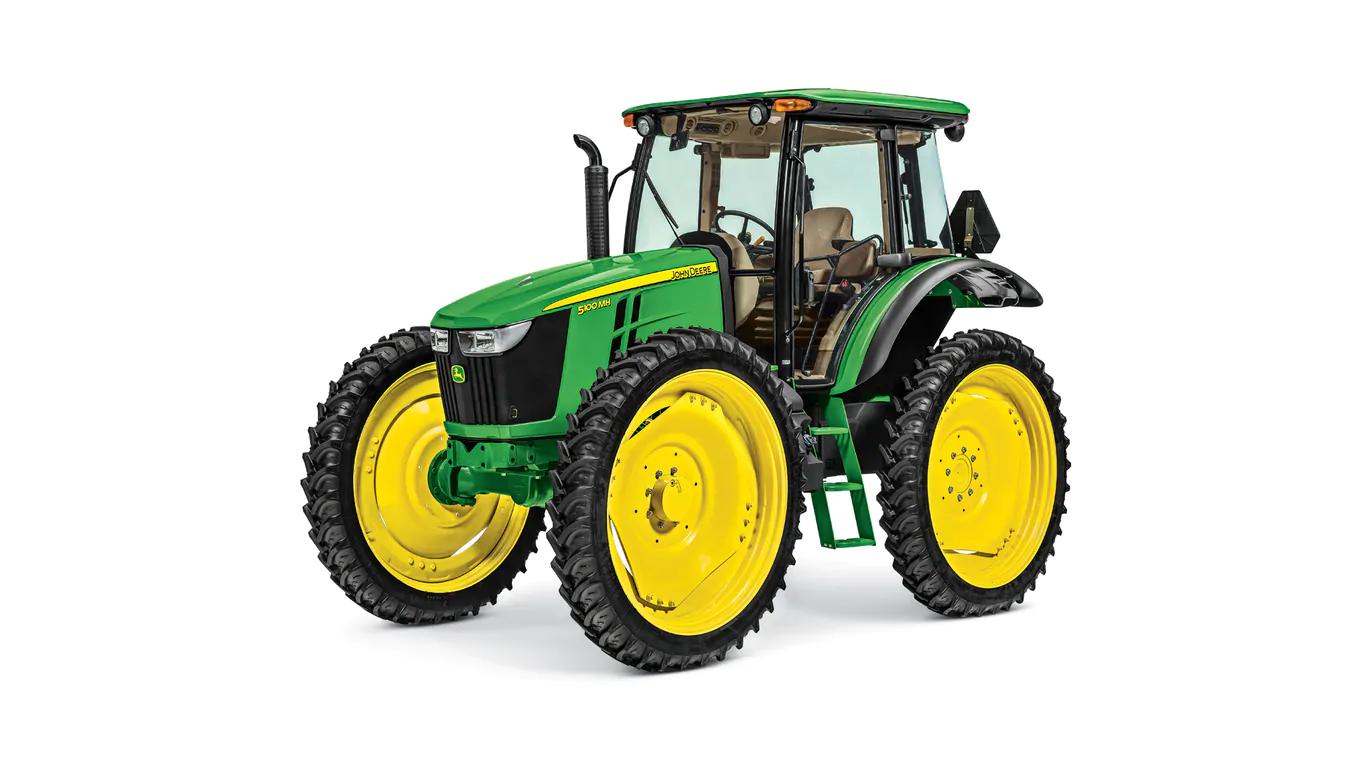

John Deere 5100MH
John Deere 5100MH — Model year 2012-20132014-2024 · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8300 to 9300 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)74.6 kWReference
John DeereReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Emission controlInterim Tier IVReference
Rated Power (gross)74.6 kWReference
Rated RPM2200Reference
Idle RPM900-2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.9 LReference
Coolant capacity18.9 LReference
Transmission
12-speedReference
16-speedReference
TransmissionSyncShuttle PlusReference
Gears12 forward and 4 reverseReference
Four gears (1-4) in three ranges (A-C), plus reverse range. Synchronized gear shifts and synchronized forward/reverse shifting.Reference
TransmissionPowrReverserReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear shifts and ranges C/D shifts are synchronized. Power shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Pressure200.0 barReference
SCV flow69.6 lpmReference
Total flow93.5 lpmReference
Steering flow23.8 lpmReference
Steering press.134.5 barReference
Rear TypeIIReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Engine RPM540@2100Reference
Engine RPM540E@1645Reference
Capacities
Fuel140.0 LReference
Dimensions
Wheelbase230 cmReference
Weight8300 to 9300 poundsReference
Front tire230/95R40Reference
Rear tire230/95R40Reference
Ag front230/95R40Reference
Ag rear230/95R40Reference
ROPS Shipping weight3764 kgReference
Cab Shipping weight4218 kgReference
Clearance (front axle)59 cmReference
Flange rear axleReference
Steering wheel195 cmReference
5100MH Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference
John Deere 5100MH Height
Hood190 cmReference
ROPS279 cmReference
Cab281 cmReference
