Tractor · 2009Unverified

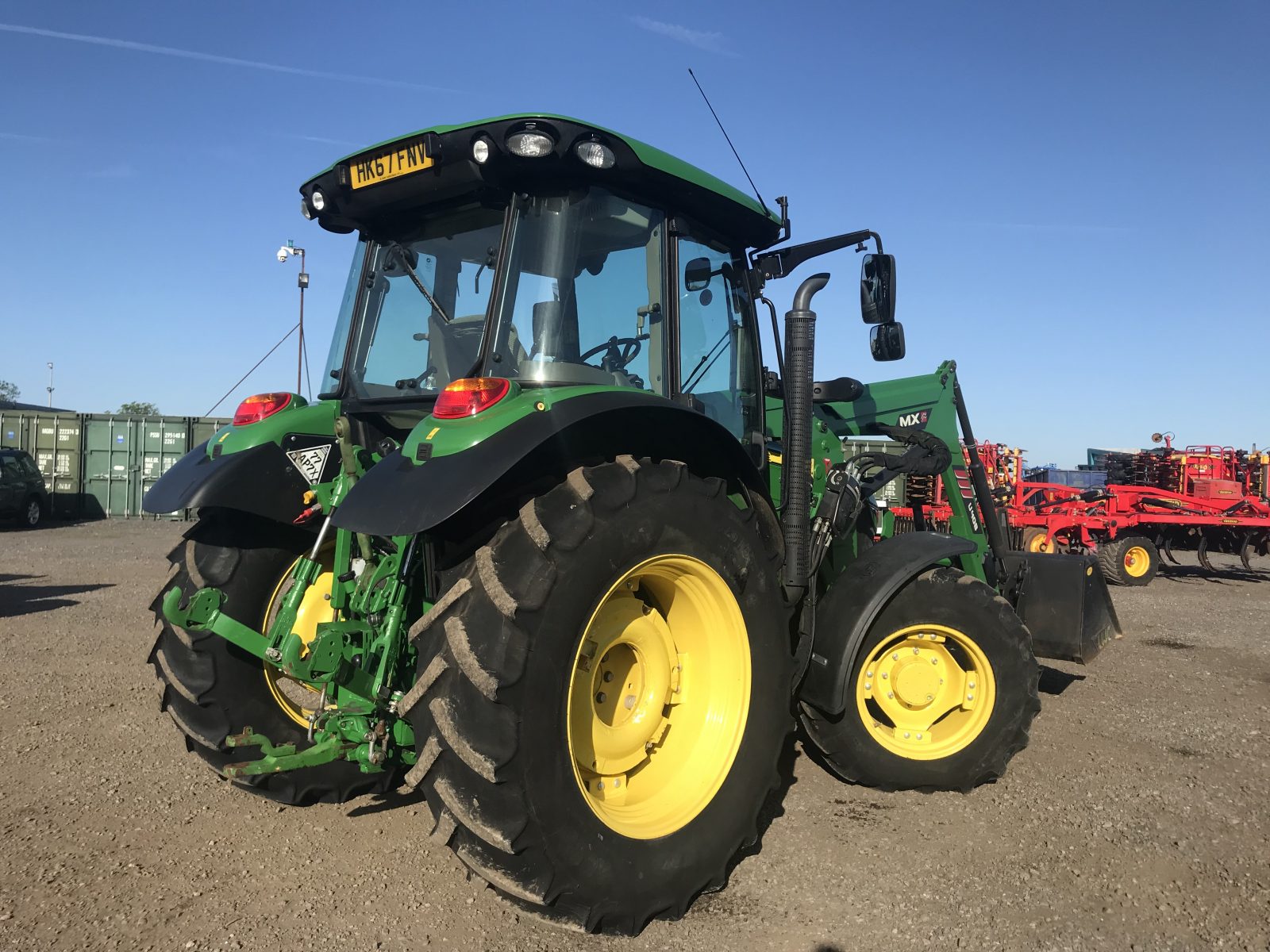

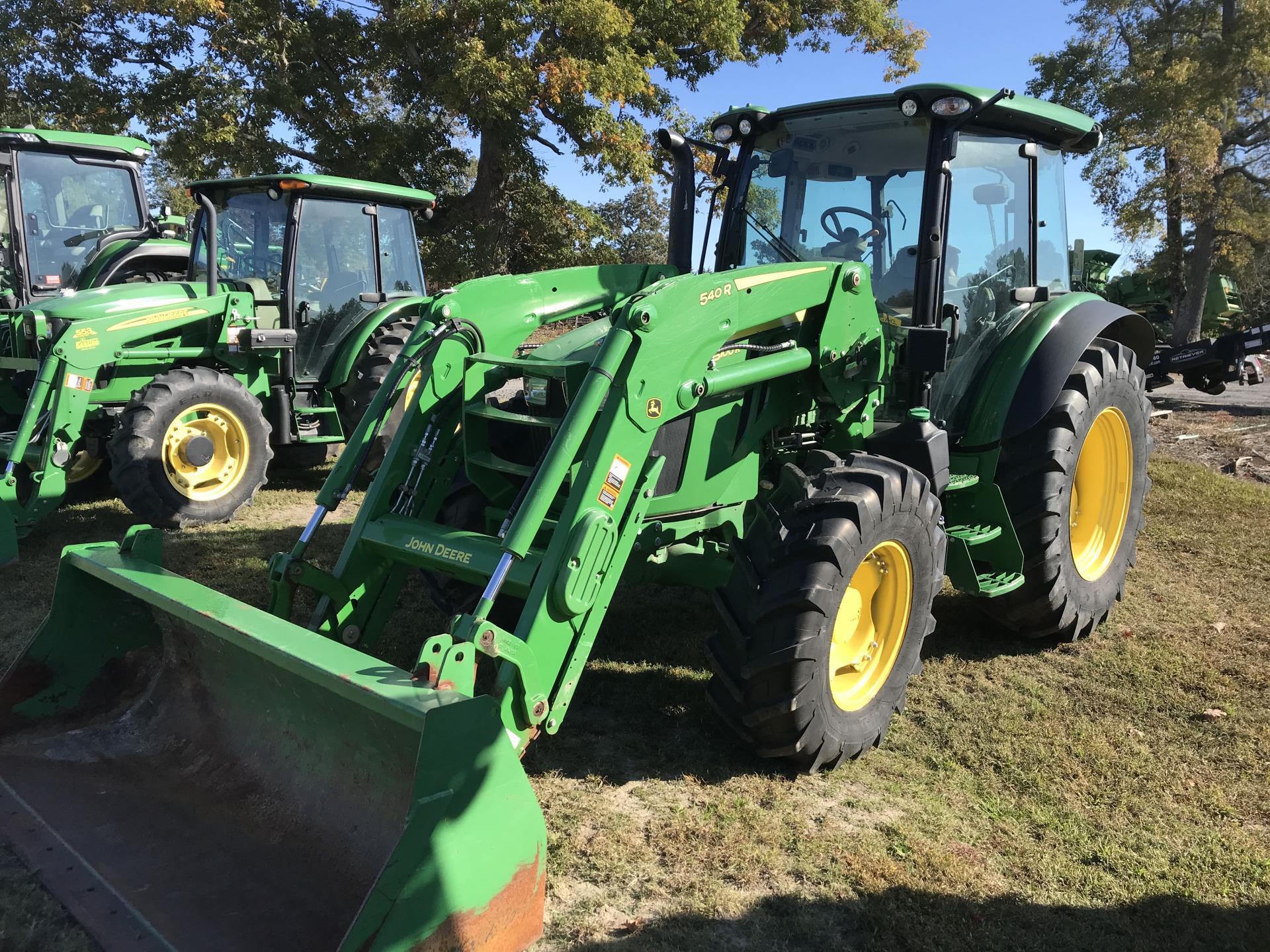

John Deere 5100R

Name: John Deere 5100R
Brand: John Deere

John Deere 5100R — Model year 2009-20162017-2025 · 87 hp. Reference specifications; pending source verification.

The John Deere 5100R is a tractor with a rated power output of 87 hp, positioning it within the middle of its class. Manufactured from 2009 to 2025, it features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a powershift transmission. The listed weight of the 5100R is 3700 kg, with a suitable working capacity for jobs of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Weight

3700 kg

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

87 hp

Recorded weight

3700 kg

Transmissions

16-speed four-speed power shuft

Production years

2009-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard. Optional air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank129.8 LReference

Fuel tank149.9 LReference

Engine74.6 kWReference

John Deere 4045HL284Reference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier III/Stage IIIaReference

Power74.6 kWReference

Fuel systemhigh-pressure common railReference

Rated RPM2300Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Oil capacity19.5 LReference

Oil change500 hReference

Coolant capacity28.0 LReference

Coolant change1500 hReference

Transmission

16-speed four-speed power shuftReference

32-speed creeperReference

TransmissionPowrQuad PlusReference

Typefour-speed power shuftReference

Gears16 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever.Reference

TransmissionAutoQuad PlusReference

Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. Programmable automatic gear shifting.Reference

TransmissionPowerQuad Plus with underdriveReference

TypecreeperReference

Gears32 forward and reverseReference

TransmissionAutoQuad Plus with underdriveReference

PTO & Hydraulics

PTO (claimed)64.9 kWReference

Typeload sensing pressure compensatedReference

Pressure200.0 barReference

Valvesup to 3Reference

Total flow56.0 lpmReference

Total flow65.1 lpmReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@2097Reference

Engine RPM540E@1700Reference

Engine RPM1000@2074Reference

Front PTO Type1000Reference

Dimensions

Wheelbase225 cmReference

Weight3700 kgReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length394 cmReference

Width217 cmReference

Height (cab)259 cmReference

Height (cab)254 cmReference

Shipping weight3700 kgReference

Max weight6599 kgReference

Ground clearance34 cmReference

John Deere 5100R attachments

front-end loaderReference

5100R Serial Numbers

Location:Right side of tractor frame, above the front axle.Reference

Attachment overview

John Deere 533 loaderReference

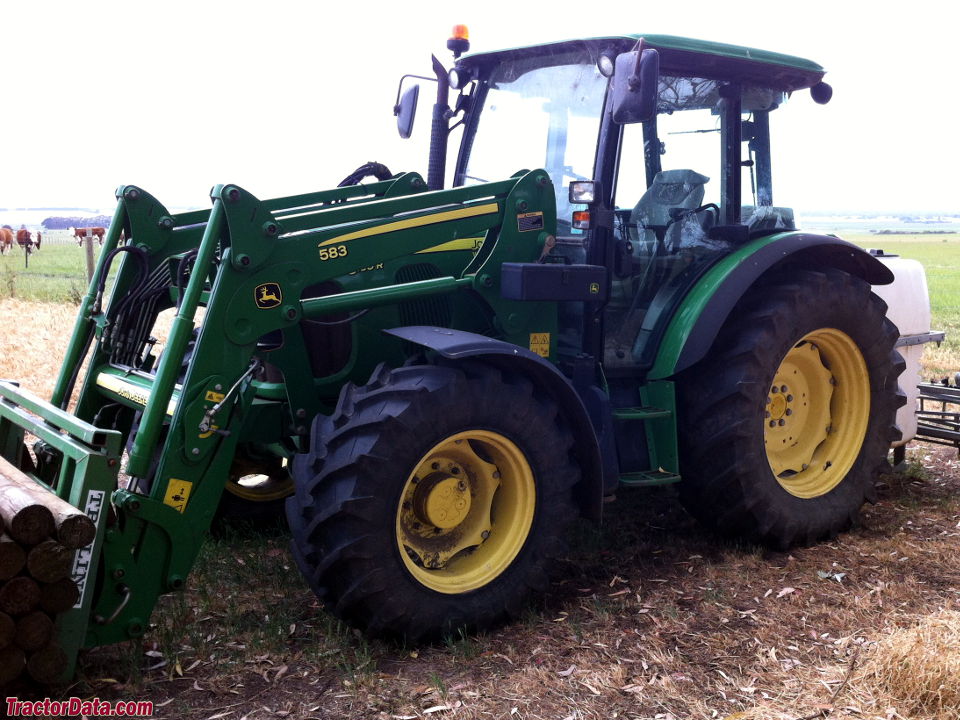

John Deere 583 loaderReference

John Deere 633 loaderReference

Speeds

With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
